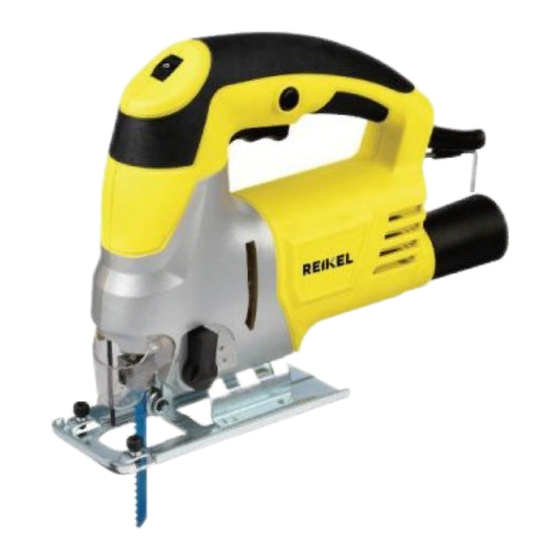

Summary of Contents for Reikel JS616

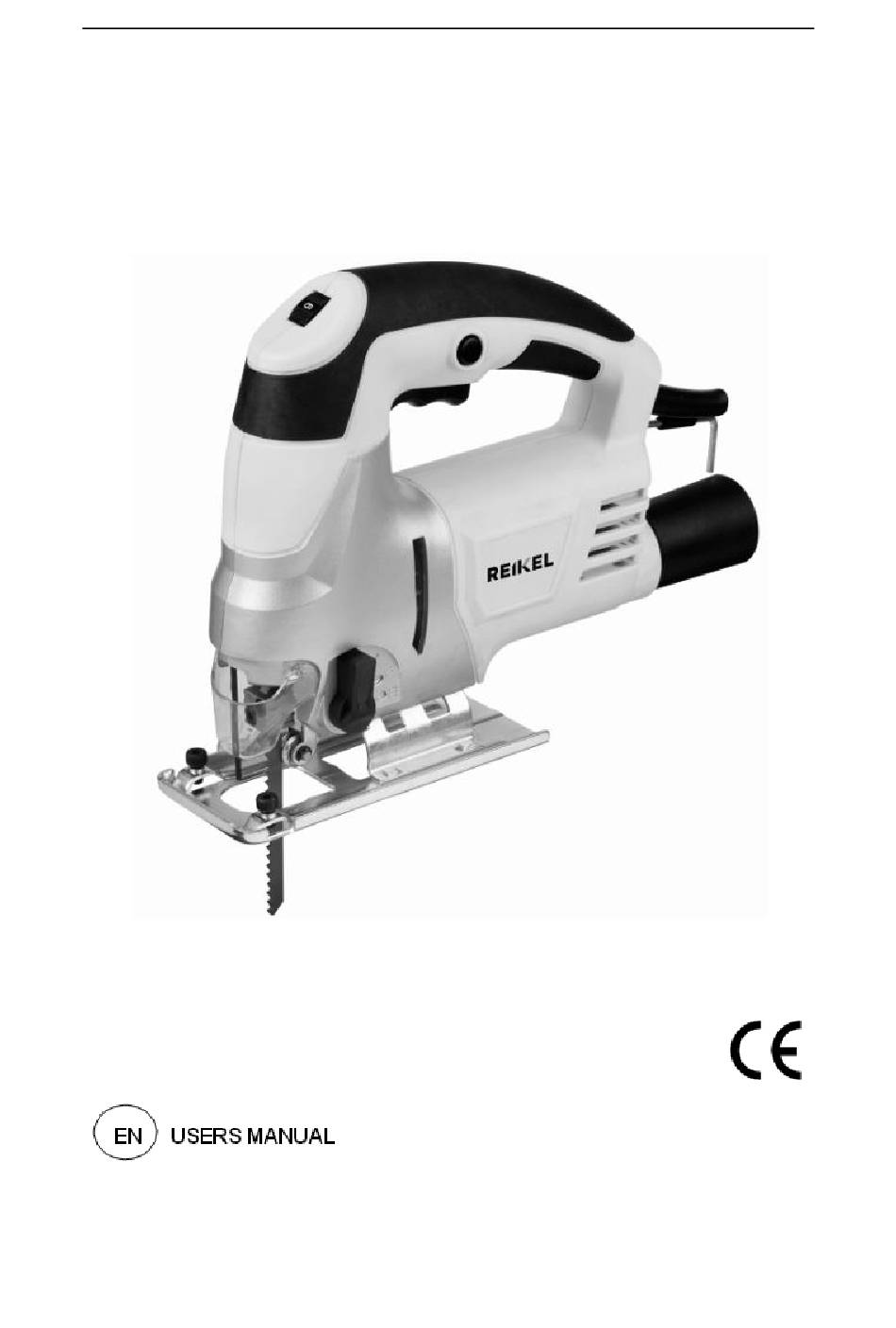

- Page 1 Original Instructions JS616 Jig Saw Made in China 2015...
- Page 2 Original Instructions Fig.1 Fig. 2 Fig.3 Fig. 4 Fig.5 Fig. 7 Fig.8...
- Page 3 Original Instructions GENERAL SAFETY RULES WARNING Read all safety warnings and instructions. Failure to follow all the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL THE WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 4 Original Instructions outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Page 5 Original Instructions 4) Power tool use and care a) Do not force the power tool. Use the correct power for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 6 Original Instructions operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. IF YOU ARE NOT thoroughly familiar with the operation of a jig saw, obtain advice from a qualified person.
- Page 7 Original Instructions vibration and break the blade. Never operate the saw without the pivot shoe in position. The spindle may strike against the workpiece and damage the reciprocating mechanism. Hold the tool firmly. Do not touch the blade or the workpiece immediately after the sawing operation. It may be extremely hot and could burn your skin.
-
Page 8: Table Of Contents
Do not use machine attachments for works other than those for which they are designed for! All other applications are expressly ruled out. 1. MACHINE DATA Technical specification: JS616 Type designation Jig Saw Rated voltage 230-240V~ 50Hz... - Page 9 Original Instructions -- in wood 65mm Level of acoustic pressure L (K=3dB(A)) 91.1dB(A) Level of acoustic power L (K=3dB(A)) 102.1dB(A) Cutting the chipboard: =6.062m/s Level of vibration (K=1.5m/s Cutting the sheet metal: =6.432m/s Note: that the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;...
-
Page 10: Safety Symbols
Original Instructions Fig. 1 1. ON/OFF switch 2. Lock-on button 3. Speed controller 4. SDS blade clamp 5. Blade guide 6. Protection guard 7. Shoe plate 8. Parallel guide lock screw 9. Pendulum lever 10. Dust adaptor 11. Hex key 2. -
Page 11: Assembly
Original Instructions 3. ASSEMBLY Install or remove the blade Fig.2 WARNING: Always ensure that the jig saw is switched off and plug is removed from the power point before making any adjustment. It is recommended to wear protective gloves when inserting or replacing blade. The jig saw uses blades with a hole fitting. -
Page 12: Use
Original Instructions 0° and 45°) using the angle scale on the shoe plate. 3. Slide the shoe plate until the blade guide rests against the back of the blade. 4. Re-tighten the hex screw. For accurate work it is necessary to do a practice cut first. Check the cut and reset the angle until the correct cut is achieved. - Page 13 Original Instructions Speed controller Fig.6 Adjusting the speed to suit the application enhances cutting performance and saves the blade from undue wear. To determine optimum cutting speed first perform test cuts on offcuts of the workpiece to be cut. Rotate the speed controller, located at the back of the jig saw to set the blade speed. Position “1”...
-
Page 14: Service & Maintenance
Original Instructions 3. Slowly guide the jig saw forward, building up speed as you go, keeping the shoe plate against the workpiece. NOTE: Do not force the jig saw. Use only enough pressure to keep the blade cutting. Do not force the cutting, allow the blade and the saw to do the work. Metal cutting 1. - Page 15 Original Instructions manufacturer or its service agent in order to avoid a hazard. Disconnect from the power supply immediately if the supply cord is damaged. Take care not to expose this tool to the rain. Cleaning Avoid using solvents when cleaning plastic parts. Most plastic parts are susceptible to damage from various types of commercial solvents and may be damaged by their use.
