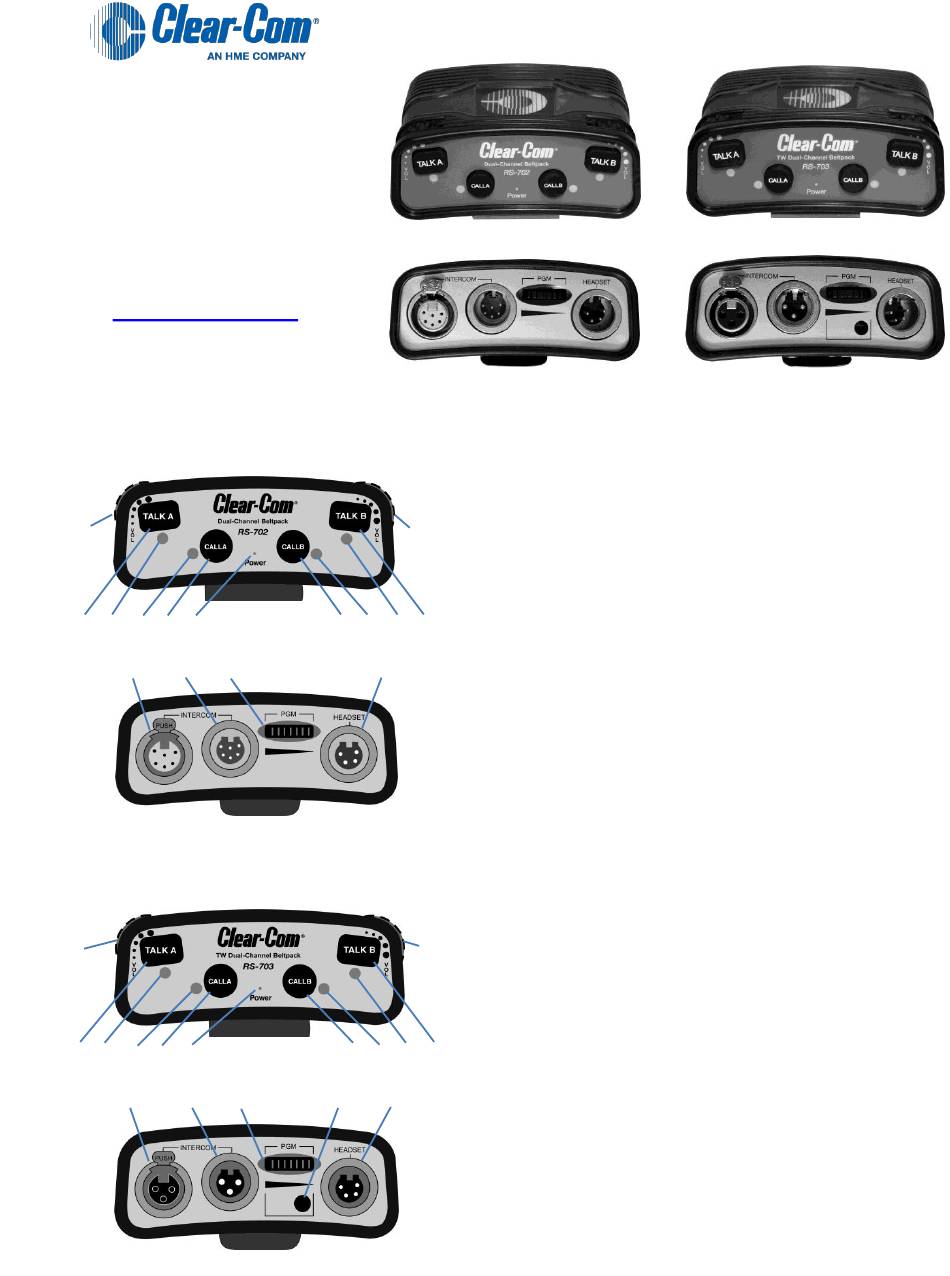

RS-702 & RS-703
BELTPACKS
QUICK
REFERENCE
GUIDE
www.clearcom.com
HME# 399G054
Rev A
7/9/13
1
2
3
4
5
6
12
13
14
1
2
3
4
5
6
12
13
14

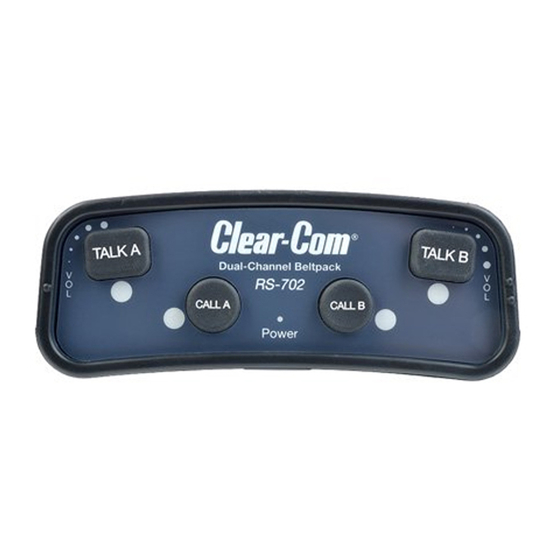

Dual-Channel Beltpack
RS-702 Controls, LEDs and Connectors
11
7
8
9 10
15
RS-703 Controls, LEDs and Connectors
11
7
8
9 10
15
16
RS-702
Top view
Bottom view
1 Ch-A volume control –
2 Ch-A talk button –
talk to all on intercom channel A
Press and hold while talking, or tap to latch on
3 Ch-A talk LED –
lights when intercom channel A talk is active
4 Ch-A call LED –
lights when channel A call is active
5 Ch-A call button –
activates call on intercom channel A
6 Power LED –
lit when beltpack power is on
7 Ch-B call button –
activates call on intercom channel B
8 Ch-B call LED –
lights when channel B call is active
9 Ch-B talk LED –
lights when intercom channel B talk is active
10 Ch-B talk button –
talk to all on intercom channel B
Press and hold while talking, or tap to latch on
11 Ch-B volume control –
12 Intercom cable receptacle – 6-pin XLR female
13 Intercom cable loop-thru – 6-pin XLR male
14 Program audio level control –
15 Headset cable receptacle –
1 Ch-A volume control –
2 Ch-A talk button –
talk to all on intercom channel A
Press and hold while talking, or tap to latch on
3 Ch-A talk LED –
lights when intercom channel A talk is active
4 Ch-A call LED –
lights when channel A call is active
5 Ch-A call button –
activates call on intercom channel A
6 Power LED –
lit when beltpack power is on
7 Ch-B call button –
activates call on intercom channel B
8 Ch-B call LED –
lights when channel B call is active
9 Ch-B talk LED –
lights when intercom channel B talk is active
10 Ch-B talk button –
talk to all on intercom channel B
Press and hold while talking, or tap to latch on
11 Ch-B volume control –
12 Intercom cable receptacle –
13 Intercom cable loop-thru –
14 Program audio level control –
15 Program audio input –
Note: Does not work with stereo audio
16 Headset cable receptacle –
RS-703
TW Dual-Channel Beltpack
Top view
Bottom view
adjusts channel A volume level
adjusts channel B volume level
adjusts program audio input level
4-pin XLR male
adjusts channel A volume level
adjusts channel B volume level
3-pin XLR female
3-pin XLR male
adjusts program audio input level
3.5mm balanced input jack
4-pin XLR male
