BN Thermic PROTIM-7 Instructions

Thank you for purchasing a BNThermic product. Manufactured to a high standard, this product will, if used according
to these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions
remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT:
REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE
FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

1. SAFETY INSTRUCTIONS

1.1 ELECTRICAL SAFETY

WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the
following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power
cables, plugs, sockets and any other connectors for wear or damage. You must ensure that the risk of electric
shock is minimised by the installation of appropriate safety devices. A Residual Current Circuit Breaker
(RCCB) should be incorporated in the main distribution board. If in any doubt consult a qualified electrician.
You must also read and understand the following instructions concerning electrical safety.
▪ The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe
condition of those appliances and the safety of the appliance operators. If in any doubt about electrical safety,
contact a qualified electrician.
▪ Installation should always be carried out by a qualified electrician or a competent person in accordance with
current electrical regulation.
▪ Ensure that the insulation of all the cables on the appliance is undamaged and safe, before connecting it to
the power supply.
▪ Ensure that the cables are always protected against short circuit and overload.
▪ Regularly inspect the power supply cables and plugs etc. for wear or damage and check all connections to
ensure that none are loose.
▪ Important: Ensure that the voltage marked on the appliance matches
the power supply to be used and that a correctly rated fuse is fitted.
▪ DO NOT use worn or damaged cables, plugs or connectors.
Immediately have any faulty item repaired or replaced by a qualified
electrician.
▪ The unit should be protected by a suitably rated isolator and fuse.
▪ This Timer is only suitable for indoor or outdoor use where the timer is
protected from water.

1.2 GENERAL SAFETY INSTRUCTIONS

✓
Remove all packaging and store it away from children.
✓
Familiarise yourself with the applications and limitations of the timer.
X DO NOT use in areas where hazardous gasses or dusts may be
present.
X DO NOT disassemble the timer for any reason there are no user
serviceable parts inside.
X DO NOT use this timer to perform a task for which it has not been
designed.
2. INTRODUCTION & SPECIFICATION

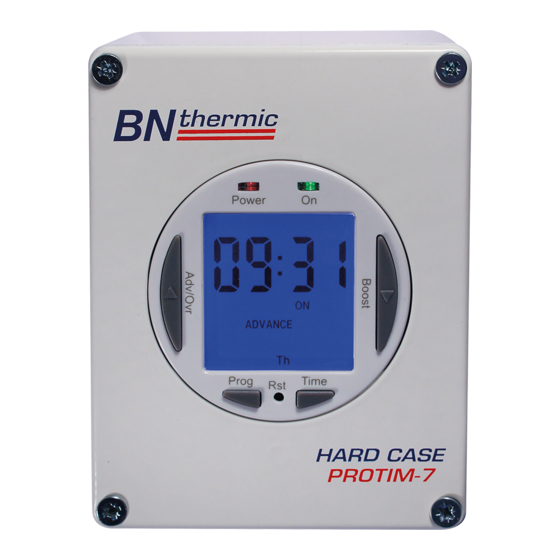

The PROTIM-7 timer has up to 4 ON and 4 OFF easy-set programme periods per day, 28 ON/28 OFF programmes
per week and offers an easy way of controlling one or many heaters either directly or through the use of an additional
contactor.
Volt Free Contacts
This unit can be user set so the contacts are volt free this allows the timer to be used with our MC1 Halogen Control
panel, TS-5 Halogen soft start controller or either of our Hard Case Thermostats.
YOUR GUARANTEE AT www.bnthermic.co.uk
PLEASE READ THESE
INSTRUCTIONS FOR:-
7 DAY TIMER
Model:- PROTIM-7
INSTRUCTIONS, NOTE THE SAFE OPERATIONAL
