Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
IL-BKR
QUICK START APPLE LIGHTNING ADAPTER INSTALLATION GUIDE FOR BECKER AUX READY RADIOS
Created: June 9, 2013
Revised: June 3, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IL-BKR and is the answer not in the manual?

Questions and answers

Related Manuals for Discount Car Stereo IL-BKR

Summary of Contents for Discount Car Stereo IL-BKR

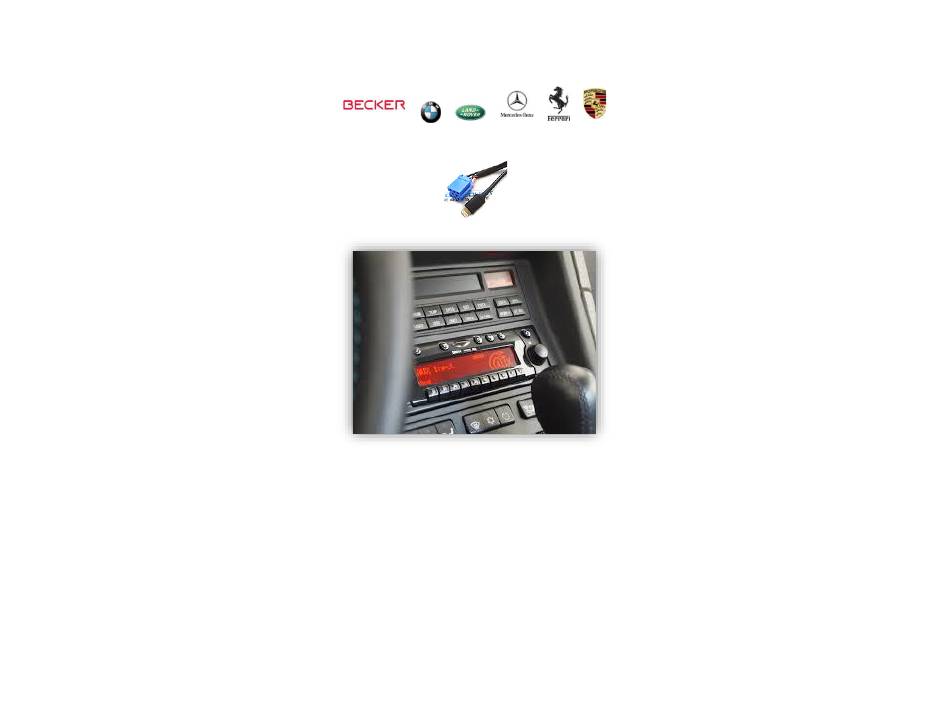

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 IL-BKR QUICK START APPLE LIGHTNING ADAPTER INSTALLATION GUIDE FOR BECKER AUX READY RADIOS Created: June 9, 2013 Revised: June 3, 2021...

  • Page 2: Installation

    Lightning plug, and if your vehicle is equipped with an older iPod adapter it will also need updating. The iL-BKR will play and charge any Apple Lightning device including the iPhone XR, iPad Pro etc. without sacrificing the look and feel of the dashboard components.
  • Page 3 ISO8-HAR T-harness (See Fig. 6). Note: The IL-BKR will play & charge only when ignition is “ON” however the We highly recommended purchasing the iso8-har harness along with this option to charge at all times is available by switching red wire on adapter (IL-BKR) so that we “mate”...
  • Page 4 5. Disconnect factory 8-pin plug (black) from chamber A (See Fig. 3) and connect to matting 8-pin connector on power supply harness (See Fig. 7) 6. Connect 8-pin plug from power supply harness to Chamber A on radio (vacated in step 2) 7.

  • Page 5: Operation

    Operation: Radios with ☼ button: (i.e. BE6104) One of the most important steps in this process is enabling the AUX function within Becker radio menu. Most Becker radios are pre-programmed to recognize a CD Changer connection and because of that you must change the Turn Radio “ON”...
  • Page 6 Nav Traffic Radios Sound 5 (BE7077 Sprinter Van etc.) Press the "Radio" button to enter Radio mode. Turn radio ON. Press the "Navi" and "F10" simultaneously Press the repeatedly until EXT menu appear. Press "Next" until the AUX input, Changer Res screen Turn Rotary control knob clockwise and select EXT AUX.

  • Page 7: Test Operation

    Turn ignition and radio “ON” Note: Radios in some European vehicles operate without the key; however, in order for the iL-BKR to work, the key must be turned to Press the TP button for more than 2 seconds “ACC” or “ON” positions. In these positions the iL-BKR will charge and Press multifunction button “AUX”...

  • Page 8: Package Contents

    Optional Smart Remote: Operation: This wireless remote would let you pause, play, adjust volume, or otherwise Use smart remote to perform the following functions on any iOS7.0 and higher control your media from farther away than arm’s reach. Use at home to or Android 4.4 and higher.

  • Page 9: Frequent Asked Questions

    Without the ISO8-HAR, Ferrari heads-up display (cluster display) seen in Fig. 4a or Bluetooth hands-free will cease to work. Purchase the ISO-HAR along with the IL-BKR and we will mate them prior to shipping. If for some reason you ignore the warning and need the ISO8-HAR, then you will have to mate them yourself (special pin removal tool required) or mail back to us for the free service.
