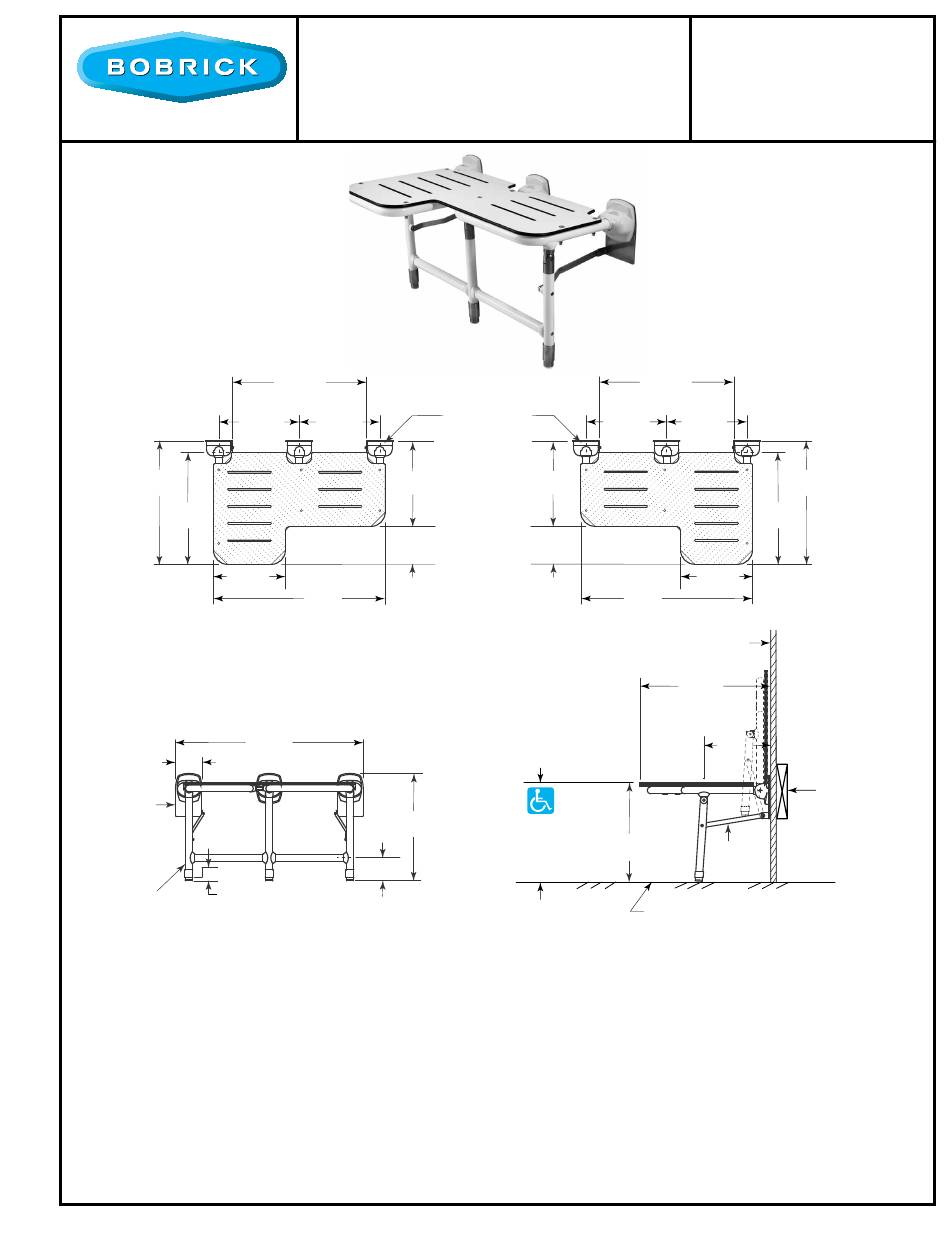

B-918116R
Right-Hand Top View
C L
14-13/16''
22-5/8''
575mm
20-9/16''
522mm
13-3/16''
335mm
4-3/4''
120mm
Mounting
Flange (3)
Adjustable
Leg (3)
15/16'' to 1-13/16''
8 to 21mm
MATERIALS:
Seat — One-piece, 3/8" (10mm) thick, high pressure laminate with matte-finish, white-colored surfaces and black
phenolic-resin core — cannot delaminate. Integral slots for water drainage.
Frame — Zinc-plated 3/4" steel pipe 1/10" (2.5mm) wall thickness, 1/8" (2.7mm) white vinyl antibacterial, biocompatible, and
warm-to-the-touch coating thickness, 1-5/16"(33mm) outside diameter.
Mounting Flanges (2) — Stainless steel Inox AISI 304 1/8"(3mm) thick wall plates. Flange cover polyamide 6.
Swing-Down Leg — Zinc-plated 3/4" steel pipe 1/10" (2.5mm) wall thickness, 1/8" (2.7mm) white vinyl antibacterial,
biocompatible, and warm-to-the-touch coating thickness, 1-5/16"(33mm) outside diameter.
Hinge Bracket — Inox AISI 304, 11-gauge (3 mm) stainless steel with satin finish.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.

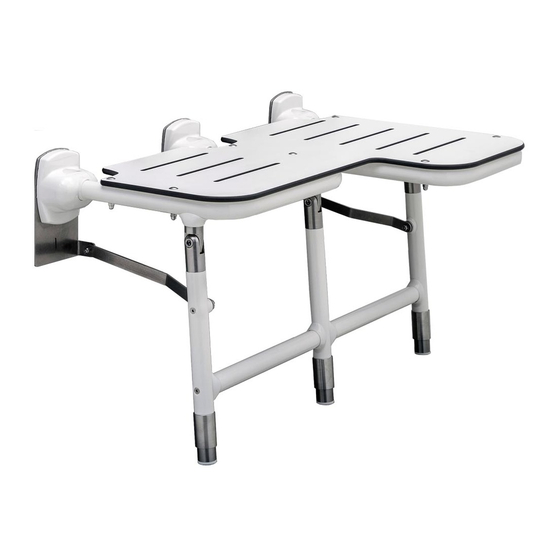

BARIATRIC FOLDING
SHOWER SEAT WITH LEGS
24-11/16''
627mm
C L
C L
14-13/16''
3375.5mm
3375.5mm
15-11/16''
398mm
7''
177mm
31-1/2''
800mm
34-7/16''
875mm
19-11/16''
500.5mm
4-3/16''
107mm
*
Consult local building codes
Right-Hand Seat Shown
C L
Flange Cover (3)
14-13/16''
3375.5mm
15-11/16''
398mm
7''
177mm
31-1/2''
Universal/Accessible Design
Recommended
18''
Mounting Height
*
457mm
17'' to 19''
430 to 485mm
B-918116
SERIES
24-11/16''
Left-Hand Top View
627mm
C L
C L
14-13/16''
3375.5mm
22-5/8''
575mm
20-9/16''
522mm
13-3/16''
335mm
800mm
Finish Face of Wall
22-1/2''
572mm
11-7/8''
302mm
building codes,
Hinge Arm
Bracket (2)
Finish Face of Floor
r1/8/18
© 2018 by Bobrick Washroom Equipment, Inc.
B-918116L
Concealed
wall backing
to comply
with local
not furnished
by Bobrick.
continued . . .
Printed in U.S.A.
