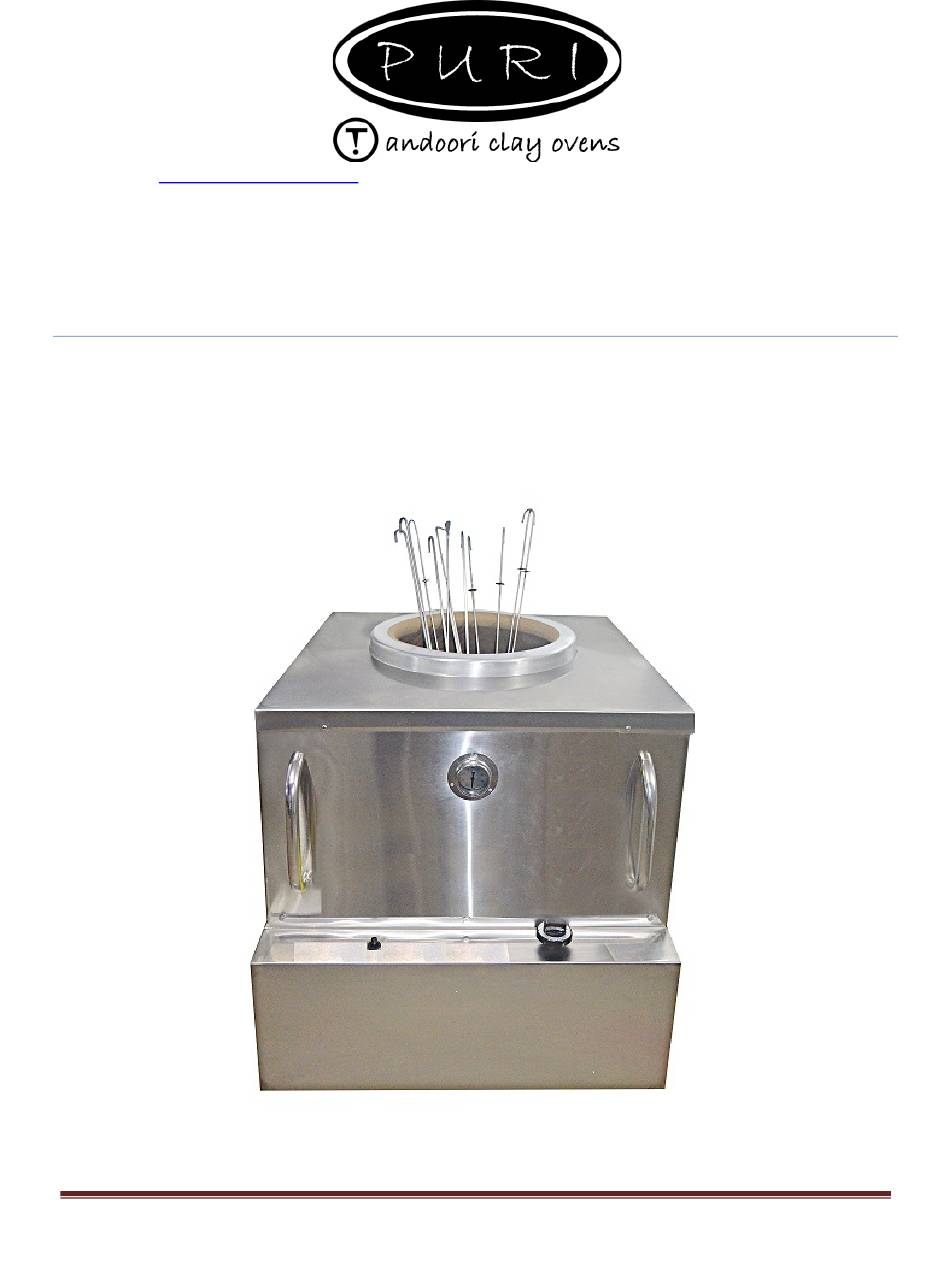

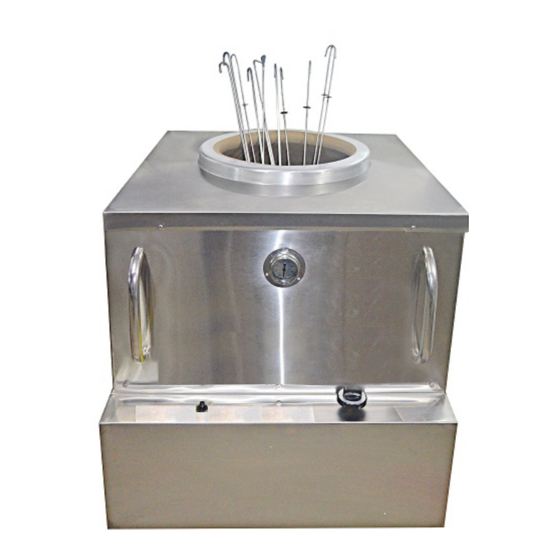

- Page 1 | ‘The Tandoor Clay Oven Ltd’ ta/ PURI Tandoors in UK Gas Fired Tandoori Oven Instruction Manual Gas Fired Tandoor Instruction Manual Manual Rev. October 2019...
- Page 2 GAS FIRED TANDOOR OVEN INSTALLATION AND OPERATOR INSTRUCTION MANUAL FOR YOUR SAFETY: 1. Do not store or use gasoline or other flammable vapours or liquids in the vicinity of this or any other appliance. 2. A qualified installer must perform installation and service WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. WARNING: If you smell gas 1. Shut off gas to the appliance. 2. Extinguish any open flames. 3. Do not try to light any appliance. 4. Do not touch any electrical switch; do not use any phone in your building. 5. Immediately call you gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions. 6. If you cannot reach your gas supplier, call the fire department. RETAIN THIS MANUAL FOR FUTURE REFERENCE: ASSEMBLER / INSTALLER: Leave these instructionswith the appliance. A copy of these boxed instructions is to be posted in a prominent location and theinstructions are to be followed in the event the user or area occupant detects gas odours. Gas Fired Tandoor Instruction Manual Manual Rev. October 2019 Page | 1...
-
Page 3: Table Of Contents
Contents Quick guide on getting started ..................3 Introduction ........................3 Consequential Loss ......................4 Installation introduction ....................5 4.1. Unpacking ..........................6 4.2. Clearance and Positioning ...................... 6 4.3. Ventilation ..........................7 4.4. Gas supply and connection ....................7 4.5. -
Page 4: Quick Guide On Getting Started
1. Quick guide on getting started Adjusting the shutter: There is an adjustable shutter at the left side (bottom) of the front box. This is used to regulate airflow to achieve optimum & even heat from the burner. Please see the video below https://youtu.be/bh-ulCvDaks Curing the Clay Application of the Tandoor Oil: 1 x small jar of oil is provided with the tandoor, please add plain... -
Page 5: Consequential Loss
3. Consequential Loss Puri Tandoors does not accept responsibility for loss of food, production time, production time, profit etc, which may result from the breakdown of the appliance. Models of this tandoori oven are suitable for installations in UK &, EU UK &... -
Page 6: Installation Introduction
4. Installation introduction This product is made with the safest materials conforming to the relevant CE directives. Proper installation must conform to all local codes. Within Europe, appliances should be in installed in accordance with BS6173: 2009code of practice for installation of gas catering appliances, taking into account Gas Safety (Installation and Use) Regulations 1998 Approved Code of Practice and guidance and Health and safety at Work Act 1974. -
Page 7: Unpacking
• Refer to local codes for the building fresh air supply requirements in your respective country. • Note: Where servicing may require greater access clearances than those shown on the nameplate, then the greater clearances should be allowed for. • At installation, adequate clearances should be provided for proper operation and servicing of theappliance and any field installed optional items. -
Page 8: Ventilation
• Check that the gas supply correspondence to that on data plate. Gas connection must be the same size of the PURI Tandoors, BSP ½”. Warning: Do not under any circumstances join NPT to BSP threads when making connections. •... -
Page 9: Start Up And Operation
• Fixed pipe work must not be used with this appliance. • Connect tandoor to gas supply and conduct gas leakage tests to verify gastight connections. Check entire piping system for leaks. A solution consisting of 50% dishwashing detergent and water mix can be applied to all piping parts with a brush. •... -
Page 10: User Instructions
Puri Tandoors uses a safety pilot system to ignite the burner and monitor flames and to shut off the gas supply in case of loss of burner or pilot flames. The gas supplies tothe pilot and burner are fed through a thermo- magnetic safety valve. A thermocoupleis part of the safety systems and it functions to hold the gas valve open after a properpilot flame is established. -
Page 11: Application Of The Oil
• If the burner extinguishes for the any reason while the oven is operating, switchcontrol off and WAIT 5 MINUTES BEFORE RELIGHTING. If for any reason burners become extinguished, repeat lighting instructions beginning with Step 1. • After the pilot burner is lit main burner can be turned on. To do so rotate the control knob anticlockwise, (counter clock). -
Page 12: Shutting Down Of The Appliance
During this procedure the mouth of the Tandoor should be completely exposed. DO NOT cover the opening with the stainless-steel lid. Do not be alarmed if you see small fissures appear on the clay surface it will not affect the performance of the Tandoor. 5.3. -
Page 13: General Check
6.2. General check Remove the control knob and the 4 screws securing the front cover and cover off over the tap spindle. 1. General check of the appliance, e.g. installation, ventilation, gas connections, gas supply fittings/flexible hose, restraint wire fitted isolation shut off valve. -
Page 14: Ignite Electrode
DO NOT OVERTIGHTEN THE CONNECTION VALVE The tip of the thermocouple should be 1” (25 mm) from the edge of the main burner and level with the top of main burner. The pilot flame should completely envelope the tip of the thermocouple. 7.2. -
Page 15: Technical Data
8. Technical Data UK & European Units Large Unit (32”x32”) Natural Gas Rate at 20 mbar – Max: 18kW (Net) / Min: 8kW (Net) Injector fitted with 3.6 mm LPG Rate at 37 mbar – Max: 11.25kW (Net) / Min: 9kW (Net) Injector fitted with 1.7 mm Medium Unit (28”x30”) Natural Gas Rate at 20 mbar –... - Page 16 Warning Labels Gas Fired Tandoor Instruction Manual Manual Rev. October 2019 Page | 15...
