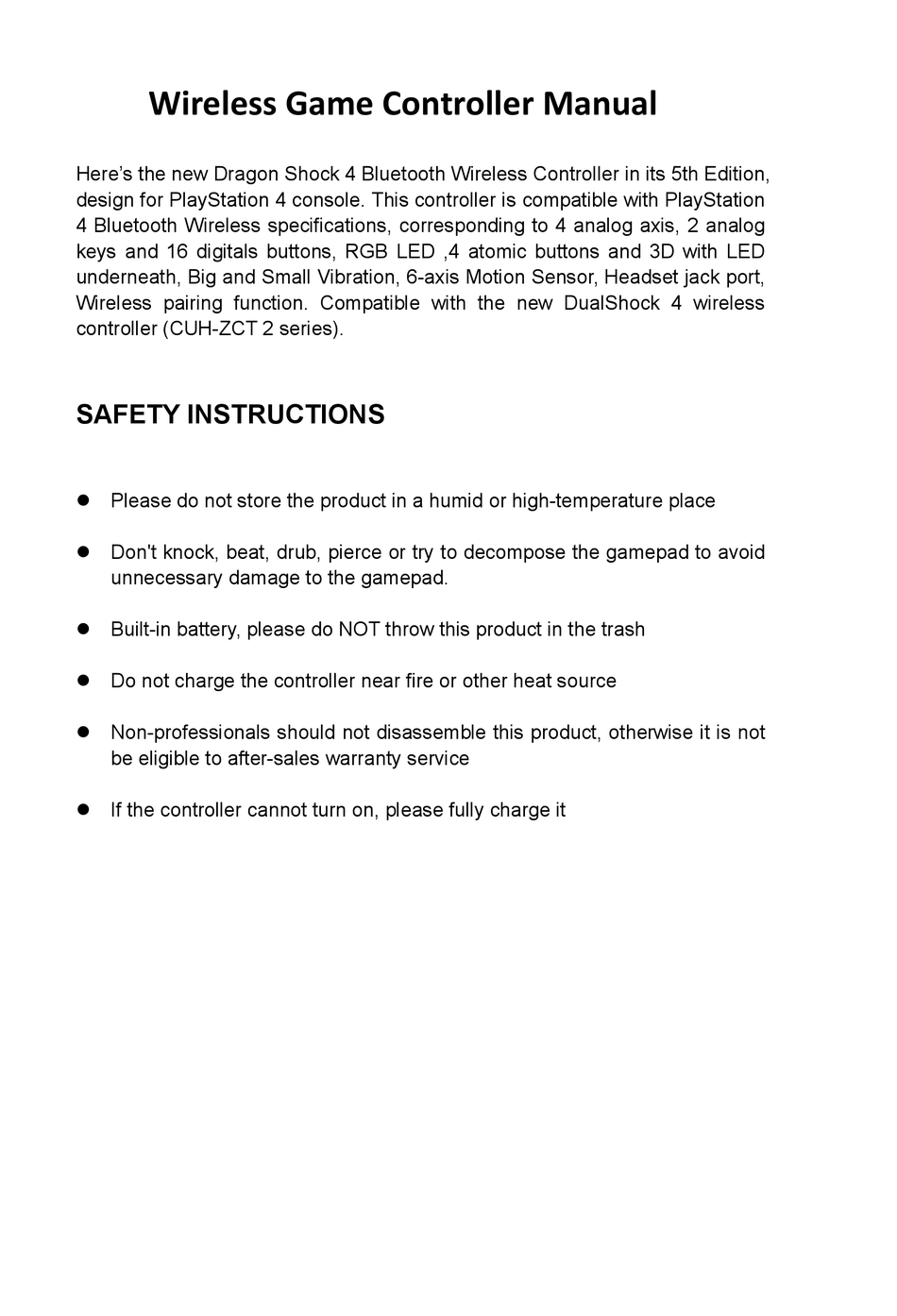

Wireless Game Controller Manual

Here's the new Dragon Shock 4 Bluetooth Wireless Controller in its 5th Edition,

design for PlayStation 4 console. This controller is compatible with PlayStation

4 Bluetooth Wireless specifications, corresponding to 4 analog axis, 2 analog

keys and 16 digitals buttons, RGB LED ,4 atomic buttons and 3D with LED

underneath, Big and Small Vibration, 6-axis Motion Sensor, Headset jack port,

Wireless pairing function. Compatible with the new DualShock 4 wireless

controller (CUH-ZCT 2 series).

SAFETY INSTRUCTIONS

 Please do not store the product in a humid or high-temperature place

 Don't knock, beat, drub, pierce or try to decompose the gamepad to avoid

unnecessary damage to the gamepad.

 Built-in battery, please do NOT throw this product in the trash

 Do not charge the controller near fire or other heat source

 Non-professionals should not disassemble this product, otherwise it is not

be eligible to after-sales warranty service

 If the controller cannot turn on, please fully charge it

Table of Contents

Need help?

Do you have a question about the Shock 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dragon Wholesaling Shock 4

Page 1 Wireless Game Controller Manual Here’s the new Dragon Shock 4 Bluetooth Wireless Controller in its 5th Edition, design for PlayStation 4 console. This controller is compatible with PlayStation 4 Bluetooth Wireless specifications, corresponding to 4 analog axis, 2 analog keys and 16 digitals buttons, RGB LED ,4 atomic buttons and 3D with LED underneath, Big and Small Vibration, 6-axis Motion Sensor, Headset jack port, Wireless pairing function.
Page 2 PRODUCT FEATURE  Compatible with all button functions, NO touch function, motor corresponding functions, With sensor function .  Includes RGB LED function,3 blue LEDs and 4 atomic buttons under the left and right joysticks correspond to LED of different colors. ...
Page 3 01 SHARE Button 10 Left analog joystick/L3 button with blue 02 Touch pad button-NO touch function backlight-Press down on the stick to use 03 Option button it as the L3 button 04 Directional buttons 11 PS button 05 Triangle Button with green backlight 12 Right analog joystick/R3 button with 06 Square Button with pink backlight blue backlight-Press down on the stick...
Page 4 14 R1 button 15 R2 trigger 16 USB pprt 17 L1 button 18 L2 trigger 19 RESET button 20 Headset jack port...
Page 5 After pairing is complete, please press the PS button to activate wireless connection. Dragon Shock 4 controllers can be paired to a PlayStation 4 at the same time. PlayStation 4 can recognize up to 32 different paired controllers. Press the PS button to take the console out of its Sleep Mode UPDATE FOR THE GAMEPAD 1.
Page 6 2. When the Dragon Shock 4 is in standby mode, long press the SHARE and Cross buttons and connect the gamepad to the computer with the micro-USB cable provided. The controller driver will enter in update mode. Then select DOWNLOAD to launch the update.
Page 7 FUNCTIONS (Sorted regarding product plan ) Number Name Function SHARE Button SHARE functions (printscreen, recording video, …) Touch action button - activates an in-game command (depending button on the game settings) OPTION Button OPTION button / in-game pause button Directional 8-position directional action button - activates in-game buttons commands (depending on game's settings)
Page 8 SPECIAL FEATURES  PS button: display the console’s main screen (when PlayStation 4 console power is on), allow to exit console’s sleep mode and to switch between applications during launch; press long PS button allows to enter settings menu  SHARE button: open the SHARE menu to select options available as printscreen, recording a in-game video, etc.
Page 9 ELECTRIC ALIMENTATION INFORMATION Operating voltage: DC3.6v -- 4.2V Operating current without vibration: less than 100mA Operating time in constant use: about 4 hours Standby current: less than 10mA Charging voltage/current: about DC5V / 200mA Bluetooth transmission distance:≦8m Battery capacity: 500mAh Standby time: for about 30 days when fully charge Low power 3.5V, entering standby 10 The light bar will turn off when the battery is fully charged with 4.15-4.22V...
Page 10 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
