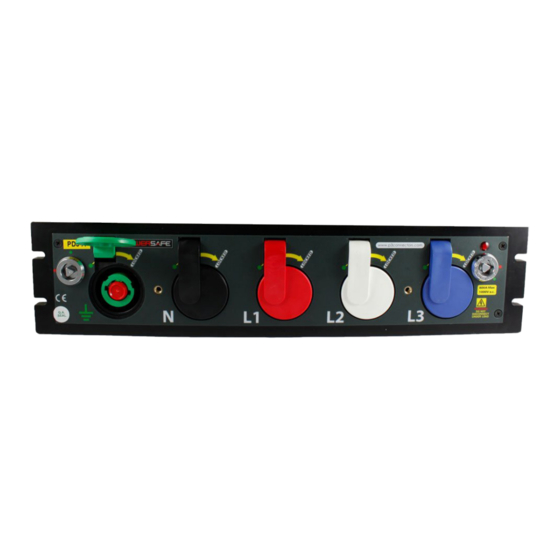

Summary of Contents for Phase 3 Powersafe PS5-E-88

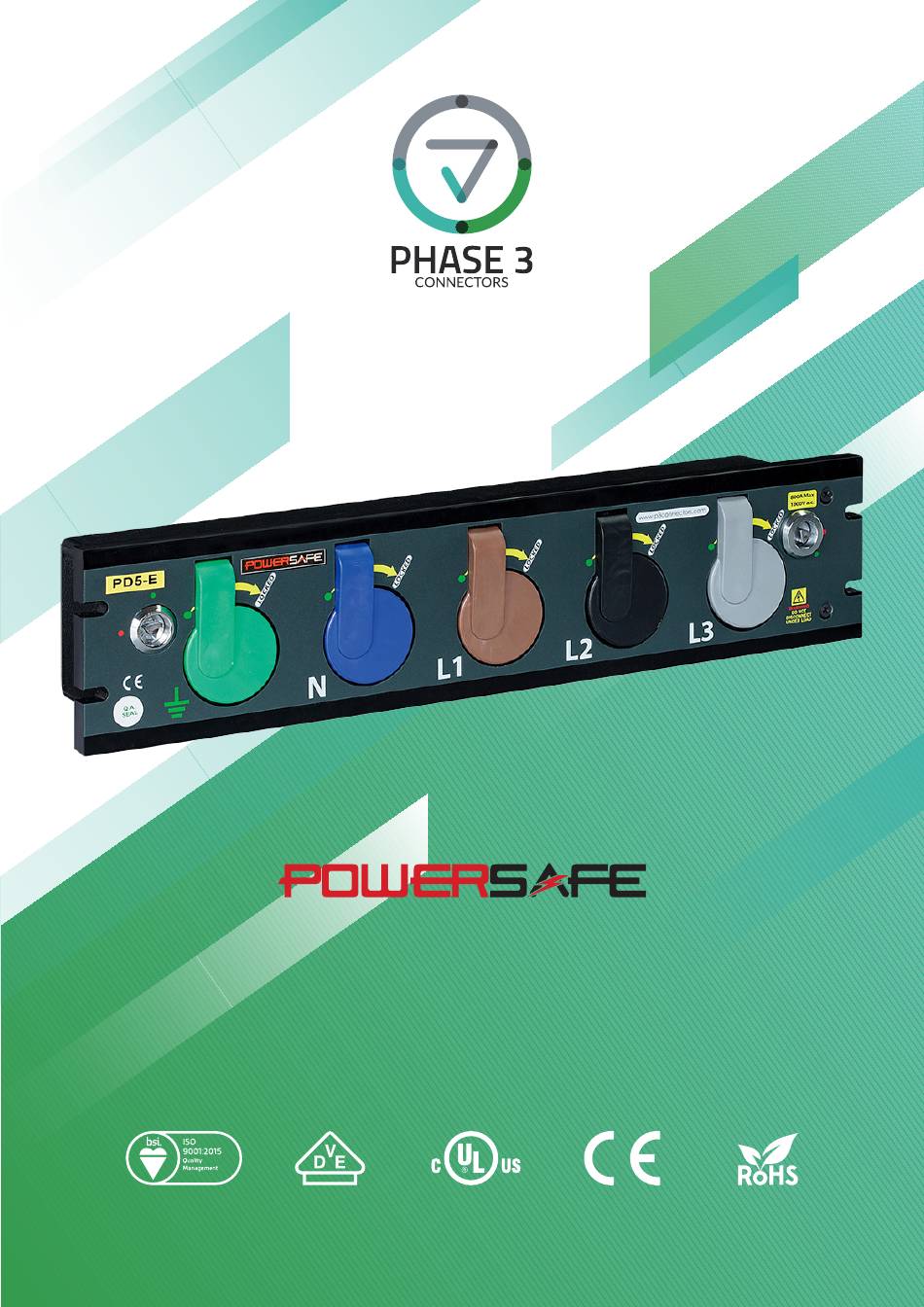

- Page 1 POWER DISTRIBUTION BOX ASSEMBLY GUIDE www.p3connectors.com...
- Page 2 Thank you for purchasing the Powersafe Power Distribution Box Phase 3’s Powersafe Sequential Mating Box controls the connection sequence of incoming / outgoing high current cable connections. The sequence ensures that the Earth connection is made first and disconnected last. (FMLB- First Mate Last Break).
- Page 3 5. Once all connectors are removed, turn the Earth key lock anticlockwise. This locks the Earth cover preventing access to the unit. Product Features 800A Capacity Locking Key System Phase 3’s level of Quality Keep the box secure with is unmatched, Our a Key locking system, Distribution Boxes have a...
- Page 4 Maximum Rated Voltage to Earth: 2KVac Current Rating: Up to 800A Rear Terminals: M12 x 25 threaded studs (TIGHTEN NUTS TO A MAXIMUM OF 12 - 14Nm) Micro Switch rating: 250VAC / 3A Phase 3 Connectors Ltd Tel: + 44 (0) 1592 775995 www.p3connectors.com...
- Page 5 INSULATORS HAVE BEEN INSERTED AND THE BARREL ALIGNMENT IS LOST, THEN REINSERT THE INSULATORS AND MAKE SURE EACH IS TURNED FULLY TO THE LEFT. THIS WILL RESET THE MECHANISM. Phase 3 Connectors HQ Phase 3 Connectors Factory Unit 9 Coopers Point...
