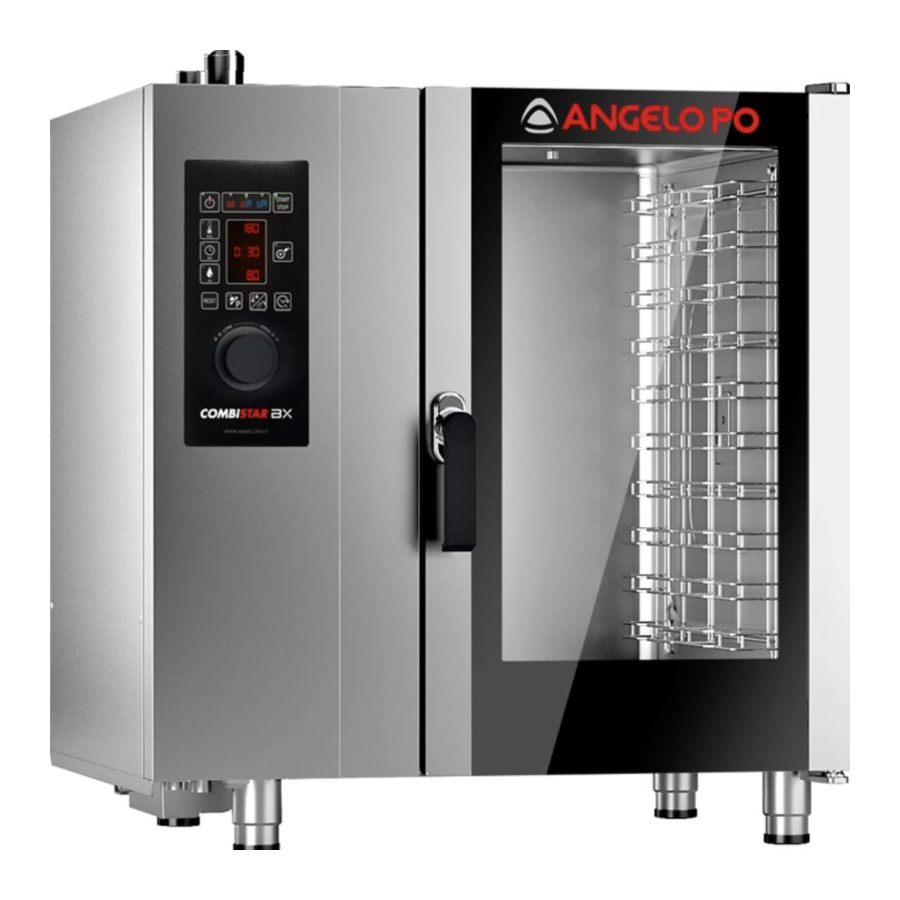

Summary of Contents for MARMON ANGELO PO COMBISTAR BX

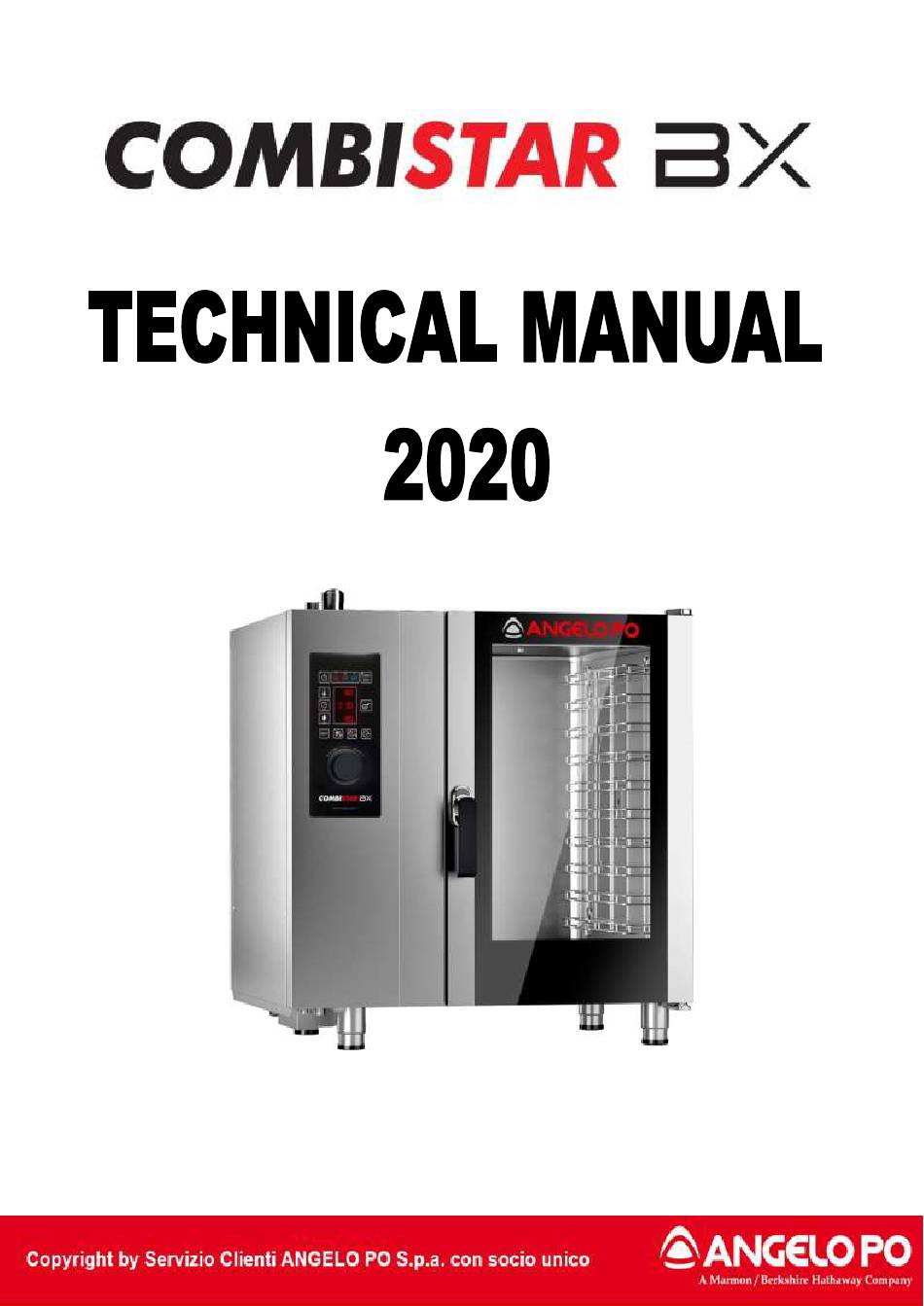

  • Page 1 Rev. 0...

  • Page 2: Table Of Contents

    CONTENTS 1. COMMERCIAL MODEL NUMBER ............. 5 1.1. Product range identification ..................5 1.2. BX Models table ..................... 6 1.3. BX Power (FX-BX 2018) ..................6 1.4. Connection diagram electric and gas ..............7 1.5. Water characteristics ..................... 9 2. FUNCTIONAL DIAGRAM COMBI OVEN ..........10 2.1.
  • Page 3 4.2.2. Mixer ........................... 38 4.2.3. Blower ........................40 4.2.4. Blower (FX/BX 2018) ....................41 4.2.5. Combustion control board ..................42 4.2.6. Combustion Control Board (FX/BX2018) ..............44 4.2.7. Spark generator ......................47 4.2.8. Spark plug and Flame detector.................. 48 4.2.9. Burner: standard and FX/BX2018 ................
  • Page 4 5.2. Components and functioning of BX washing system 1st and 2nd gen....93 5.3. Components and functioning of BX washing system MY2016 ......93 5.4. CLE and dEC Warning ..................96 6. DISMANTLE AND REASSEMBLY COMPONENTS ........ 97 6.1. Encoder ....................... 97 6.2.

  • Page 5: Commercial Model Number

    1. COMMERCIAL MODEL NUMBER 1.1. Product range identification Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 6: Bx Models Table

    1.2. BX Models table 6 1/1GN 10 1/1GN 8 2/1GN 12 2/1GN BX61E BX101E BX82E BX122E BX61ER BX101ER BX61EW BX101EW BX82EW BX122EW BX61EWR BX101EWR BX61G BX101G BX82G BX122G BX61GR BX101GR BX61GW BX101GW BX82GW BX122GW BX61GWR BX101GWR 1.3. BX Power (FX-BX 2018) POTENZA - kW 6 1/1GN...

  • Page 7: Connection Diagram Electric And Gas

    1.4. Connection diagram electric and gas OVEN CONNECTION DIAGRAM (eg: BX 61 E) Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 8 OVEN CONNECTION DIAGRAM (eg: BX 61 G) Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 9: Water Characteristics

    1.5. Water characteristics The appliance must be supplied with drinking water having the characteristics shown in the table. If these characteristics are not complied with, the appliance might suffer damage; a water treatment device should therefore be installed. Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 10: Functional Diagram Combi Oven

    2. FUNCTIONAL DIAGRAM COMBI OVEN The system works in two distinct ways depending on whether the motorised valve is opened or closed. Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 11: Open Valve Operation

    2.1. Open valve operation The rotation of the fan creates a vacuum effect in the local area behind his disk back where it faces the suction pipe/exhaust 5. When the butterfly valve 7 is open to this effect a vacuum sucking air flow entering through the pipe 5. Simultaneously the moist air inside the cooking chamber is induced to leave through the vent tube 6, aided by a flow diverter (not shown) placed inside the chamber at the exit hole.

  • Page 12: Closed Valve Operation

    2.2. Closed valve operation With the valve closed, the steam can’t escape from the vent pipe 6, or from the tube 5 at least until the pressure inside the cooking chamber is not sufficient to overcome the effect of decompression generated by the rotation of the fan (usually 1,5-2,0mBar). But when the pressure chamber exceeds the decompression generated by the fan, the steam excess is expelled through the tube 5.
  • Page 13 The two modes of operation described above are used in different modes of cooking in the following way: Convection cooking: means the user can determine the % the vent valve is open according to the diagram below. 0%: vent completely open (bar on the display all red) from to 90%: the valve opens and closes in timed mode, the value shown on the display is the % of time that remains closed.

  • Page 14: Drain Cooldown / Steam Condensing Operation

    2.3. Drain cooldown / steam condensing operation The inlet water assembly 11 feeds the cooling water injector 12. The opening of the water solenoid valve is timed based on the mode of operation (convection, combi or steam), chamber temperature and the temperature detected by temperature sensor 9. The inlet water assembly 11 is different depending on the levels: BX W (with Automatic Washing) It consists of:...

  • Page 15: Steam Producing Operation (Injectors Code)

    BX W 2° generat. 1° generat. MY 2016 2.4. Steam producing operation (injectors code) Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 16: Electronic Boards, Fuses, Overload Relays

    3. ELECTRONIC BOARDS, FUSES, OVERLOAD RELAYS 3.1. Electronic boards BX The electronic boards system comprises: 1. CPU board (with Keyboard) 2. Power PCB 3. Combustion Control PCB (only gas model) 4. ON/OFF switch – 230V AC 5. Transformer (in 230Vac – out 12Vac) – only for BXW Copyright by Servizio Clienti ANGELO PO Spa...

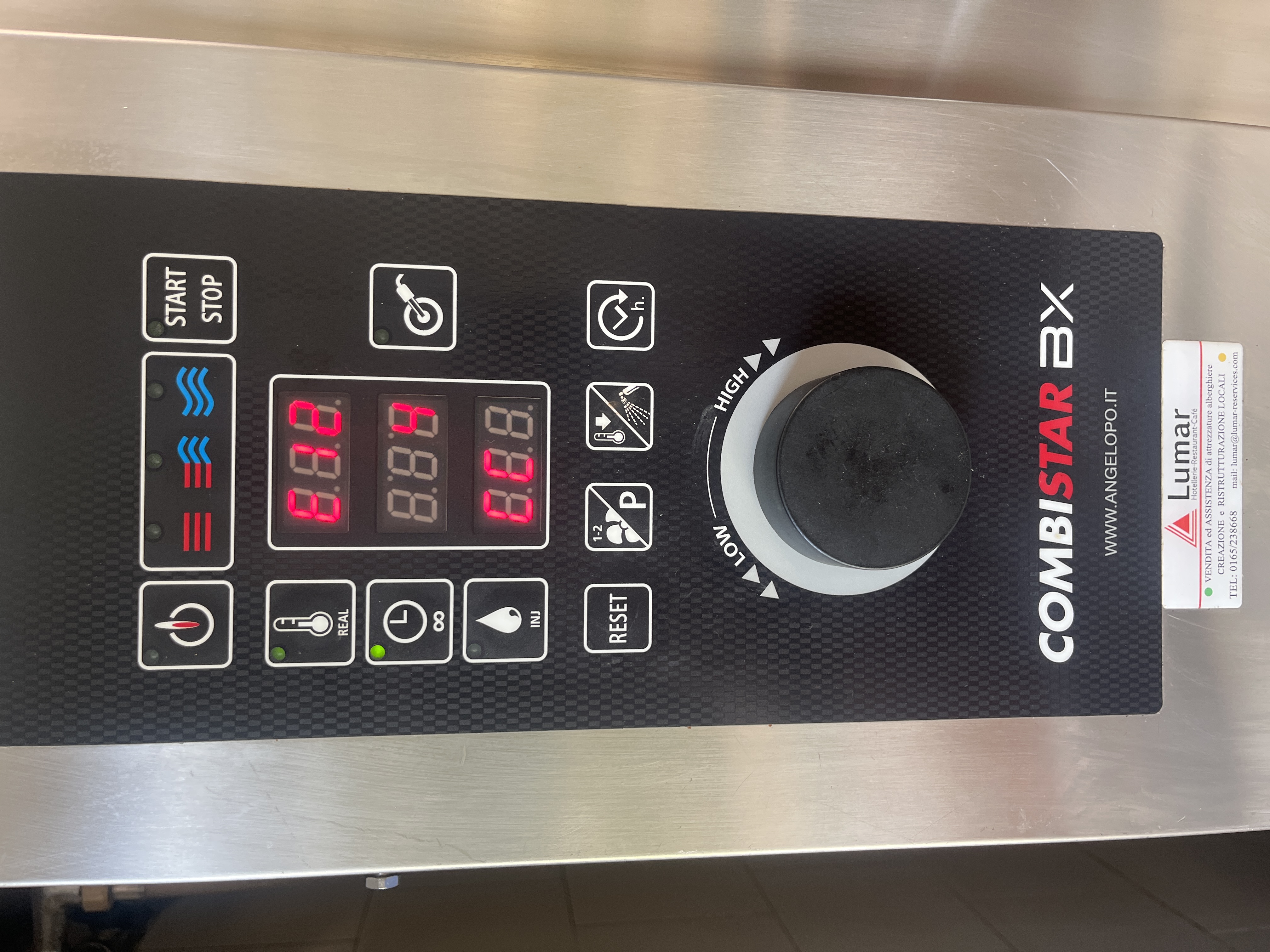

  • Page 17 2nd generation generation MY2016 BX ovens – 1st e 2nd generation and MY2016 The CPU board (1) is made up of segment displays, key illumination LEDs and keys. It is connected to the power board (2) with 4 cables connected to PHOENIX connectors. The CPU power supply is measured between terminals 1 and 4 (approx.
  • Page 18 2 – Power board 1 – CPU board RJ45 1-4: 12Vdc 220Vac 4 – ON/OFF switch 3 – Comb. Control board Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 19 BXW ovens The CPU board (1) is made up of segment displays, key illumination LEDs and keys. It is connected to the power board (2) with 2 cables connected to PHOENIX connectors. The CPU power supply is measured between terminals 1 and 4 (approx 12V AC). Communication between the boards is via an RJ45 type network cable.
  • Page 20 2 – Power board 1 – CPU board RJ45 RJ45 5 - Transformer 220V 3 – Comb. Control Board 4 – ON/OFF switch Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 21 Oven menu management The following procedure allows: a) to set the temperature measurement unit (°C or °F), b) to enable / disable the automatic preheating, c) to display the SW and FW versions With the oven on in standby mode (green power supply LED on): a) Press the “TEMPERATURE”...
  • Page 22 d) 1st generation version: press the "COOLDOWN" key and use the knob to enable/disable the cooldown during cooking with water. MY2016 and BXW versions: press the "COOLDOWN / WASHING" button and use the knob to enable/disable the cooldown during cooking with water. e) Press the "HALF SPEED / REGENERATION"...
  • Page 23 Oven configuration table MODEL DISPLAY 0 – 0 61E, 101E, 82E, 122E 0 – 1 61G, 101G, 82G, 122G Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 24: Alarm Recording My2016 And Bxw Models

    3.2. Alarm recording MY2016 and BXW models power supply LED on), press “start/stop” for 3 With the oven on in standby mode (green seconds to see the last 10 error codes. The first displayed is the last error. By turning the knob anticlockwise you can see the older alarms.

  • Page 25: Reset Parameters Bx Board

    3.4. Reset parameters BX board To reload in the board the default parameters need operate as follow: In Standby Mode (green LED of the on/off button is on), press the on/off button [1] together with the delayed start (older model cleaning) [3] for 5 Seconds. The display will show the SW version. Now press the temperature button [2] together with the delayed start (older model cleaning) [3] for 5 Seconds.

  • Page 26: Bx W Fuses Description

    3.6. BX W fuses description 3.6.1. Power board F3: fuse illumination (250mA T) F4: fuse solenoid valves drain & steam, motorized valve (3,15A T) F5: fuse contactors, combustion controller, solenoid valve rinse & washing (6,3A F) F1: Washing circuit fuse (detergent & rinse aid dispensers, solenoid mixing-tank draining) (3,15A T) 3.6.2.

  • Page 27: Electric Ovens Motor Overload Relays Table

    3.7. Electric ovens motor overload relays table Gas ovens motor overload relays table 3.8. Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 28: Service Communication 2017_03 Of 17/07/2017

    3.9. Service Communication 2017_03 of 17/07/2017 Reference: FX-BX electronic components serial number I hereby inform you that from today, whenever any of the following spare parts are required under warranty, you will need to provide, in addition to the serial number of the oven, the serial number of the component as well: - Power board (pic1)
  • Page 29 Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 30: Gas System - Operate Test Adjust Install Report

    4. GAS SYSTEM - OPERATE TEST ADJUST INSTALL REPORT 4.1. System operation 4.1.1. Premixed system general principles FX oven gas system is a "total premix", this means that the gas is completely mixed with the necessary air to have "good" combustion and then the air-gas mixture is ignited at the burner.

  • Page 31: Power Schemes

    4.1.2. Power schemes As it is evident from the diagram above, in the pre-mixed system air and gas are sucked in and mixed together by a fan. It is possible control the quantity of the air-gas mix because the fan rotation speed is electronically controlled, to obtain a variation of gas flow and thus the power of the burner.
  • Page 32 • Modulation Transitional power: the system is able to control all the range of power from minimum to maximum with the control of the rotation speed of the blower fan by the power board. In this way, the combustion is "good" at any range of power. •...

  • Page 33: General Functional Diagram

    4.1.3. General functional diagram The diagram shows how the major components interface each other. The power board feeds and drives the combustion control board, which during the ignition controls the blower, the gas valve and the igniter, until it receives the signal from the flame detector. Likewise, at the stop, the power board commands simultaneously the valve and turns off the blower.

  • Page 34: System Components

    4.2. System components The picture shows all the components of the gas system. Attention: - Always check before every intervention that all components are securely attached (electrical connectors, screws, clamps, fittings, insulation materials). - Be sure the air inlet filter (9) and the exit of the gas valve pressure test point pipe (6) are totally clean (if necessary clean them properly).
  • Page 35 Functional diagram gas system Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 36: Gas Valve

    4.2.1. Gas valve BENCHMARK GAS OUTLET PRESSURE TEST POINT, connected to the outside with a black silicone pipe PRESSURE OFFSET ADJUSTMENT SCREW (PR.ADJ.) INLET GAS PRESSURE TEST POINT GAS INLET All other test points are not used 230V AC between terminals 3-4 Compensation pipe Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 37 NOTE: - For any details concerning the valve adjustment, see the section Valve offset adjusting. - Be sure the air inlet filter (9) and the exit of the gas valve pressure test point pipe (6) are totally clean (if necessary clean them properly). ATTENTION!: Each replacing of the gas valve is necessary to make the wizard test, check the combustion and even the gas valve offset adjusting.

  • Page 38: Mixer

    4.2.2. Mixer Air-Gas Mixer Seal Gas Fitting PVC Air suction pipe Gas Pipe Exploded view of the Mixer + Seal + Fitting Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 39 Notes: Check that the combustion air filter is always clean and not clogged. Check that the draft air tube is free of cuts or tears and that the clamps are tight Check the connections tightness; do not use flames on gas burner because they could be sucked into the mixing circuit and cause fire / explosion.

  • Page 40: Blower

    4.2.3. Blower NOTES: Do not force the connector of the modulation control, it is one way inserting. The power supply of the fan is not polarized, remember that the ground connection is inserted in the middle. The blower speed is controlled by the combustion control board Brand’s fan is EBM.

  • Page 41: Blower (Fx/Bx 2018)

    4.2.4. Blower (FX/BX 2018) Do not force the connector of the modulation control, it is one way inserting. The power supply of the fan is not polarized, remember that the ground connection is inserted in the middle. The blower speed is controlled by the combustion control board Brand’s fan is This fan must be used with the new combustion control and new burner (B200) Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 42: Combustion Control Board

    4.2.5. Combustion control board NOTE: during the installation, it’s necessary to respect the correct connection of phase and neutral (not inverted). If the connection is inverted the microAmpere reading of the flame detector will be lower as it should be. To check, remember that the voltage measured between NEUTRAL and EARTH is 0±10 Vac Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 43 The connection cable from combustion control to the valve is equipped with an LC filter. This cable must be used only with the “old” card (the green one). Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 44: Combustion Control Board (Fx/Bx2018)

    4.2.6. Combustion Control Board (FX/BX2018) Board Supply (IN) and Gas Valve Spark generator (OUT) Supply Ground 2A T Fuse Blower Supply Jumper Flame Control Blower Fan Speed Control Jumper RS485 connection to the Power Board Connections are the same as the older combustion control. Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 45 NOTE: during the installation, it’s necessary to respect the correct connection of phase and neutral (not inverted). If the connection is inverted the microAmpere reading of the flame detector will be lower as it should be. To check, remember that the voltage measured between NEUTRAL and EARTH is 0±10Vac With this card must be used the cable without LC Filter NOTE: the BOARDS are perfectly interchangeable, only the cable for the connection...
  • Page 46 JUMPER position - Jumper PRESENT for the CE market - Jumper NOT present for the USA market FLAME READING POLARISATION jumper (Polarized System) Put the Jumper on the left if the system is NOT Polarized Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 47: Spark Generator

    4.2.7. Spark generator HIGH VOLTAGE ignition cable (shielded) towards the spark plug GROUND POWER SUPPLY: 230Vac from Comb. Contr. board POLARIZED: L – N – Ground NOTES: Check that the connectors are correctly fitted and that during the ignition the sparks are from the electrode and the ground and not in other different points.

  • Page 48: Spark Plug And Flame Detector

    4.2.8. Spark plug and Flame detector Flame detector HIGH VOLTAGE ignition spark GRAPHITE gasket NOTES: During gas system maintenance check the spark plug conditions, dismantle the part and if necessary, replace it (e.g.: if the distance between electrodes is too high or if the flame detector is deformed).

  • Page 49: Burner: Standard And Fx/Bx2018

    4.2.9. Burner: standard and FX/BX2018 Mixture injection in Flame stabilisation mesh the burner Visor Diaphragm with graphite gasket Cooking chamber-burner (internal and external) fixing flange INSULATION NOTES: - Replace the insulation panel at any replacement of the spark plug kit, if necessary. - New burner (B200) used in FX/BX2018 is different only in the mesh size:...

  • Page 50: Heat Exchanger

    4.2.10. Heat exchanger Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 51: Exhaust Extraction Kit

    4.2.11. Exhaust extraction KIT If the oven is not positioned under a fume hood, you can use the Exhaust extraction kit to make a connection to an exhaust system. It is absolutely prohibited the direct connection to the outside. ATTENTION: Connection to the outside is strictly forbidden. Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 52: Combustion Control Board: Logic Operation

    4.3. Combustion control board: logic operation The logic of the Combustion control board with several steps or state: there are 10 states as reported in the table and each one of these corresponds to a check / audit and controls to the blower and to the gas.
  • Page 53 The combustion control board is controlled by the power board with the following commands: Burner ignition Burner off Speed modulation The combustion control board start with the state "0" STANDBY, and when the power board requires turning on the burner, go to the state "5" OPERATIVE, once detected the presence of the flame.

  • Page 54: Ignition Standard Cycle

    4.3.1. Ignition standard cycle The diagram shows 2 ignition cycles (step 1-5): the first operational phase (step 5) has a modulating working, second, minimum power range working. The difference between the two cycles is the speed of the blower, which varies with the required power.

  • Page 55: Standard Ignition Cycle (Fx2018)

    4.3.2. Standard ignition cycle (FX2018) Notes are the same of above but with Ts = 5 seconds The time mentioned above are 4+1 i.e. the gas valve is open for 5 seconds, sparks are produced only for 4 seconds Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 56: Gas Alarm: E12:F4: Flame Missing

    4.3.3. GAS alarm: E12:F4: flame missing The diagram shows an ignition cycle where there is no detection of flame. During the cycle you have 3 ignition attempts (spark) 3 seconds long, each one preceded by purging of the combustion chamber (necessary for removing from the combustion chamber the gas released previously).

  • Page 57: Gas Alarm E12:F4: Flame Missing (Fx/Bx2018)

    4.3.4. Gas alarm E12:F4: flame missing (FX/BX2018) The diagram shows an ignition cycle where there is no detection of flame. During the cycle you have 5 ignition attempts (spark) 5 seconds long, each one preceded by purging of the combustion chamber (necessary for removing from the combustion chamber the gas released previously).

  • Page 58: Gas Test

    4.4. Gas Test 4.4.1. Polarity check During the installation, it’s necessary to respect the correct connection of PHASE and NEUTRAL (not inverted). If the connection is inverted the microAmpere reading of the flame detector will be lower as it should be. To check, remember that the voltage measured between NEUTRAL and EARTH is 0±10Vac 4.4.2.
  • Page 59 Standard nozzles table FX-BX 61G FX-BX 101G FX-BX 82G FX-BX 122G Nozzles Ø635 - 3147120 Ø605 - 3141800 Ø635 - 3147120 Ø640 - 3147130 Ø760 - 3153040 Ø730 - 3167710 Ø760 - 3153040 Ø760 - 3153040 Ø435 - 3141570 Ø455 - 3141610 Ø445 - 3141590 Ø465 - 3141630 Ø465 - 3141630...

  • Page 60: Gas Valve Adjustment

    4.4.3. Gas valve adjustment Loosen the protective brass cap and prepare a 4mm Allen wrench to set the gas values. If the combustion values at minimum power do not correspond to the recommended offset adjusting of the valve is needed. At this point, if the CO2 is lower than the recommended value, screw clockwise (see figure at right), to enrich the mixture.

  • Page 61: Analysis Of The Combustion Values

    4.4.4. Analysis of the Combustion values During the installation the technician is required to analyze the combusted gas. To do this a portable analyzer fitted with a probe and printer is needed. It is advisable to prepare an extension pipe in order to avoid damages to the probe, a cause of the high temperature of the gas (about 400°C).
  • Page 62 MAGNET POSITION DURING THE COMBUSTION FUME COLLECTION Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 63: Setup Gas - Wizard

    Setup Gas – Wizard 4.4.5. The gas system has the same characteristics and the same components as the FX ovens. The interface changes during the testing procedure, but the combustion checks and measurements described must be performed in the same way as the FX ovens. 1.
  • Page 64 3. Type of gas: the first display shows the kind of gas: turning the knob is possible to choose the type of gas G20, G25, G30, G31 and Out; the selection is confirmed with enter with the knob. 4. Burner selection: after the type of gas, on the first display it is possible to choose the burner to test: CC1 and Out;...
  • Page 65 5. Display parameters: after the burner selection it is possible to see the parameters: first display shows the fan blower maximum speed, Vmax; the value is divided for 10 i.e. in the picture the speed is 6.400 rpm. The second display shows the fan blower minimum speed Vmin and the third display shows the fan blower ignition speed Vignition, both the values expressed in percentage.
  • Page 66 7. End of procedure: the test is ended by pressing the START/STOP key. Change the parameters of the gas board: This adjustment must be done only in according with Service Angelo Po. In all the screens, the gas parameters can be changed: press the TEMPERATURE (red) button to change the maximum speed, TIME (yellow) for the minimum speed, HUMIDITY (green) for the ignition speed.

  • Page 67: Recommended Combustion Values

    4.4.6. Recommended combustion values Here below there are listed the values of combustion (CO2, CO) recommended by "Angelo Po", values taken should be as closely as possible to these values. It is recommended to take the measure after 2-3 minutes that the flame has stabilized, in fact at the ignition it could measure higher values of CO which could affect the measurements.
  • Page 68 FX-BX 101G CO2% Range CO2% CO ppm minimum 10,1% ± 0,5 0÷100 Maximum 10,3% ± 0,8 0÷100 minimum 10,4% ± 0,5 0÷100 Maximum 10,0% ± 0,8 0÷100 minimum 11,1% ± 0,5 0÷100 G25.1 Maximum 10,9% ± 0,8 0÷100 minimum 13,1% ±...

  • Page 69: Recommended Combustion Values (Fx/Bx 2018)

    4.4.7. Recommended combustion values (FX/BX 2018) Following values must be followed when unit has new elements: combustion control board+blower+B200 burner FX-BX 61G CO2% Range CO2% CO ppm 8,8% ± 0,5 0÷100 G20 (CH 10,4% ± 0,8 0÷100 9,0% ± 0,5 0÷100 9,4% ±...
  • Page 70 FX-BX 82G CO2% Range CO2% CO ppm 9,2% ± 0,5 0÷100 G20 (CH 9,1% ± 0,8 0÷100 8,7% ± 0,5 0÷100 9,7% ± 0,8 0÷100 9,3% ± 0,5 0÷100 G25,1 10,8% ± 0,8 0÷100 9,3% ± 0,5 0÷100 G25,3 10,8% ±...

  • Page 71: Gas Board Parameters

    4.4.8. Gas board parameters This adjustment must be carried out only and exclusively after contacting Service Angelo Attention: never increase the maximum blower speed over the value set by the factory. In case of tampering, the warranty is void Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 72 Board Parameters FX-BX GAS 2018 V max (rpm - %) FX101G FX61G FX82G FX122G FX202G Range FX201G 6400 6600 100 6400 6000 6500 100 G25 - G25.1 - 7000 6600 100 6400 5800 6600 100 G25.3 5500 ÷ 7000 6600 5700 100 5800 5500...

  • Page 73: Problems During The Test Setup Wizard

    4.5. Problems during the test setup wizard 1. Increase the pressure adjustment (PR.ADJ.) until the oven stays on at the minimum 2. Check type of gas and inlet gas pressure. 3. Check gas nozzle. The oven at minimum 4. Check the gas pipe fixing. turns off 5.

  • Page 74: Installation Report

    4.6. Installation report When first installed, the installer must fill in all parts of the following installation report and send it to "Angelo Po" within 7 days for the activation of the Warranty. It presents data connection, and in particular must show the power supply, if possible, the mains water pressure (and other available data, e.g.
  • Page 75 Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 76: Gas Alarms

    4.7. Gas alarms GAS alarms table Code PROBLEM SOLUTION 1. Check the spark generator and spark plug wirings/connection. 2. Check that the high-voltage cables do not discharge to ground. The blower fan is working but there 3. Check the spark plug ground cable connection is no ignition spark 4.
  • Page 77 GAS alarms table Code PROBLEM SOLUTION Internal breakage of the E12:F10 Replace the combustion control board combustion control board Check the wirings to the flame sensor. If necessary E12:F11 Flame signal detected before start replace the combustion control board. Flame signal detected after the Check the wirings to the flame sensor.

  • Page 78: Combustion Gas Periodic Inspection

    4.7.1. Combustion gas periodic inspection For gas ovens only, a warning is provided for the analysis of fumes (CO2 and CO): at the end of 2500 working hours from the last execution of the "GAS setup" procedure, each time the oven is switched on, an "Att" "Ctr" "GAS" warning appears. This warning is eliminated only after the completion of the "gas setup"...

  • Page 79: Washing Cycles

    5. WASHING CYCLES 5.1. Washing circuit operating and components of BXW The washing circuit consists of the following components: • Non-return valve (in the water inlet assembly) prevents the contamination of the water mains. If there is a decompression in the water supply network the valve drains the fluid outside of the circuit downstream of itself, preventing a possible flow back into the water network.
  • Page 80 LEVEL SENSOR TO THE SPRINKLERS MIXING TANK WATER INLET DRAINAGE PRESS. SWITCH SOLENOID VALVE DETERGENT DISPENSER MANOMETER SANITIZER DISPENSER WATER SOLENOID VALVE PRESSURE REDUCER TO SIPHON NON RETURN VALVE WATER DRAIN Copyright by Servizio Clienti ANGELO PO Spa...
  • Page 81 NOTE: The rubber hose that leads to the condensation to the siphon is fitted with a diaphragm closing the branch connection to the drain circuit of the washing. In case of replacement, before proceeding to the assembly must drill the diaphragm with a bit of appropriate diameter (Ø...

  • Page 82: Functional Diagram Of Washing Circuit

    5.1.1. Functional Diagram of Washing circuit In general, the washing cycle has the following stages: 1 – initial rinsing 2 – detergent sprinkling 3 – intermediate rinsing 4 – sanitizer sprinkling 5 - final rinsing 6 - drying All these stages are separated by operating at low temperature with steam to soften the fat in the cooking chamber.
  • Page 83 In the more intensive cleaning programs, the dosing of the cleaning products is repeated several times depending on the program. Available cleaning programs: The detergent and sanitizing distribution is made as follows: • Product load. The pump sends the chemicals into the empty tank, this phase takes a few minutes.
  • Page 84 Rinsing is accomplished by operating the solenoid water for several minutes. The water circulates through the tank and the dispensing circuit, and finally is distributed in the chamber through the sprinklers. The circuit is also fitted the following safety: • Water pressure switch: it is downstream of the solenoid water and detects the presence of pressure in all the phases in which the water valve is open (or supply rinsing detergent / sanitizer).

  • Page 85: Clean Test

    5.1.2. Clean test The Clean Test procedure is used to verify the functioning of the washing system. To enter, with the oven in STOP, press the RESET + WASH keys until the word "CLT" appears. To proceed and to move step by step, press the "Humidity" key. It consists of 4 steps: Step 1 –...
  • Page 86 Step 3 – rinsing During this stage it is possible to check that there are no leaks in the connections of the pipes, no obstructions into the nozzles and that the water pressure is regulated. The level sensor have to switch in ON. Step 4 –...

  • Page 87: Recommended Procedure

    5.1.3. Recommended procedure 1. Activate the Clean Test. 2. Proceed directly to the activation of STEP 3. 3. Check on the display the level sensor switches its status from OFF to ON. 4. Check the pressure of the rinse circuit (min 1.5 - max 2.0 bar). 5.

  • Page 88: Washing Interruption

    5.1.4. Washing interruption If a washing is interrupted, appears "int" and the oven remains in the washing menu (it is impossible to access the cooking menus). To be able to exit the washing menu it is necessary to carry out one of these operations: •...

  • Page 89: Washing Alarms Table

    5.1.5. Washing alarms table Washing cycle control alarms table Alarm Problem Solution code The washing cycle has been interrupted because the float didn’t Check the pipe position and the level of cleaner in the tank; top up if necessary and restart the washing switch during the detergent load cycle.
  • Page 90 Problems during the "CLEAN TEST" Check pump wiring. Check voltage on pole 68 on During phase 1 the detergent pump power board. Check fuse F1. Check power supply on doesn’t work. (the motor doesn’t pump cables. Chamber temperature must be under turn).
  • Page 91 Problems during the "CLEAN TEST" Check the pressure of water supply, check that the injectors are still present in the chamber, check the During Phase 3 the water reaches pressure regulator (it must be calibrated to 1.5 bar), the tank regularly but it appears the check wiring and switching of pressure switch (must alarm E26.

  • Page 92: Washing Consumption Table

    5.1.6. Washing consumption table Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 93: Components And Functioning Of Bx Washing System 1St And 2Nd Gen

    5.2. Components and functioning of BX washing system 1st and 2nd gen. In the 1st and 2nd generation ovens, the operation of the system works in this way: the oven automatically heats and keeps at the most suitable temperature for the softening of the cooking residues, but the application of the washing product and rinsing must be done manually by the operator when CLE and H2O appears on the display.
  • Page 94 The operation of the circuit is similar to the FM: the oven is running automatically heated and holding the temperature most suitable for washing and rinsing, while the application of the chemicals must be done manually by the operator when the display shows the CLE. The automatic rinsing is made simultaneously by opening the solenoid valves for rinsing and steam production.
  • Page 95 Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 96: Cle And Dec Warning

    5.4. CLE and dEC Warning Washing: after 12 hours of cooking and without having ever run a Semiautomatic washing program, the oven shows the following WARNING on the display: If the operator does not wash the oven within 12 hours, the warning reappears. Descaling: after 15 hours of use of the steam mode and without having ever run a Semiautomatic washing program, the oven shows the following WARNING on the display: If the operator does not wash the oven within 15 hours, the warning reappears.

  • Page 97: Dismantle And Reassembly Components

    6. DISMANTLE AND REASSEMBLY COMPONENTS 6.1. Encoder To replace the encoder, follow the instruction below: 1. Encoder from the back (PIC 1); 2. Encoder from the front; remove the knob and the silicon protection (PIC 2) and fixing nut (PIC 3); 3.

  • Page 98: Motor

    6.2. Motor Proceed as follows to replace the motor: 1. front left side view of the motor from the component compartment (PIC 1); 2. to disassemble the motor, loosen the fixing screw (PIC 2), the only fixing between the motor shaft shaft and the fan (it may be necessary to heat the shaft and the hub).

  • Page 99: Door Micro-Switch

    6.3. Door micro-switch To replace the door micro-switch, follow the instruction below: 1. micro-switch position in the dashboard inner side (PIC 1); 2. to access and replace the micro, remove the air inlet plate located under the dashboard (PIC 2); PIC 1 PIC 2 NOTE: the magnet for the micro switch is inside the door assembly.

  • Page 100: Door Glass Frame Disassembly

    6.4. Door glass frame disassembly Once the door is open, release the glass and remove the screw and nut of the hinges (upper and lower) and then remove the glass frame Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 101: Component Compartment Cooling System

    6.5. Component compartment cooling system Explanation of the cooling system of the component compartment with relative cleaning of the air intake slots: 1. component compartment cooling fan (PIC 1) always ON even even with the oven in the STOP mode; 2.
  • Page 102 PIC 3 PIC 4 PIC 5 NOTE: If the cooling motor breaks the following alarm will appear: “components compartment over temperature E10” (see chapter Alarms). Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 103: Door Adjustment

    6.6. Door adjustment The correct adjustment of the door (models BX 61/101/82/122) is verified in three points: 1 - To check the adjustment on the right, measure the distance between the inner edge of the door and the panel with a gauge (calliper), as shown in the following two figures (PIC 1 and 2).

  • Page 104: Halogen Bulb Replacement

    6.7. Halogen bulb replacement 6.7.1. New system of fixing bulb The new system of fixing lamp differs from the current system in the following positions: -Threaded inserts (nutser) will no longer be mounted on the camera but on a supporting frame -The lamp holder is mounted on a supporting frame and this remains entirely outside the room (i.e.
  • Page 105 The sealing system inside the room (frame/glass/seal) remains unchanged. The assembly needs the use of silicon as now. Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 106: Bulb Replacement With The New System

    6.7.2. Bulb replacement with the new system Replacement lamp with the new system can be done in two different ways: 1) From the internal side Removing frame, glass and gasket from the inside ... The lamp holder and its frame remain in place thanks to the two studs.

  • Page 107: Handle Replacement

    6.8. Handle replacement To replace the complete handle, remove the 3 screws inside the door. Remember to add Loctite medium thread locker 243 on each screw Copyright by Servizio Clienti ANGELO PO Spa...

  • Page 108: Spark Plug Replacement

    6.9. Spark plug replacement To replace the spark plug, follow the instruction below: 1. Disconnect the ignition and flame sensor wires from the spark plug (picture 1). 2. Disconnect the ground terminal (PIC 2). 3. Unscrew the nuts on the spark plug fixing pins (PIC 3). 4.

  • Page 109: Blower Fan Replacement

    6.10. Blower fan replacement To replace the blower fan follow the instruction below: 1. Unscrew the 3 screws, then the 4 nuts on the bench (PIC 1) 2. Unscrew the 2 front screws and loosen the rear one (PIC 2) 3.

  • Page 110: Gaskets: Service Circular 2016_02 Of 03/10/2016

    6.11. GASKETS: Service Circular 2016_02 of 03/10/2016 OBJECT: seals/gaskets codes oven models FX-BX The spare parts codes of the following seals/gaskets were subject to change, so from 10/10/2016 you have to order the new code according to the oven model. The new seals will be in GRAPHITE and no longer in...
  • Page 111 New spare part code: 3332560 Note : the modification of gasket p/n 36E2990 involves also the oven out of production model FM… Models: FX/BX82 FX/BX122 FX202 FX201 Old spare part code: 3115280 New spare part code: 3332570 Breather pipe gasket Models: FX/BX61 FX/BX101...

  • Page 112: Scheduled Recommended Maintenance

    6.12. Scheduled recommended maintenance Every two Yearly years Cleaning air intakes Check components compartment cooling fans working Check motorized valve status and working Check core probe status and working (where present) Check door gasket and steam leakage during cooking. Visual check of the cooking chamber Check tightening of the fan fixing screw Cleaning siphon and drain lines Cleaning of water intake filter...

  • Page 113: Alarms

    7. ALARMS 7.1. Alarm Table BX standard Display Problem Solution Note Note for Service Check correct working conditions of chamber water solenoid valve and pressure switch. Check the Check that fuse F5 (1 A). Pressure Switch mains water is connection: Common is connected present or Convection No water in the...
  • Page 114 The oven functions are enabled and See paragraph “CLE and dEC Informs that Perform therefore it is Warning” cleaning is required cleaning possible to carry out cooking cycles The oven functions are Informs that enabled and See paragraph “CLE and dEC Perform descaling is therefore it is...
  • Page 115 Check that the motor-operated valve is not blocked. Check the Switch on the fuse F5 (1 A). Positioning micro- oven again and Convection and The motor-operated switch connection: Common is if the problem steam cooking valve is not connected to fuse F5 and normally persists inform cycles can still positioned correctly.
  • Page 116 The chamber heating will be The oven’s temporarily disabled. Check the Electrical functions are The oven solves panel board cooling fan. Remove component enabled so the problem on and clean the air gratings located compartment has cooking cycles its own. on the front of the oven.

  • Page 117: Alarm Table Bx-W

    7.2. Alarm Table BX-W Display Problem Solution Note Note for Service Check correct working conditions of chamber water solenoid valve and pressure switch. The Check that terminals Common and Normally mains water is Open of pressure switch must be present or Convection No water in the connected with wires 37 and 40 to...
  • Page 118 Open or close The cooking the oven door. cycle does not Check the door magnetic micro Inform the after- start until the switch, to be correctly connected Oven door opening sales service if door has been to the power PCB by wires 42 and or closure request.
  • Page 119 Check the discharge temperature Drain probe fault Convection and probe. It must have a resistance of Alert the after- steam cooking about 1100 Ohm at 25°C. It is CCC: Short circuit sales service. cycles are connected to poles 48 and 49 of ---: Open circuit possible.
  • Page 120 Connect and Press reset disconnect the Check the vacuum probe. The button. Check if vacuum probe resistance value must be about the vacuum only when the 1100 Ohm at 25°C. The probe is The vacuum probe probe is oven is not connected to the terminals 50 and has failed.
  • Page 121 The oven’s PCB temperature probe failure. functions are Electronic circuit Replace the power board or the Inform the after- disabled so no board diagnostics CPU board. sales service. cooking cycles tripped. E14V = CPU can be carried E14Q = power board out.

This manual is also suitable for:

Angelo po bx61eAngelo po bx101eAngelo po bx82eAngelo po bx122eAngelo po bx61erAngelo po bx101er ... Show all

Table of Contents

Save PDF
