Save This Manual for Future Reference
Original Instruction

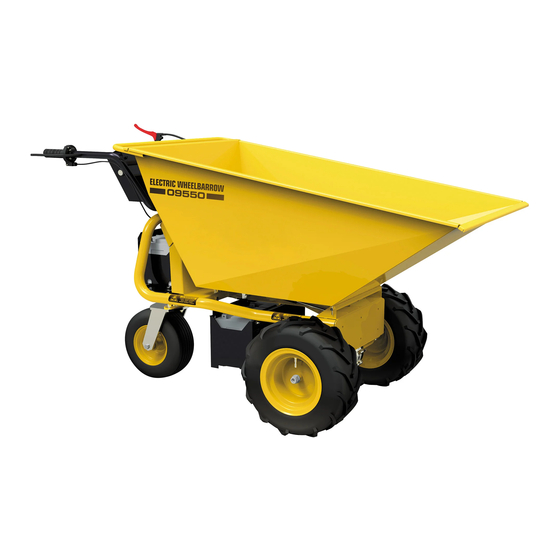

Battery Powered Barrow
Operator's Manual
MODEL NUMBER :
09550
SERIAL NUMBER :
Both model number and serial number may be found on the main label.
You should record both of them in a safe place for future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE
OPERATING MACHINE
Advertisement
Table of Contents
Summary of Contents for TOPMAQ COBA0400
- Page 1 Save This Manual for Future Reference Original Instruction Battery Powered Barrow Operator’s Manual MODEL NUMBER : 09550 SERIAL NUMBER : Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use. FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE...
-
Page 2: Table Of Contents
Specifications TABLE OF CONTENTS Item No. 09550 Introduction Specifications Motor 1000W Symbols Hopper Capacity 240 L Safety Load Capacity 500 kg General Safety Rules Forward speed 0~6 km/h Specific Safety Rules Reverse speed 0~1.5 km/h Contents Supplied Drive Wheels 4.00-8 Assembly Know your Machine Steer Wheels... -
Page 3: Symbols
SYMBOLS RECYCLING AND DISPOSAL T h e r a t i n g p l a t e o n y o u r m a c h i n e m a y This marking indicates that this show symbols. These represent important product should not be disposed with other household wastes. - Page 4 MAX. 20% Caution! The maximum parking angle is Risk of leakage of lead acid 20%. MAX. 20% solution! MAX. 30% Danger! Keep bystanders away. MAX. 30% Risk of explosion and fire, avoid short circuits! Metal parts of the battery cell are always live, therefore do not place foreign objects or tools on the battery.
-
Page 5: Safety
Remove any adjusting key or wrench before SAFETY turning the machine on. A wrench or a General Safety Rules key left attached to a rotating part of the machine may result in personal injury. R e a d a l l s a f e t y w a r n i n g s , Do not overreach. - Page 6 Service U s e t h e b a t t e r y p o w e r e d b a r r o w i n accordance with these instructions, taking Have your battery powered barrow serviced into account the working conditions and the by a qualified repair person using only work to be performed.
- Page 7 Whenever possible, use level areas for Engage the lock-out system when not in use. stopping, loading and unloading and never The lock-out system prevents unwanted, leave machine unattended on a slope. The powered use of the machine, such as by machine is more unstable when resting on a children or other untrained or unauthorized slope than when resting on a level surface.
-
Page 8: Specific Safety Rules
Specific Safety Rules Pay the utmost attention when working on frozen ground as the machine may tend to skid. Thoroughly inspect the area to be worked, keep the working area clean and free of debris Do not operate the machine in confined areas to prevent tripping. -
Page 9: Contents Supplied
CONTENTS SUPPLIED The battery powered barrow wheelbarrow comes partially assembled and is shipped in carefully packed package. After all the parts have been removed from the package, you should have: OPTIONAL 1. Main Frame 2. Driving Wheels 3. Steer Wheel 4. -
Page 10: Assembly
Driving Wheels Assembly ASSEMBLY Remove the bolts, nuts and washers pre- This battery powered barrow was partially screwed on flanges. assembled at the factory. To assemble your Slide one wheel onto the axle, making sure machine follow the below instructions. the side with inflation nozzle on the hub faces outwards. - Page 11 Steer Wheel(s) Assembly Hopper Assembly Screw out the pre-mounted bolts from the Screw out the pre-mounted bolts on wheel(s) base plate of the chassis. Place the hopper bracket. onto the base plate, align the holes and fix it Mount the rear wheel(s) to the main frame as with the bolts, washers and nuts.
-
Page 12: Know Your Machine
KNOW YOUR MACHINE Features and Controls Direction Toggle Switch Battery Capacity Display Electric Key Switch Safety Lever Hopper Tipping Lever Hopper Speed Regulating Handle Electric Motor Battery Unit Steer Wheel Battery Charging Port Driving Wheel Battery POwered BarrOw... - Page 13 Electric Key Switch After tipping the load, swing the lever forward Turn the key switch 1/4 turn clockwise to to lock the hopper. close the circuit and start the electric motor. Turn the key switch anticlockwise to break the circuit and switch off the electrical system. Battery Capacity Display The capacity display shows the voltage and remaining capacity of the batteries.
-
Page 14: Operation
Operation Moving backward Release the speed regulating handle and Before using toggle the direction switch backwards." " Check before turning on the machine and Pressing the safety lever on left handlebar, make sure r o t a t e t h e s p e e d r e g u l a t i n g h a n d l e anticlockwise to move the barrow backwards. -
Page 15: Maintenance
After finishing charging, cut off the mains Adjustment of Hopper Locking Cable power supply, unplug the charger's connection After long time use, the cable will be stretched cable B and plug power cable A back to the and get longer, which will cause the hopper to original position. - Page 16 direct sunlight. For a long service life of the batteries, storage at a room temperature of approx. 15 - 20 ° C is advantageous. With unfavorable weather condition, we recommend removing the batteries from the machine and storing them in closed rooms Adjusting Bolt until the next use.
-
Page 17: Storage
Battery Replacement Lubrication(For Optional Dual Steer Wheels Kit Only) If the batteries are no longer functional, This dual steer wheels kit is already lubricated replace with new batteries as following at factory, so no need to lubricate before use. instructions. After using for a period of time, if the wheels Battery type: 4 x 12V/25AH lead-acid batteries do not rotate flexibly, add grease through... -
Page 18: Trouble Shooting
keep the batteries in a charged state (55 - Failure to observe can lead to 75%) in a dry room. deep discharge of the batteries. No • C harge the battery once a month. Before guarantee can be given for deeply charging, check the cables for dirt and loose discharged batteries. -
Page 19: Parts Schedule
PARTS SCHEDULE OPTIONAL Battery POwered BarrOw... -
Page 20: Parts Lists
Optional Dual Steer Wheel Kit Parts List Description Q'ty Description Q'ty Hopper Hex Bolt M12x180 Bearing 6304-2RS (Included in Handle Frame steer wheel) Hopper Tipping Lever Rotating Shaft Left Handle Sleeve Base Plate Speed Regulating Handle Sleeve for Rotating Shaft Safety Lever Cotter Pin Ball Knob M8x25... - Page 21 Description Q'ty Description Q'ty Key A 5x50 Screw M4x12 Driving Wheel (Left) Nut M4 Electric Motor Washer 4 Screw M3x20 Spring for Braking Plate (Big) Nut M3 Circlip 47 Washer 20 Chassis Thin Nut M20x1.5 Mounting Plate Spring Washer 8 Shaft Cap Spring Washer 6 Rubber Shock Absorber...
- Page 22 Description Q'ty Screw M10x20 Screw M8x45 Screw M6x16 Cotter Pin 3x35 Washer 8 Axle Flange Optional Dual Steer Wheel Kit Description Q'ty Wheels Main Bracket Mounting Plate Steer Wheel Bracket Axle Sleeve Spring Pin Handle Shaft Cap Locknut M10 Bearing 6004-2Z Locknut M20 Washer 20 Bearing 32004...
- Page 23 Battery POwered BarrOw...
