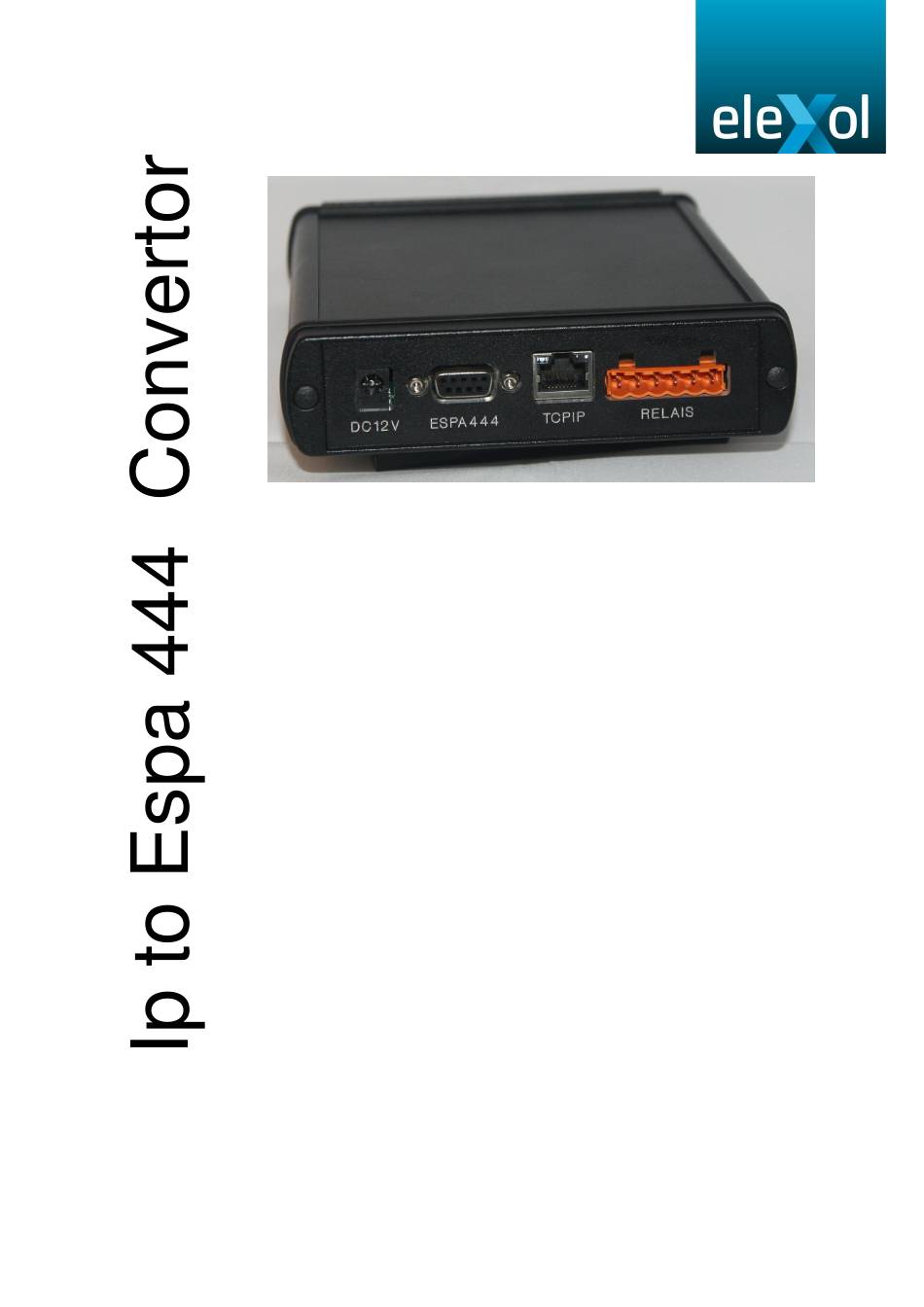

- Page 1 Setup the Espa 444 Convertor. www.elexol.nl Manual Ip to ESPA 444 converter Page 1 Date: 7 may 2013...
-
Page 2: Table Of Contents
Connect to the TCP/IP network Connect to the ESPA444 equipment Connect the power Connect the output-relays Opening the cab for the status leds The status leds Using the diagnoseport Manual Ip to ESPA 444 converter Page 2 Date: 7 may 2013... -
Page 3: Connect To The Tcp/Ip Network
More status information on the TCP/IP port can be found behind the cab on the other side of the housing. See Page 7 of this document for further explanation. Manual Ip to ESPA 444 converter Page 3 Date: 7 may 2013... -
Page 4: Connect To The Espa444 Equipment
More settings, like baudrate and more, are beïng setup via TCP/IP or the RS232 diagnoseport. For further information see the associated document. For status information about the communication via ESPA4.4.4. see page 7 of this document. Manual Ip to ESPA 444 converter Page 4 Date: 7 may 2013... -
Page 5: Connect The Power
Connect the power to the converter: The power supply of the Converter is 12V DC. It is advised to use the power supply shipped with the con- verter. Manual Ip to ESPA 444 converter Page 5 Date: 7 may 2013... -
Page 6: Connect The Output-Relays
1: Relay 1 Common 2: Relay 1 Normally Open 3: Relay 1 Normally Closed 4: Relay 2 Common 5: Relay 2 Normally Open 6: Relay 2 Normally Closed Manual Ip to ESPA 444 converter Page 6 Date: 7 may 2013... -
Page 7: Opening The Cab For The Status Leds
To open the cover, press it to the upward position (marked 1) and open it by using a screwdriver on the top side of the cover (marked 2). Manual Ip to ESPA 444 converter Page 7 Date: 7 may 2013... -
Page 8: The Status Leds
XML: Flashes on each recognised command via TCP/IP. RxD: Flashes if data is received from the ESPA4.4.4. equipment. TxD: Flashes if data is transmitted to the ESPA4.4.4. equipment. Manual Ip to ESPA 444 converter Page 8 Date: 7 may 2013... -
Page 9: Using The Diagnoseport
If needed, the Converter can be set up using the ConfigTool-IP. It is also possible to get diagnostic information out of the converter in case of problems. Connect the 9 pole subd to the laptop with a straight forward (1 on 1) 9 pole cable. Manual Ip to ESPA 444 converter Page 9 Date: 7 may 2013...
