Summary of Contents for BXB Electronics HDS-720
- Page 1 HDS-720 Network AV Controller User Manual BXB ELECTRONICS CO., LTD.
-
Page 2: Table Of Contents
Index １ Safety Instructions..........２ Rear Panel............４ System Diagram..........Image Display............ ５ System..........Remote Control １２ ６ Log In............ １３ ８ Network......Equipments..........１４ ９ EquipmentsˍCamera....IO......１５ EquipmentsˍFCS..... Update....... １６ Setting of Image Tracking......１０ All Presets....Appendix １７... -
Page 3: Safety Instructions
Safety Instructions Please read the instruction manual carefully before installing and using the apparatus. Please save the instruction manual well for reference. Please follow the instructions and aware of warning indications. Except your dealer, please do not use any spare parts recommended by others. Please use the fixing accessories provided by BXB. -
Page 4: Rear Panel

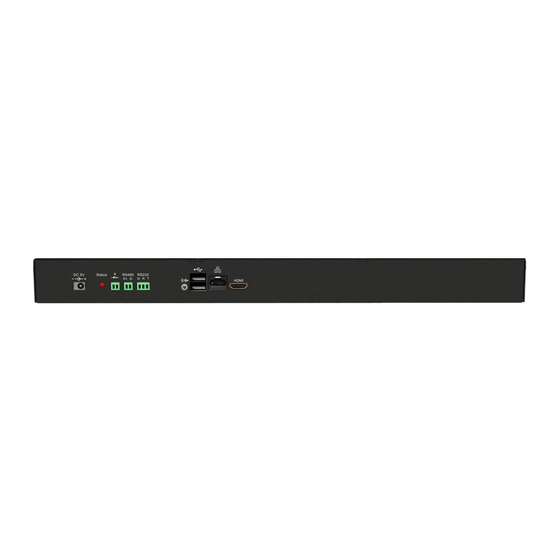

Rear Panel Power supply: connect with AC100-230V to DC-5V adapter. Power status indicator: turn on when the power status is normal; turn off when there’s the abnormal condition of power supply. Trigger contact IN: the preserved contact. RS-232 port: for connecting with BXB’s conference MCU RS-485 port: for connecting with HDK-700 Compact Camera Controller (TX+ &... -
Page 5: System Diagram
System Diagram ３... -
Page 6: Image Display
HDS-720 Network AV controller machine required HDMI signal output to the monitor with HDMI input. It will show the camera’s image. Connecting HDS-720 to the monitor’s HDMI input with HDMI cable, and switching the monitor to HDMI channel. ４... - Page 7 Open internet browser. Enter the IP address to the adress. For example: Chrome、 Microsoft Edge or Firefox, etc. Entering the IP of HDS-720 to the address to connect to the web-control surface. After log in to the control website, log in with the account and password.
-
Page 8: Remote Control
Remote control_Log in first time First time log into HDS-720’s web control, system ask the user to set the conference system and camera first. Click “Setting now” to go “Equipments” to set up the camera and conference unit. Log in first time need to set the equipment first. -
Page 9: Equipments
Equipments ７... - Page 10 “Online” means the IP camera camera. image. working normally, you can control and receive the image from camera. “Offline” means HDS-720 can’t receive the signal from IP camera, unable to control and preview the camera. “ to close the preview window. Click”...
- Page 11 6350 communication status. “Online” means the FCS-6350 normally, you can do the camera tracking. “Offline” means HDS-720 can’t receive the signal from FCS-6350, unable to do the camera tracking.. Check the IP address of FCS- 6350 in the front panel.
- Page 12 Camera Tracking Setting １０...
- Page 13 Camera Tracking Setting Camera tracking setting page is able to preview and control each camera. Setting the location for each microphone makes the conference system able do the camera tracking. The microphone ID with the location setting will show in green like “...
- Page 14 Camera Tracking Setting It has the location setting of microphone ID *1. Camera ID’s color also able to check the status of each camera. It didn’t set any location. Microphone ID (* is chairman unit) White ” ”: It’s online status. Able to control and set the camera.
-
Page 15: System
System １３... - Page 16 System＿NETWORK HDS-720 network setting can choose whether DHCP or static IP address. Open “Obtain IP Automatically” to set the system as DHCP. For the DHCP system, open “Show IP on screen” to see current IP on starting image. Turn off “Obtain IP Automatically”, need to To set the DHCP function, check “Obtain IP Automatically”...
- Page 17 System＿IO Connecting HDS-720 with UFO/EDC conference unit by RS-232 also able to do the camera tracking. With the BXB UFO series, choose “UFO-2050”. With BXB EDC series, choose “EDC-1051” to do the camera tracking. ※ EDC series don’t have the function of “HOME GO”.
- Page 18 System＿UPDATE “Now version” shows the firmware version now, check the online clouds with internet to check if there’s any update. If there is, online update is also available. Connecting HDS-720 with internet to do the online update. １６...
- Page 19 System＿ALL PRESETS ALL PRESETS allows you to check all the preset microphone of each camera in the system. To delete specific or all the camera’s preset setting, clicking the icon to remove. “ in each camera will delete all Click” After delete the preset location of each Once deleting the presets the setting of selected camera preset...
- Page 20 Appendix＿HDC-713 Camera Setting Log in to the web control through browser like Chrome, Microsoft Edge ro Firefox. Enter the IP of HDC-713 to log into web remote control. Default account/password of HDC-713 is admin/00000. Go to “Setting”>”Network” to setup the Open the web control of IP camera, log To check the IP address of in with account and password.
- Page 21 Contact Us BXB Electronics Co., Ltd., 6F-1, No.288-5, Xinya Rd., Qianzhen Dist., Kaohsiung City 80673, Taiwan TEL：+886-7-970-3838 FAX：+886-7-970-3883 E-mail：bxb@bxb.tw １９...
