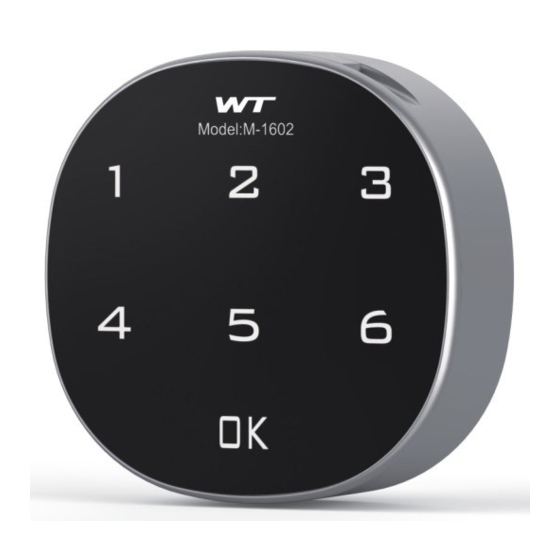

WT-M-1602-30

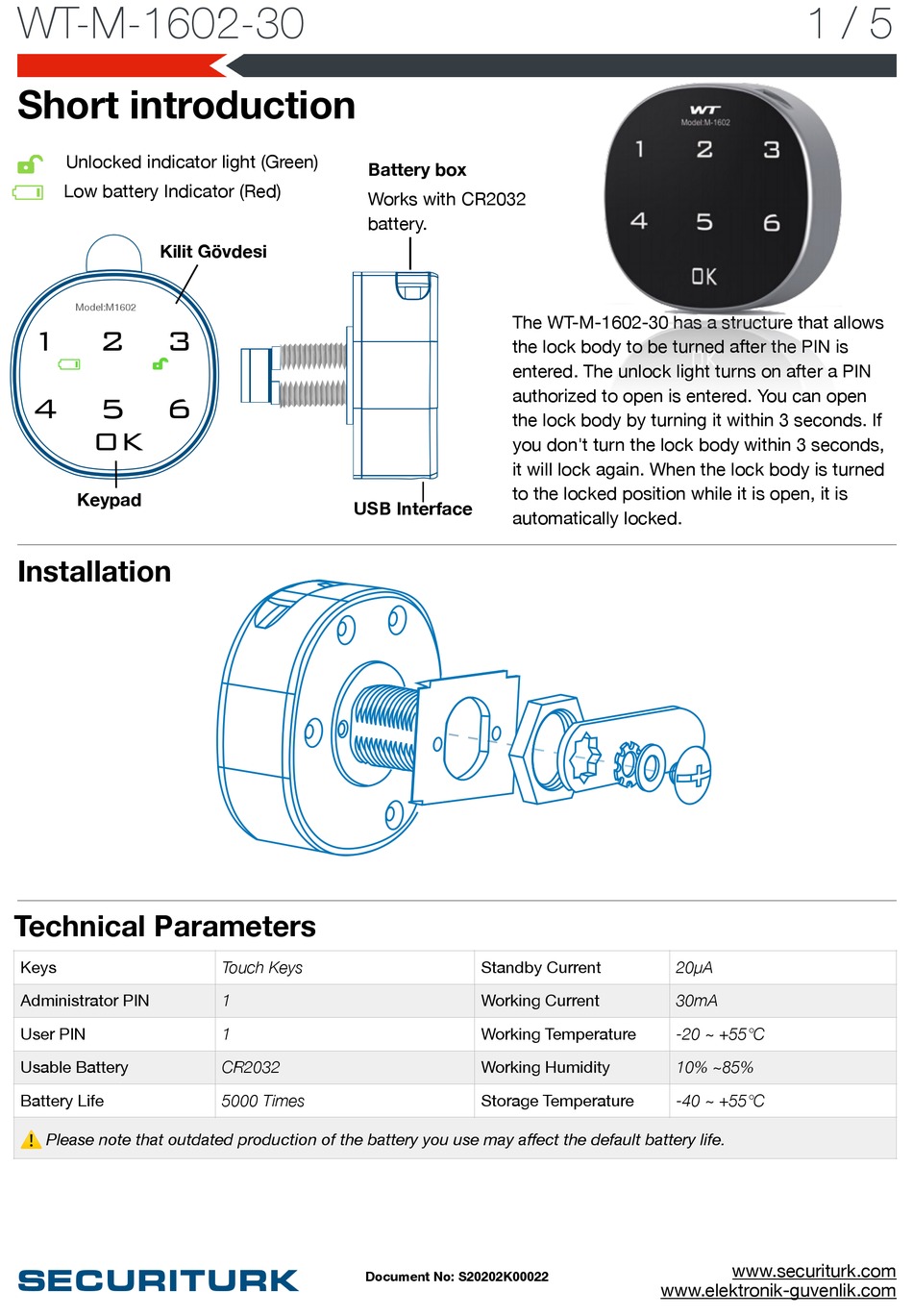

Short introduction
Unlocked indicator light (Green)
Low battery Indicator (Red)
Kilit Gövdesi
Model:M1602
1
2
3
4
5
6
OK
Keypad
Installation
Technical Parameters
Keys
Administrator PIN
User PIN
Usable Battery
Battery Life
⚠ Please note that outdated production of the battery you use may affect the default battery life.
SECURITURK
USB Interface
Touch Keys
1
1
CR2032
5000 Times
Battery box
Works with CR2032
battery.
The WT-M-1602-30 has a structure that allows
the lock body to be turned after the PIN is
entered. The unlock light turns on after a PIN
authorized to open is entered. You can open
the lock body by turning it within 3 seconds. If
you don't turn the lock body within 3 seconds,
it will lock again. When the lock body is turned
to the locked position while it is open, it is
automatically locked.
Standby Current
Working Current
Working Temperature
Working Humidity
Storage Temperature
Document No: S20202K00022
1 5
20µA
30mA
-20 ~ +55℃
10% ~85%
-40 ~ +55℃
www.securiturk.com
www.elektronik-guvenlik.com
/
Advertisement
Table of Contents
Summary of Contents for WT WT-M-1602-30
- Page 1 Works with CR2032 battery. Kilit Gövdesi Model:M1602 The WT-M-1602-30 has a structure that allows the lock body to be turned after the PIN is entered. The unlock light turns on after a PIN authorized to open is entered. You can open the lock body by turning it within 3 seconds.
- Page 2 WT-M-1602-30 How to use WT-M-1602-30 comes from the factory with 4321 administrator PIN. Before you start using it, you must change the factory-assigned passwords. Two different PIN can be registered in the lock, one as administrator and one user. The administrator PIN is authorized to define the user PIN or reset the lock to factory settings.
- Page 3 WT-M-1602-30 Usage 3.Unlock & Lock 3.1. Unlock Enter your user PIN and tap OK. • The unlock light turns on and you hear a beep. • The lock body becomes free. You can unlock the lock by turning the lock body clockwise.
- Page 4 6. Enabling & Disabling Public Access In cases where you do not want to share your own PIN with anyone else, you can set the unlocking PIN for the WT-M-1602-30 for one-time use and open it to public access. 6.1.Enabling Public Access Enter the user PIN and tap OK.
- Page 5 WT-M-1602-30 7.2.Disabling Scramble code Key in the user PIN and then tap OK. • It beeps once and the unlock light turns on. • Press and hold OK for more than 2 seconds and the unlock light starts flashing. •...
