Summary of Contents for EPS eSoft Pro
- Page 1 Water Softener Installation Manual...
- Page 2 Introduction Thank you for purchasing your eSoft Pro Water Softener. The Clack CI valve with which your water softener is fi tted has been selected to provide the best effi ciency & performance possible. Only attempt this installation if you have been trained on the installation of water softeners.
- Page 3 Programming your water softener To connect the power cable you need to firstly remove the cover, then remove the drive bracket assembly by pressing up on the drive brackets release tabs and pulling towards you. (Fig 1) Feed the cable through the back plate (Fig 2) and connect to PC board (Fig 3).
- Page 4 Pre Filter & eSoft PRO 10L.pdf 22/10/2020 08:28 Schematic 16 - Pre Filter & eSoft PRO 10L.pdf 22/10/2020 08:28 This schematic outlines the best way to check the correct layout and installation of your eSoft water cabinet. ter & eSoft PRO 10L Pre Filter &...
- Page 5 Specification Softener Specification 8 x 13 8 x 17 8 x 24 10 x 35 Total Height 523mm 625mm 800mm 1095mm Total Depth 440mm 440mm 440mm 580mm Width 240mm 240mm 240mm 350mm Maximum working pressure 5 bar 5 bar 5 bar 5 bar Minimum working pressure 1.7 bar...
Need help?
Do you have a question about the eSoft Pro and is the answer not in the manual?
Questions and answers

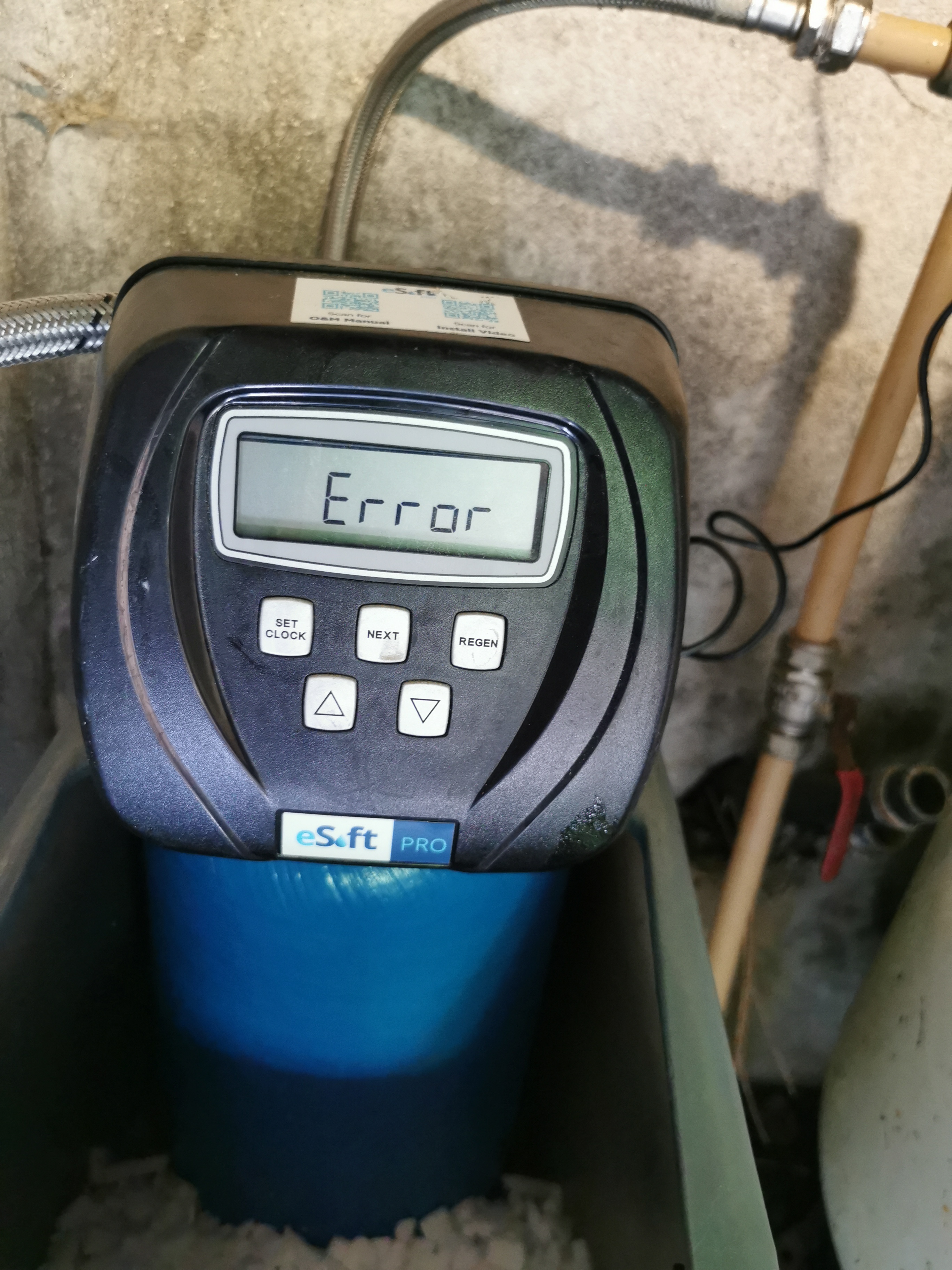

What's the error 103 that's comes on the screen and how do I reset it
