Description of the device
The device (Aerosol Inhalation Monitor) is designed to enable a medical professional to objectively
assess in detail how the test subject uses an inhaler. This detailed knowledge allows the medical
professional to assess and coach the test subject in perfecting their inhalation technique.
Main Components of the Device:
1.
Single-use disposable DPI inhaler simulator
2.
Single-use disposable MDI inhaler simulator (also
required for spacer)
3.
Silicone tubing
4.
Power button
5.
DPI simulator button
6.
MDI simulator button
7.
Spacer simulator button
8.
Ready to inhale
9.
Flow lights
10.
Canister activation (MDI)
11.
Inhalation time lights
12.
Breath-hold lights
13.
End of breath-hold button
14.
Battery low light
15.
MDI placebo canister (re-use until empty)
16.
Inhaler technique summary display

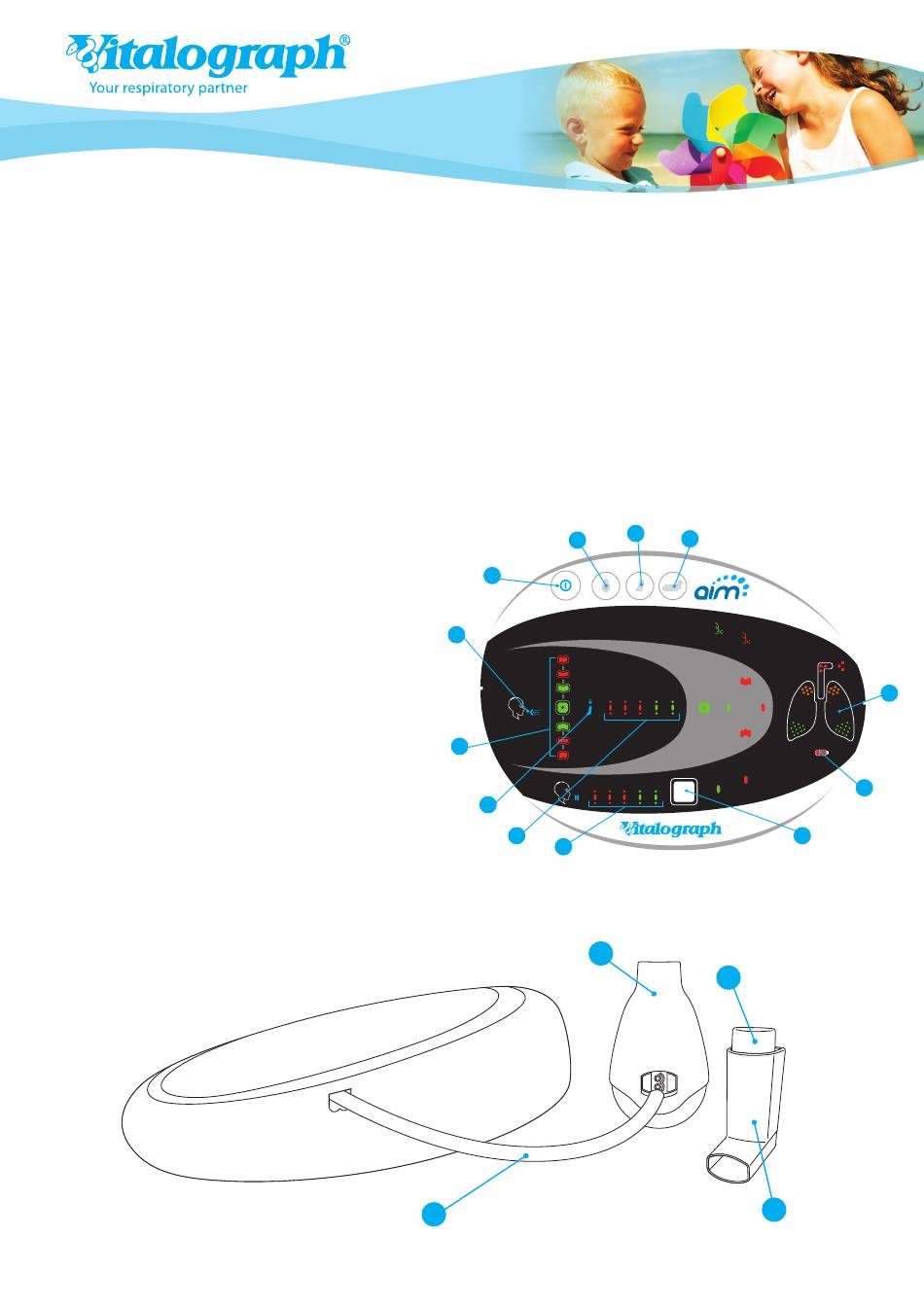

Image No. 1
5
4
8
9
10
11
12
1
3
6
7
13
Image No. 2
15
2
16
14
Advertisement
Related Manuals for Vitalograph AIM
Summary of Contents for Vitalograph AIM
- Page 1 Vitalograph AIM Aerosol Inhalation Monitor Description of the device The device (Aerosol Inhalation Monitor) is designed to enable a medical professional to objectively assess in detail how the test subject uses an inhaler. This detailed knowledge allows the medical professional to assess and coach the test subject in perfecting their inhalation technique.
- Page 2 DPI Simulator: Instruct the test subject to take a forceful deep breath in until their lungs are full. The flow lights (9) will light up. The aim is to get the flow indicator into the green zone as quickly as possible, but not to inhale If the battery light (14) comes on the batteries need to be replaced.
