Opella Torbeck Variflush Installation Manual

Opella Torbeck Variflush Installation Manual

Drop valve

Advertisement

STAGE 3
Testing and adjustments
1
To adjust full flush water volume, rotate the float down to increase the volume of water
flushed, or upward to reduce it.
2
To adjust partial flush water volume, slide lever at variflush base to the left to decrease the
volume of water flushed, or to the right to increase it.
3
Ensure desired flush is achieved prior to refitting lid.
For servicing of the variflush valve
the base of the unit remains in place.
Simply separate the unit by twisting as
in stage 2 of the fitting instructions.
Please retain these instructions
for reference.
Opella Limited
Twyford Road, Rotherwas Industrial Estate, HEREFORD HR2 6JR, England.
t: +44 (0) 1432 357331 f: +44 (0) 1432 264014 w: www.opella.co.uk e: sales@opella.co.uk
3
2
1
** Some cisterns have a larger
diameter hole for the button
please see this diagram.
installation guide
LF00139
fitting instructions
drop valve
• Adjustable height
• Push button cable control
• Dual flush with full
& partial adjustment
• Internal overflow
• Easy to install:
Fits most cisterns
• Made in the UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torbeck Variflush and is the answer not in the manual?

Questions and answers

wendy laynton
July 11, 2025

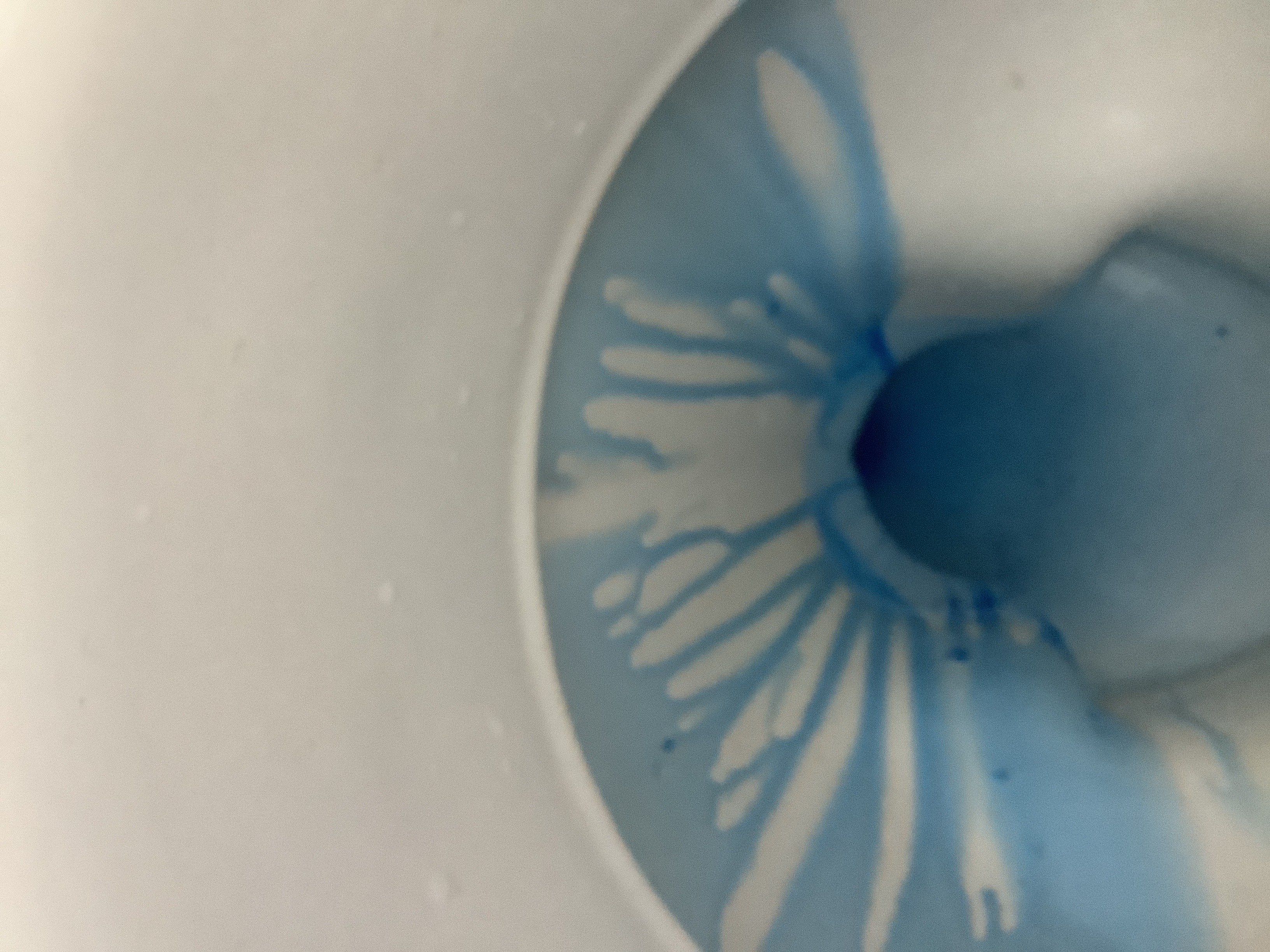

I have replaced the variflush seal and there is still flow into the toilet, a bit less but still leaking! I cleaned everything before putting back together . How do I stop it leaking and causing my water tank to refill constantly.

User image 687126d52b21d
Michael Ciotkowski
June 15, 2025

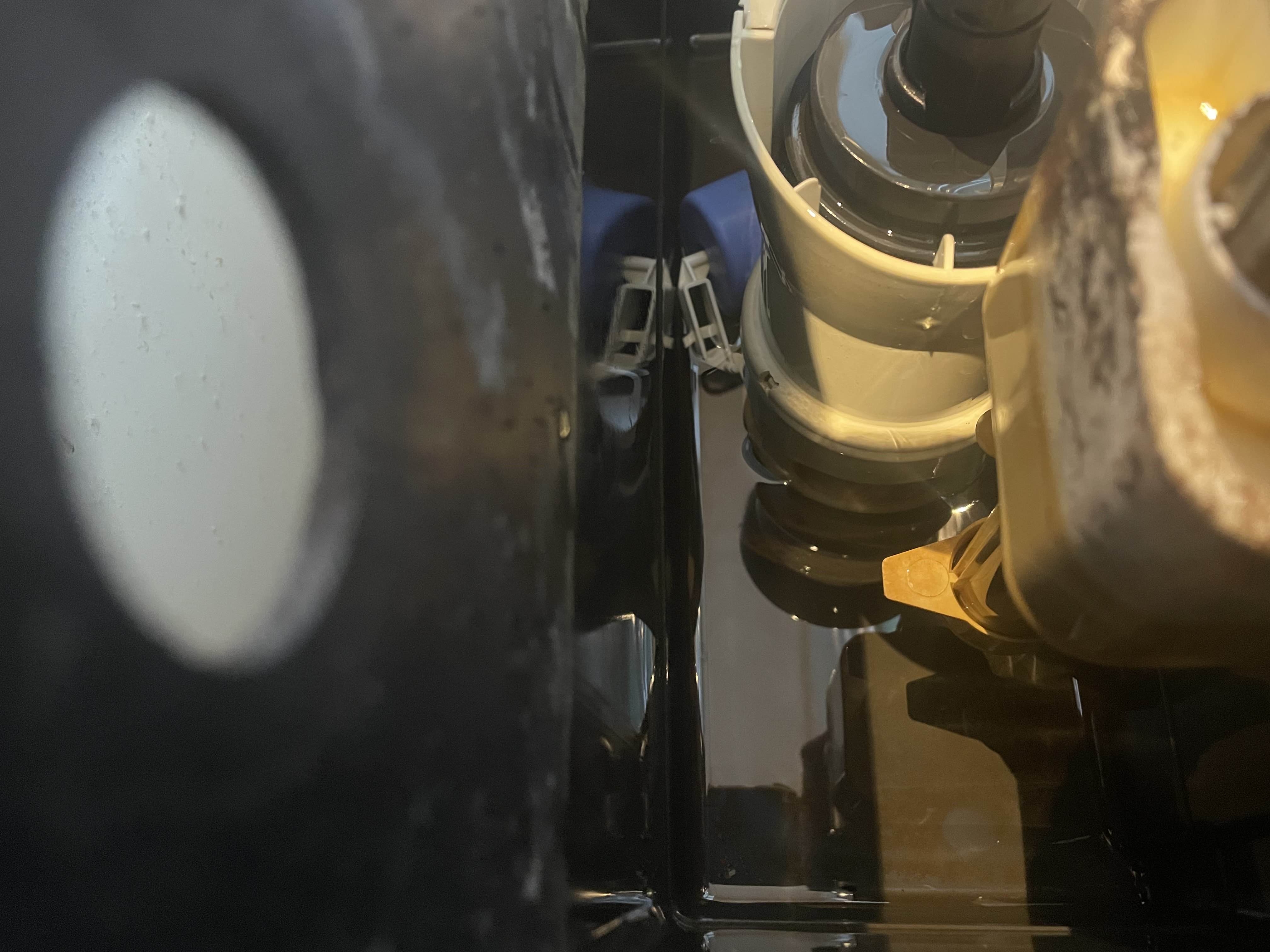

Hello, the open float cup has become disconnected the value and the system will not flush from the button. Is there a way to put the float cup back into the system without having to disconnect the entire system

User image 684ec3b860b93

Summary of Contents for Opella Torbeck Variflush

  • Page 1 Simply separate the unit by twisting as in stage 2 of the fitting instructions. Please retain these instructions for reference. Opella Limited Twyford Road, Rotherwas Industrial Estate, HEREFORD HR2 6JR, England. t: +44 (0) 1432 357331 f: +44 (0) 1432 264014 w: www.opella.co.uk e: sales@opella.co.uk LF00139...
  • Page 2 STAGE 1 STAGE 2 Pre-installation Fitting your Torbeck Variflush valve ® ® Turn off water supply to cistern and remove cistern lid. Taking the variflush drop valve in both hands, twist clockwise and separate. While still full, mark the normal water level on the inside of the cistern. Fit the base of the valve into Flush the cistern and remove all remaining water with a sponge or cloth.
