Pike Evolution Series Operator's Manual page 24

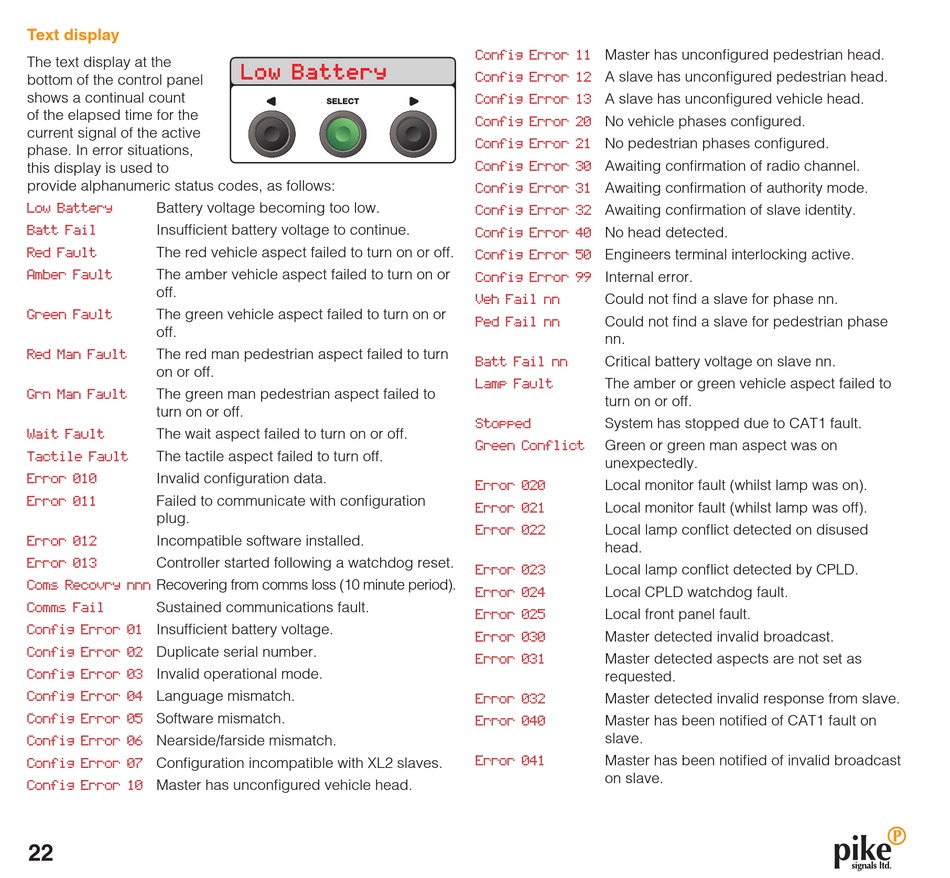

Text display
The text display at the
bottom of the control panel
shows a continual count
of the elapsed time for the
current signal of the active
phase. In error situations,
this display is used to
provide alphanumeric status codes, as follows:
Battery voltage becoming too low.
Low Battery
Insufficient battery voltage to continue.
Batt Fail
The red vehicle aspect failed to turn on or off.
Red Fault
The amber vehicle aspect failed to turn on or
Amber Fault
off.
The green vehicle aspect failed to turn on or
Green Fault
off.
The red man pedestrian aspect failed to turn
Red Man Fault
on or off.
The green man pedestrian aspect failed to
Grn Man Fault
turn on or off.
The wait aspect failed to turn on or off.
Wait Fault
The tactile aspect failed to turn off.
Tactile Fault
Invalid configuration data.
Error 010
Failed to communicate with configuration
Error 011
plug.
Incompatible software installed.
Error 012
Controller started following a watchdog reset.
Error 013
Recovering from comms loss (10 minute period).
Coms Recovry nnn
Sustained communications fault.
Comms Fail
Insufficient battery voltage.
Config Error 01
Duplicate serial number.
Config Error 02
Invalid operational mode.
Config Error 03
Language mismatch.
Config Error 04
Software mismatch.
Config Error 05
Nearside/farside mismatch.
Config Error 06
Configuration incompatible with XL2 slaves.
Config Error 07
Master has unconfigured vehicle head.
Config Error 10
22
Master has unconfigured pedestrian head.
Config Error 11
A slave has unconfigured pedestrian head.
Config Error 12
A slave has unconfigured vehicle head.
Config Error 13
No vehicle phases configured.
Config Error 20
No pedestrian phases configured.
Config Error 21
Awaiting confirmation of radio channel.
Config Error 30
Awaiting confirmation of authority mode.
Config Error 31
Awaiting confirmation of slave identity.
Config Error 32
No head detected.
Config Error 40
Engineers terminal interlocking active.
Config Error 50
Internal error.
Config Error 99
Could not find a slave for phase nn.
Veh Fail nn
Could not find a slave for pedestrian phase
Ped Fail nn
nn.
Critical battery voltage on slave nn.
Batt Fail nn
The amber or green vehicle aspect failed to
Lamp Fault
turn on or off.
System has stopped due to CAT1 fault.
Stopped
Green or green man aspect was on
Green Conflict
unexpectedly.
Local monitor fault (whilst lamp was on).
Error 020
Local monitor fault (whilst lamp was off).
Error 021
Local lamp conflict detected on disused
Error 022
head.
Local lamp conflict detected by CPLD.
Error 023
Local CPLD watchdog fault.
Error 024
Local front panel fault.
Error 025
Master detected invalid broadcast.
Error 030
Master detected aspects are not set as
Error 031
requested.
Master detected invalid response from slave.
Error 032
Master has been notified of CAT1 fault on
Error 040
slave.
Master has been notified of invalid broadcast
Error 041
on slave.
