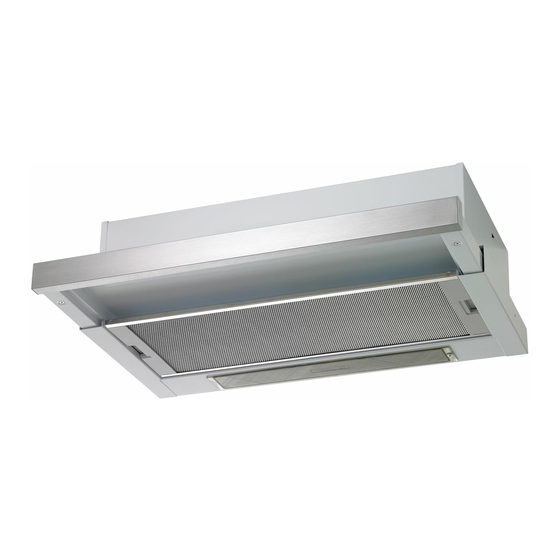

- Page 1 Rangehoods c oo k ing Installation and User Manual CRR612SB, CRR612WB, CRR612DB...
- Page 2 WELCOME CONTENTS Thank you for purchasing this appliance. You’ve chosen Important safety instructions a product that brings with it decades of professional Installation experience and innovation. Ingenious and stylish, it has Operation and maintenance been designed with you in mind. So whenever you use Warranty it, you can be safe in the knowledge that you’ll get great results every time.
- Page 3 SAFETY INSTRUCTIONS Please read the user manual carefully and store in a CAUTION handy place for later reference. Pass the user manual on to possible new owners of the appliance. • Accessible parts may become hot when used with cooking appliance. Read the following carefully to avoid damage or injury.
- Page 4 INSTALLATION Standard ducting installation Parts supplied with hood It is recommended that the unit be positioned at a 1 × Duct Spigot minimum of 600mm for an electric cooktop and 650mm 4 × M6 × 40 screws for a gas cooktop, and no further from the cooktop than 4 ×...
- Page 5 INSTALLATION Drilling holes Fixing flue pipe Drill the holes on top wooden support. Fix a 125mm diameter noncombustible rigid flue pipe. • drill Ø7 hole Fix flue pipe to the exhaust transition duct. Use cable ties • drill Ø45 hole or aluminium tape to secure flue pipe to the duct spigot.
- Page 6 OPERATION IMPORTANT! Remove filters for cleaning The Edison Screw lamps may have come loose 1. Slide filter tray forward 1cm. during transportation. 2. Push in clip on either side to release filter. Fig 1. Ensure that lamps are tightened firmly into the 3.
- Page 7 Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: CHEF RANGEHOODS (d) damage to the Appliance caused by: This document sets out the terms and conditions of the product warranties for Chef Appliances. It is an important document. Please (i) negligence or accident; keep it with your proof of purchase documents in a safe place for (ii) misuse or abuse, including failure to properly maintain or service;...
- Page 8 like to know more? For further information on all Chef appliances, or to obtain detailed dimension and installation information, call into your Retailer, phone or email our Customer Care team or visit our website: Australia phone: ............13 13 49 fax:............1800 350 067 email: ......
