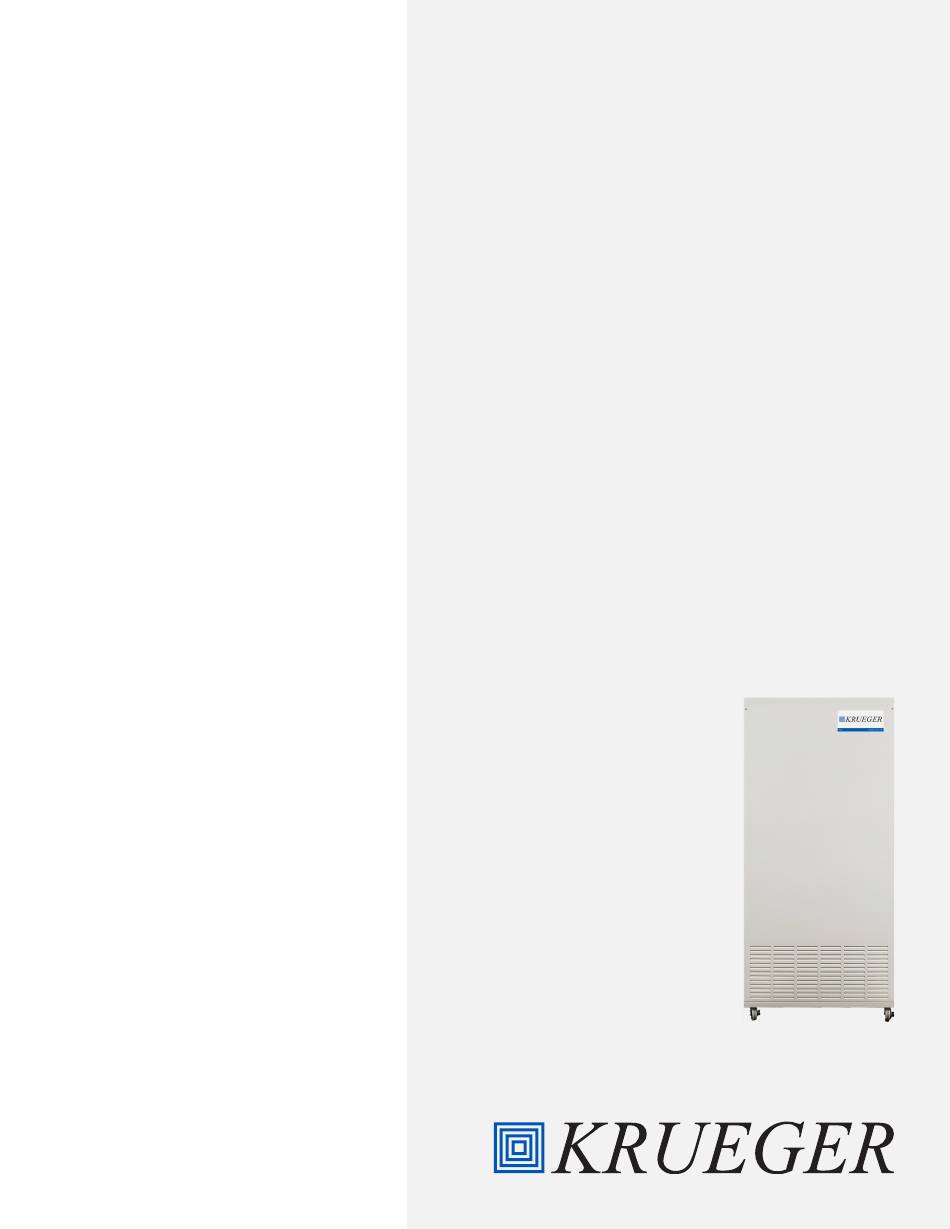

- Page 1 WWW.KRUEGER-HVAC.COM PAC SERIES AIR CLEANERS PAC MAX Installation, Operation, and Maintenance Manual...
-
Page 2: Table Of Contents
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL TABLE OF CONTENTS SECTION ONE - INTRODUCTION ..............3 Features ......................3 Options .......................3 Applications .......................3 SECTION TWO - INSTALLATION ...............4 SECTION THREE - OPERATION ..............5 Initial Start-Up ....................5 Airflow Adjustment ..................5 Filter Status Indicator ..................5 Recirculation Mode ..................5 Total Exhaust Mode (Negative Pressure) ...........5 SECTION FOUR - MAINTENANCE &... -
Page 3: Section One - Introduction
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION ONE - INTRODUCTION The PAC MAX is a portable, self-contained high efficiency particulate air (HEPA) filtration system with an optional ultraviolet lamp that helps to disinfect the filter face. The PAC MAX is designed to easily and economically create a negative pressure isolation room or be used as a positive pressure clean air recirculating system for a large variety... -
Page 4: Section Two - Installation
Krueger immediately. equipment. 3. Lift the PAC MAX off the shipping pallet. Move the unit to 3. Before servicing or cleaning unit, unplug the unit power the desired location. -
Page 5: Section Three - Operation
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION THREE - OPERATION INITIAL START-UP TOTAL EXHAUST MODE (NEGATIVE PRESSURE) CAUTION: To reduce risk of fire and to properly exhaust 1. Connect the power cord to a standard 115 v, 1-phase, 60 Hz, grounded power source. -
Page 6: Section Four - Maintenance & Service
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION FOUR - MAINTENANCE & SERVICE PARTS IDENTIFICATION REMOVAL OF FRONT PANEL To access the prefilter, HEPA filter, UV light, or motor/blower assembly, the front panel will need to be removed. To remove the front panel perform the following. -
Page 7: Primary Filter Replacement
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION FOUR - MAINTENANCE & SERVICE (CONTINUED) PRIMARY FILTER REPLACEMENT Reference the CDC for appropriate precautions required for handling HEPA filters. A regular maintenance program should include procedures for installation, removal, and disposal of filter elements and a program to monitor the HEPA filter for possible leakage and for filter loading. -
Page 8: Removal Of The Uv Light Assembly
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION FOUR - MAINTENANCE & SERVICE (CONTINUED) REMOVAL OF THE UV LIGHT ASSEMBLY WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before Warning relamping or servicing. -
Page 9: Relocated A Contaminated Unit
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION FOUR - MAINTENANCE & SERVICE (CONTINUED) 7. Determine the temperature and humidity inside the unit. RELOCATING A CONTAMINATED UNIT 8. The temperature should be 21.1°C (70°F) or higher with a NOTE: Use proper protocol, gowning, and protective humidity level between 60% to 85%. -
Page 10: Section Five - Troubleshooting
3. Confirm the setpoint is set to a value that will allow the motor/blower to run. Recommended to change the position for confirmation. 4. Authorized personnel can check power switch and transformer for appropriate power. Contact Krueger for more in- depth troubleshooting, if required. Replace or repair faulty component(s). -
Page 11: Section Six - Miscellaneous
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION SIX - MISCELLANEOUS WIRING DIAGRAM... -
Page 12: Replacement Parts
PAC MAX AIR CLEANER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SECTION SIX - MISCELLANEOUS (CONTINUED) REPLACEMENT PARTS PAC MAX SPECIFICATIONS • Dimensions: 57.75” H x 26.18” W x 24.75” D, 1467 H x 665 TABLE 1 -PAC MAX W x 629 D (mm) PART NO. -
Page 13: Section Seven - Limited Warranty
(i) Buyer’s payment of the purchase price in full, CONTACT KRUEGER (ii) Buyer giving written notice of the defect, reasonably For warranties, replacement parts, technical support, or any described, to Seller within ten (10) days of the time when other questions please contact us at the following. - Page 14 YOUR RESOURCE FOR AIR DISTRIBUTION AND EQUIPMENT SOLUTIONS Let us know how we can assist you in your next building application. For more information, contact your local Krueger representative or visit us on the web at www.krueger-hvac.com. CRITICAL ROOM SOLUTIONS...
