Mini-X-OEM User Manual Rev D2

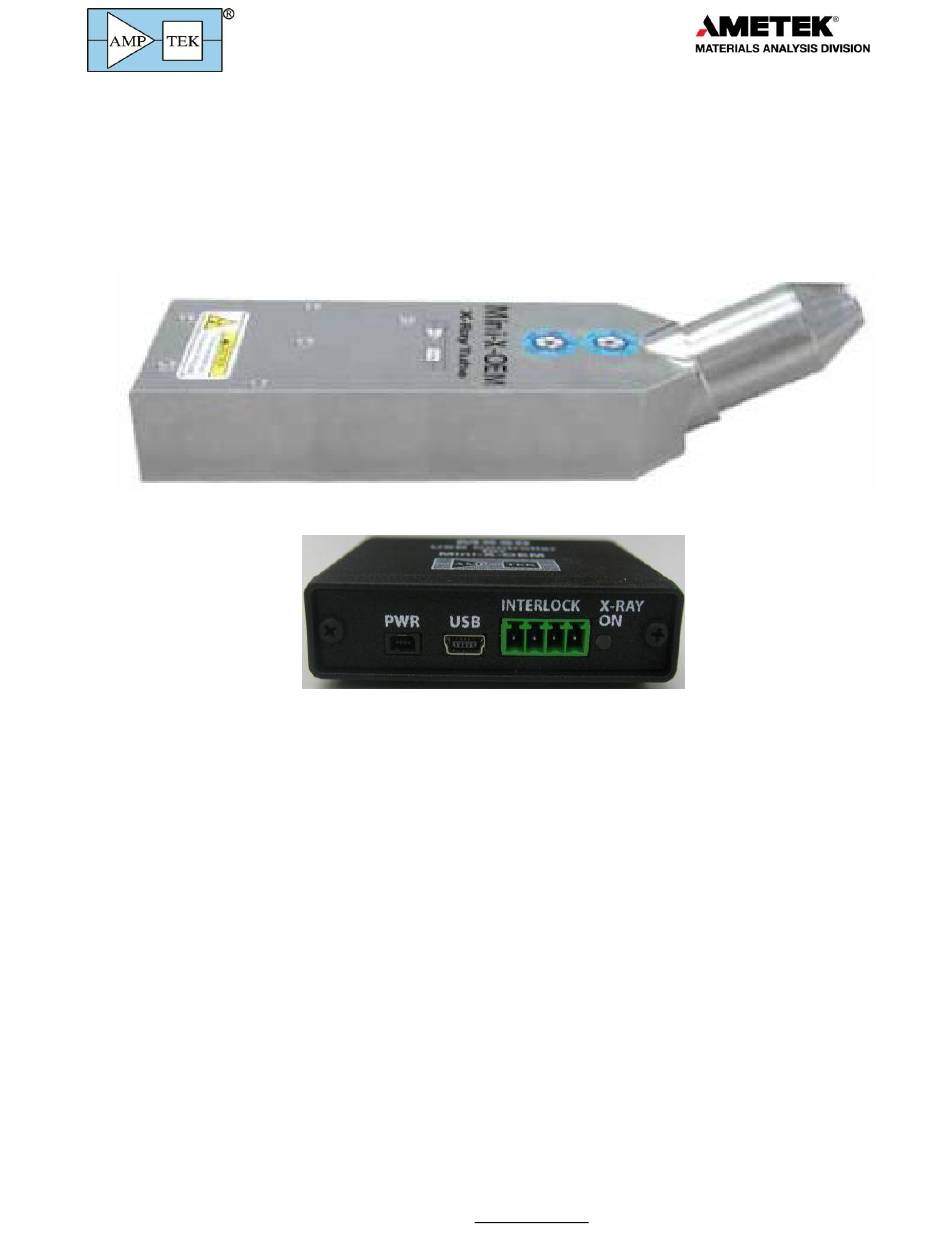

Mini-X-OEM X-Ray Tube
MX-50 Controller
Amptek, Inc.
14 DeAngelo Drive
Bedford, MA 01730
PH: +1 781 275 2242
Fax: +1 781 275 3470
www.amptek.com
Send sales and technical questions to Amptek.Sales@ametek.com
The Mini-X is based on the Newton Scientific Inc. miniature X-ray source.
AMPTEK, Inc.
14 DeAngelo Drive, Bedford, MA 01730-2204 USA
+1 781 275-2242 Fax: +1 781 275-3470 www.amptek.com Amptek.Sales@ametek.com
Advertisement
Table of Contents
Summary of Contents for Amptek Mini-X-OEM
- Page 1 Fax: +1 781 275 3470 www.amptek.com Send sales and technical questions to Amptek.Sales@ametek.com The Mini-X is based on the Newton Scientific Inc. miniature X-ray source. AMPTEK, Inc. 14 DeAngelo Drive, Bedford, MA 01730-2204 USA +1 781 275-2242 Fax: +1 781 275-3470 www.amptek.com Amptek.Sales@ametek.com...
-
Page 2: Table Of Contents
Beryllium Window ......................... 3 Heat and Temperature ........................4 Prop65 Warning ..........................4 Introduction ............................4 Description of Mini-X-OEM and MX-50 Controller ............... 4 Options and Variations ......................... 5 Specifications ............................5 Mini-X-OEM Specification table ....................5 MX-50 Specification table ......................7 Output X-Ray Spectra ........................ -
Page 3: Precautions
High Voltage The Mini-X-OEM is designed to generate voltages up to 50 kV. The high voltage system is fully shielded inside the Mini-X-OEM enclosure. DO NOT ATTEMPT TO ACCESS OR MODIFY THE HIGH VOLTAGE SYSTEM. -
Page 4: Heat And Temperature
The ambient temperature surrounding the X-ray tube must not exceed 50 C. Improper cooling is the single highest cause of X-ray tube failures and is not covered under the Mini-X-OEM Warranty. It is the user’s responsibility to provide an adequate cooling system for the Mini-X-OEM. -
Page 5: Options And Variations
Mini-X-OEM User Manual Rev D2 The Mini-X-OEM has been designed to simplify the XRF process by providing a grounded anode, variable current and voltage controlled via USB and ease of operation. It features a 50 kV/80 µA power supply, a gold (Au), silver (Ag), rhodium (Rh), or tungsten (W) transmission target, and a beryllium end window. - Page 6 Figure 2. Mini-X Isopower. The current and voltage must be set in accordance with this curve or the Mini- X may be severely damaged. Damage of this kind is not covered under warranty. Amptek’s control software limits the power to this curve. If one commands the system to a power exceeding the power limit, the software will use the commanded HV and rollback the current to meet the power limit.
-
Page 7: Mx-50 Specification Table
Mini-X-OEM User Manual Rev D2 MX-50 Specification table Power Consumption Up to 20 W Input Voltage 12 VDC (AC adapter included) Control USB, mini-USB connector (cable included) Setting Time Typical < 1 s Weight 360 g Humidity 30 to 90% non-condensing Operating Temperature -10 °C to +50 °C... -
Page 8: Mechanical Interface
Mini-X-OEM User Manual Rev D2 Mechanical Interface Dimensions Figure 4. Mini-X-OEM mechanical dimensions in inches [mm]. Figure 5. Brass cover dimensions (in mils/mm). This holds the safety plug or collimators and filters. Mini-X-OEM Connector See section 4.1 for drawing and pinout. -
Page 9: Connectors
Figure 6. Front (left) and rear (right) connector panels of the MX-50. Front panel Mini-X-OEM Connector and pinout match that in section 4.2 for the Mini-X-OEM. See section 5.1 for the voltages for the MX-50 variants. Page 9 of 21... -
Page 10: Mounting
The Mini-X-OEM can be fastened using the mounting holes and brackets that are provided. Cooling The Mini-X-OEM requires proper and adequate cooling for maximum life. As such, it is the user’s responsibility to provide a cooling design, such that the ambient temperature of the X-ray tube does not exceed 50 C. -
Page 11: Electrical Interface
Power Interface Nominal input voltage 6 to 12 VDC Absolute Maximum Power Supply Voltage +12.5 VDC Absolute Minimum Power Supply Voltage + 6.0 VDC Input power outside this range will damage Mini-X-OEM components. MX-50 Voltages NAME MX-50 MX50.10 MX-70 12 VDC... -
Page 12: Software Interface
The MX-50 contains a speaker and an LED, both of which indicate that the X-ray tube is turned on. The LED is visible on the back side of the MX-50 package, but in some applications the Mini-X-OEM and MX-50 is inside an enclosure. Pins 3 and 4 can be used to drive an external indicator, such as the LED sketched above. - Page 13 If your computer is not on the Internet or your Firewall or Administrative settings prevent automatic installation, then you will need to install the drivers manually. The drivers are on the installation CD and can be downloaded from Amptek’s website. Go to the "Mini-X Drivers" directory and run the appropriate "dpinst" file for your OS.
-
Page 14: Operating The Mini-X-Oem With Mx-50
110/220 AC power outlet. Figure 7. Output X-Ray 4. Remove the safety plug from the cover attached to the Mini-X-OEM. Either install the collimator cone. into the cover or leave the cover empty. Re-attach the cover to the Mini-X-OEM. - Page 15 THE MINI-X IS NOW PRODUCING X-RAYS 11. The Mini-X-OEM will start to beep and the red LED on the end panel of the unit will flash. In addition the yellow and black “Radiation Symbol” will blink in the Mini-X Software and the words “X-Ray ON”...
-
Page 16: Mini-X-Oem Design
Mini-X-OEM User Manual Rev D2 14. To turn off the Mini-X-OEM click the HV OFF button, then click the Exit button to exit the software. Always unplug the Mini-X-OEM, install the safety plug, and disable the interlock when not in use. -
Page 17: Brass Safety Plug
When the brass safety plug is installed in the cover (figure 16, middle) and screwed onto the Mini-X- OEM it meets the radiation safety requirements of Section 1.2. For personal protection always install the safety plug into the cover and attach to the Mini-X-OEM when not in use. The Mini-X-OEM ships from the factory in this configuration. -
Page 18: Radiation Levels And Example Shielding
XRF from the shielding material. CAUTION: The Mini-X-OEM is only one component of an X-ray instrument. It is the responsibility of the user, the OEM customer, or experimenter to provide a fail-safe metal enclosure to prevent escaping radiation while using this product. The final product (turn-key system) must comply with local government regulations to protect personnel from exposure to radiation. - Page 19 Note also that these pins can provide the power to the HVPS and to the monitor/control circuits. For customers who do not want to use the AC/DC supply provided by Amptek, these pins on J3 may be used as an alternate power supply connection. Note that the input power is 12 VDC and must go to both pins 1 and 2 (pin 2 supplies the HVPS while pin 1 supplies the control circuits).
- Page 20 Mini-X-OEM User Manual Rev D2 Figure 18. Schematic of the interlock and alarm portion of the Mini-X Control and Monitor circuitry. Page 20 of 21...
-
Page 21: Warranty
2000 hours, whichever comes first. AMPTEK, INC. will, without charge, repair or replace (at its option) a defective instrument upon return to the factory. This warranty does not apply in the event of misuse or abuse of the instrument or unauthorized alterations or repair.
