Summary of Contents for Chord 2yu

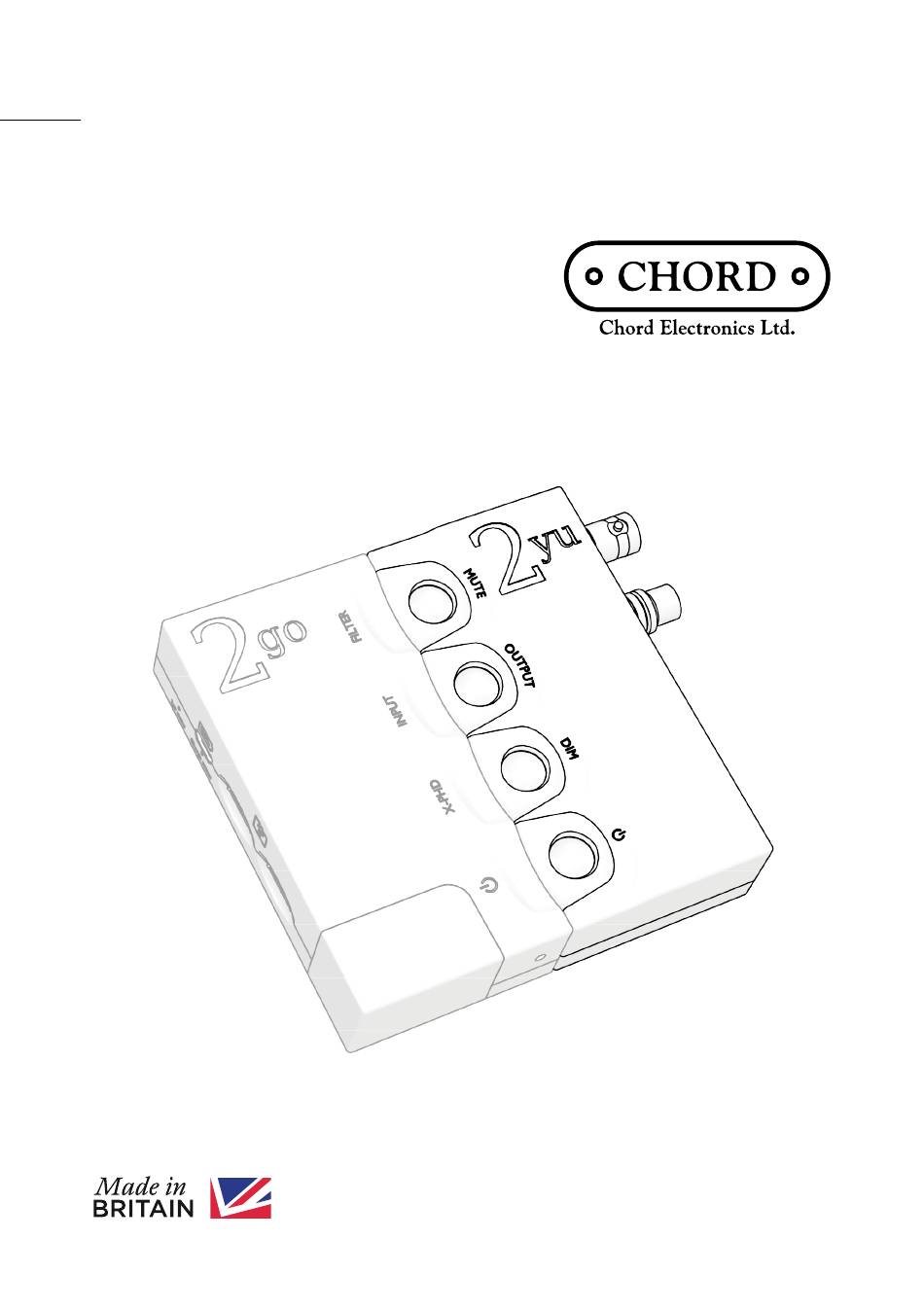

- Page 1 Chord Electronics The Pumphouse, Farleigh Lane, East Farleigh, Kent, Product Communication | English ME16 9NB. Great Britain. +44 (0) 1622 721 444 info@chordelectronics.co.uk chordelectronics.co.uk Manual...
-
Page 2: Table Of Contents
Chord Electronics 2yu | User manual Content Introduction Registering 2yu Product description Connecting 2yu to 2go Connecting 2yu to an audio system Powering on 2yu Selecting an output Mute Dimmer function Set-up Technical specifications... -
Page 3: Introduction
2yu | User manual 2 Introduction This user manual is intended for 2yu users. It contains all the information necessary to safely and successfully use 2yu. The user manual describes 2yu and provides the essential user instructions related to everyday use. -
Page 4: Registering 2Yu
• Register your 2yu via the Chord Electronics website: www.chordelectronics.co.uk/register-product • Registering your product helps us to provide you with the best possible after-sales support. In the unlikely event of a claim, you must first contact your supplying dealer. -
Page 5: Product Description
Chord Electronics 2yu | User manual Product description 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC- equipped device or the Hugo M Scaler. Features Please take a moment to familiarise yourself with 2yu’s main features:... -
Page 6: Connecting 2Yu To 2Go
Chord Electronics 2yu | User manual 5 Connecting 2yu to 2go To connect 2yu to 2go: 1. Before operating 2yu with 2go, the devices must be docked. Failure to correctly dock the devices may cause damage. Using the locking pins... -
Page 7: Connecting 2Yu To An Audio System
2yu | User manual 6 Connecting 2yu to an audio system 2yu features an array of digital outputs including: USB Type-A; BNC coax; RCA coax and optical. Using a high-quality cable, connect 2yu’s digital output/s to the corresponding digital input/s on the chosen partnering equipment (DAC, DAC-equipped device or the Hugo M Scaler). - Page 8 NOTE Occasionally, some higher-input sample rates may illuminate 2yu’s ‘MUTE’ button. This means the output selected on 2yu cannot deliver the input sample rate, or a downsampled rate. Refer to the table above for full details. NOTE...
-
Page 9: Powering On 2Yu
Connect the included 5 V 2 A Micro USB adapter to a wall outlet and insert the Micro USB cable into 2go. A green power LED should be displayed; a red power LED indicates 2yu is off. Do not use any third-party power supplies as they may damage the product and will void the warranty. -
Page 10: Selecting An Output
Before proceeding, please choose which output you will be using with your connected DAC. If using the USB output, ensure you have connected your DAC and powered it on before proceeding with the set-up. The 2yu will need to see a USB signal from your DAC in order to activate its services for set-up and playback. -
Page 11: Dimmer Function
Before using 2yu, refer to our website to ensure that you have the latest update for the 2go firmware and Gofigure software. You will be able to find this on our product page for either the 2yu or 2go. 2go must be on at least V 1.5.0 firmware and Gofigure for iOS V2.08(22) or Gofigure for Android v1.2.126 or later. -
Page 12: Technical Specifications
Chord Electronics 2yu | User manual 12 Technical specifications Dimensions with 2go 115 mm x 100 mm x 22 mm Weight 2yu 206 g Weight 2go + 2yu 362 g Inputs 2 x Mirco USB for 2go only Input power...
