Brice 590XEC Brochure/Manual

Brice 590XEC Brochure/Manual

Two-speed electric can opener

Advertisement

Quick Links

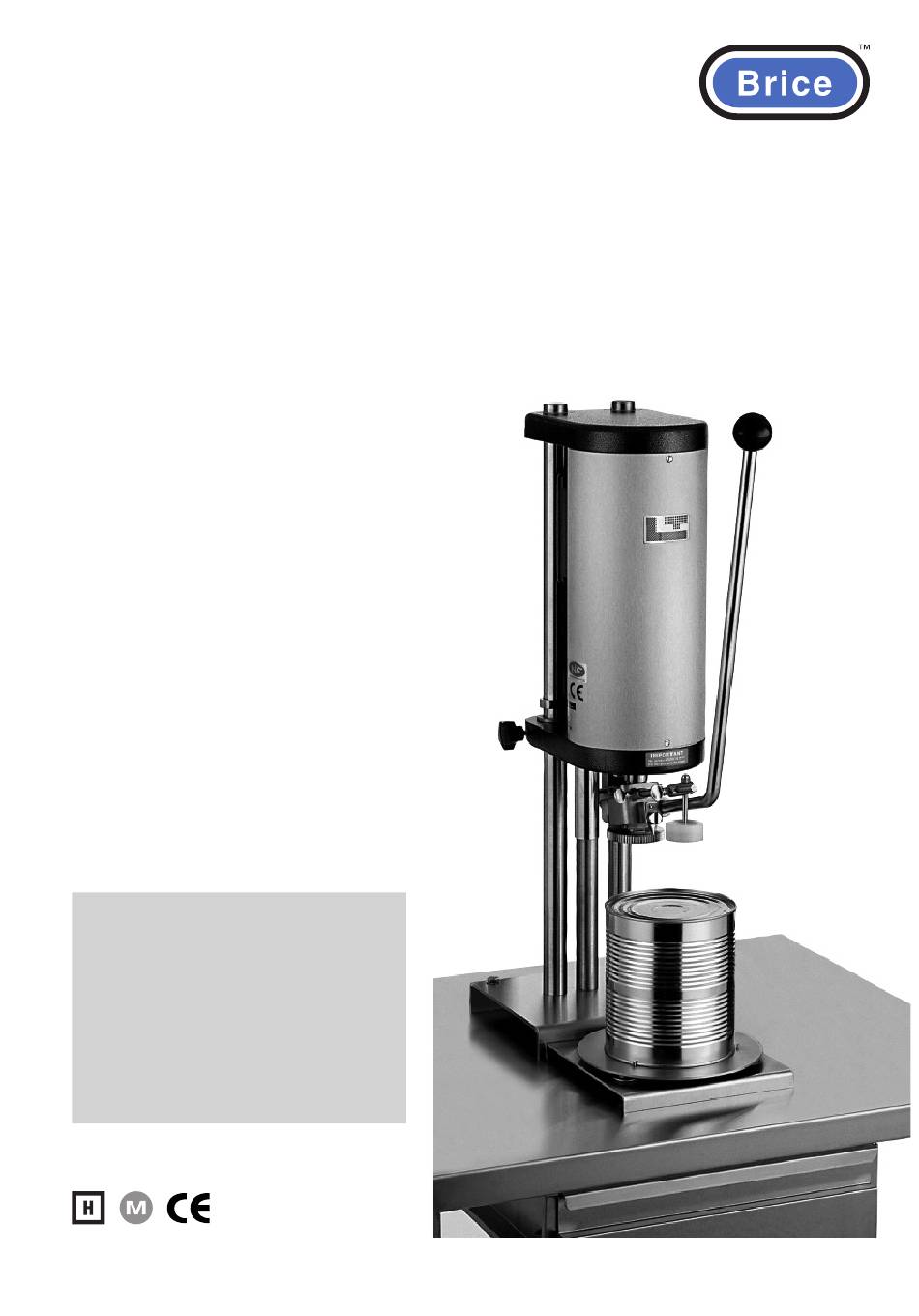

Model 590XEC Brochure/Manual
Two-speed
Electric Can Opener

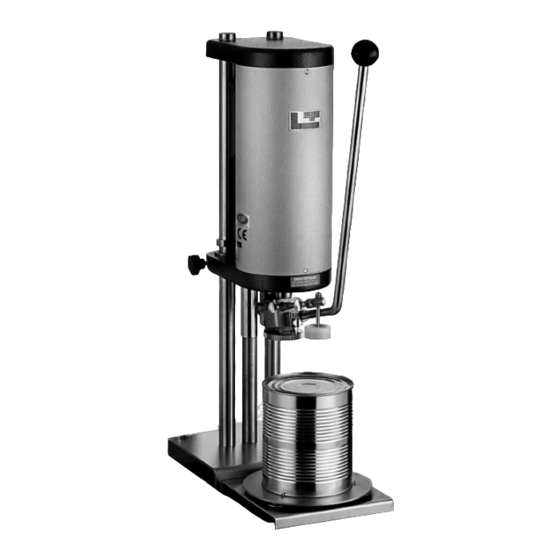

The 590XEC Two-speed Electric Can Opener is the fast, efficient
and tireless way to open all sorts of cans in busy kitchens.
• Two speed operation
Avoid mess and spills. Switch located on
top of unit for easy access.
• Hardened Steel blade
Fully reversible for double the life.
• Opens a huge range of cans
From 50mm to 270mm.
• Stainless steel construction
For maximum durability and easy cleaning.
• Removable opening head
Opening head unit can be removed without
tools.
• Gas strut assisted action
Raise and lower the motor and opening
assembly effortlessly.
• Sturdy base plate
Strong, stable surface able to handle even
heavy cans.
• Output up to 400 cans continuous use
• Can turning disc available
• Available in 1 or 3 Phase
Specifications
Motor: Two-speed, 240V single phase
– 50Hz / 60Hz
Power: 75W
Height with the lever up right: 750mm
Width: 300mm
Depth: 300mm
Net weight: 32kg
IP: 55
Heavy Duty; Manual operation

Advertisement

loading

Summary of Contents for Brice 590XEC

  • Page 1 Model 590XEC Brochure/Manual Two-speed Electric Can Opener The 590XEC Two-speed Electric Can Opener is the fast, efficient and tireless way to open all sorts of cans in busy kitchens. • Two speed operation Avoid mess and spills. Switch located on top of unit for easy access.
  • Page 2 Using and maintaining the 590XEC Can Opener Operating instructions Assembly Instructions The opening head assembly is secured by a stainless steel pin at the top and back of the opening head/cog drive assembly, and by a knurled steel knob. To remove the entire opening assembly, proceed as follows: 1.
