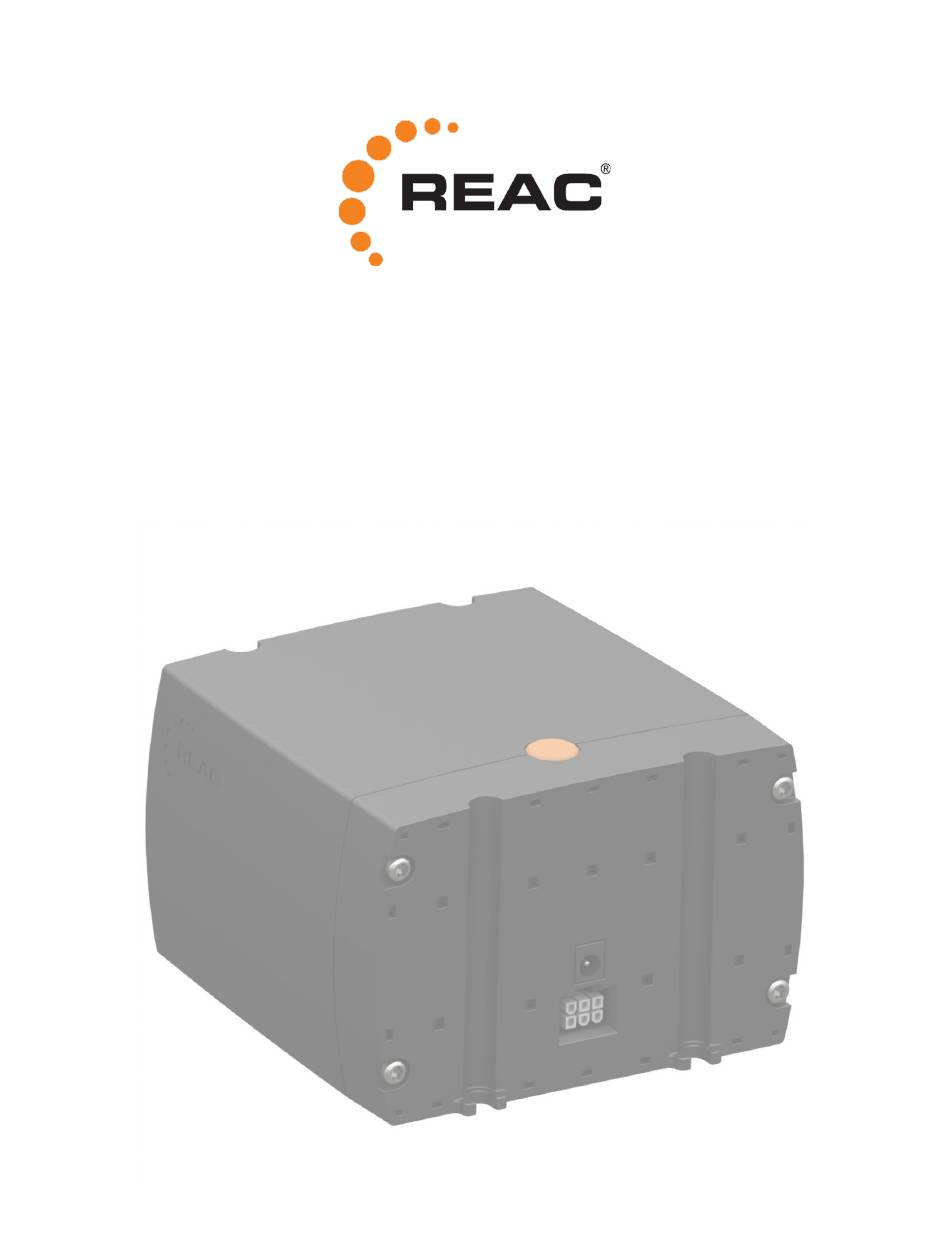

  • Page 1 USER MANUAL RPP10 REAC POWER PACK www.reac.se...
  • Page 2 About REAC REAC is passionate about helping people in their daily lives, and by providing a wide range of advanced power solutions suitable for many different applications, we hope to make people's lives a little bit easier. Our aim is to offer our clients an excellent service, backed up by experience and know-how in the application of advanced motion systems.
  • Page 3: Table Of Contents

    ........................6 ERVICE INTERVALS ....................... 6 LEANING AND DISINFECTION TROUBLE SHOOTING ........................... 7 ......................7 EPAIRS AND REPLACEMENT TECHNICAL DATA ..........................8 ......................8 ASIC CHARACTERISTICS ....................... 8 NVIRONMENTAL CONDITIONS ..........................8 ARRANTY ......................... 9 ASTE DISPOSAL ..........................10 ABELING www.reac.se...
  • Page 4: Introduction

    1 Introduction 1.1 Documentation This manual describes the RPP10 power pack. The following related documentation is also available: • RPP10 Datasheet • User Manual – RCB11 and RCB12 • User Manual – RHC10 and RHC15 1.2 Symbols The following symbols are used in the manual: Injury to persons can occur if these instructions are not followed.
  • Page 5: Product Description

    2 Product description 2.1 Overview The REAC Power Pack RPP10 is a lead battery intended to be used as a power source. The RPP10 is compatible with the REAC control boxes RCB11 and RCB12. 2.2 Connectors Charger jack The charger jack is used for connection of the battery charger.
  • Page 6: Safety Functions

    2.4 Safety functions 2.4.1 Battery ventilation The RPP10 has ventilation channels (small square holes) at the back and front. The channels ensure ventilation of the battery and also allow moisture to come out. Do not block or cover the ventilation channels at any time.
  • Page 7: Operation

    Rinse thoroughly with lots of water and contact your local healthcare for further consultation. 3.1 Before first use Before using the RPP10 for the first time, you should charge the battery for 24 hours. This to ensure full charge and to prolong the lifetime of the battery.
  • Page 8: Charging The Battery

    If the RPP10 has not been used for a long time, it is recommended to charge the battery for 24 hours. 3.4 Checking battery level To check the battery charge level, you must connect the RPP10 to a RCB11 or RCB12 control box. For more information, refer to the user manual for the control box.
  • Page 9: Maintenance

    Make sure the RPP10 box is securely fastened. Cover   Check the plastic housing for mechanical damage (cracks). Cables Make sure the cable that connects the RPP10 to the control    box is firmly affixed. Battery ...
  • Page 10: Trouble Shooting

    5.1 Repairs and replacement To avoid risk of malfunction, all repairs must be carried out by authorized REAC workshops or by a REAC appointed representative. Products under warranty must also be returned to an authorized REAC workshop.
  • Page 11: Technical Data

    Warranty There is a warranty on REAC products against manufacturing faults. The warranty period begins on the purchasing date of the product and applies for 12 months. Warranty exclusions: REAC is entitled to deny any warranty if: · The product has not been correctly used or the product usage specifications (load, environment,...
  • Page 12: Waste Disposal

    RPP10 consist of several parts with different material, which means it cannot be disposed as one single item. It is recommended (at disposal) to disassemble and divide the product as much as possible into feasible waste groups to be able to recycle the product in the most environmentally friendly way.
  • Page 13: Labeling

    6.4 Labeling The following symbols are used on the label of REAC control system products. Rated voltage (24 VDC) Ingress of particles (first character) and water (second character) as per IPXX EN60529. IEC 60417-5840: Patient part of type B IEC 60417-5957: For indoor use only WEEE compliant CE-label attached based on Low Voltage Directive and EMC Directive.
  • Page 14 The following symbols are used on the packaging of REAC control system products. Manufacturer/manufacturing date. Do not use if package is damaged. Fragile, handle with care Keep dry Temperature limits Relative humidity limits Atmospheric pressure limits Consult instructions for use...
  • Page 15 © REAC, February 2021, Issue 5.0 REAC is continuously developing our products and can make changes without prior notice. Therefore we can’t guarantee that the information stated on our webpage or in our written material always is up to date, nor can we take responsibility for any misinterpretation of our written context.
