Herkules Equipment Corporation
248-960-7100
Patents USA 7070167 4793369, 4960142, 5174317, 5193561, 5485860 Canada 1299468 & Patents Pending
website: www.herkules.us
This manual contains important information concerning the
installation and operation of the crushers listed above.
Read manual thoroughly and keep for future reference
INSTRUCTIONS
2760 Ridgeway Court
800-444-4351
Made in the USA
Page 1 of 8
Model: OFC5
Walled Lake, MI 48390-1662 USA
Fax 248 960-7109
e-mail: info@herkules.us
Part# 1002526
11/23/05
Advertisement
Table of Contents
Summary of Contents for HERKULES OFC5
- Page 1 Part# 1002526 11/23/05 Model: OFC5 This manual contains important information concerning the installation and operation of the crushers listed above. Read manual thoroughly and keep for future reference INSTRUCTIONS Herkules Equipment Corporation 2760 Ridgeway Court Walled Lake, MI 48390-1662 USA...
- Page 2 FAILURE TO HEED THE FOLLOWING WARNINGS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE. Herkules will not be held responsible for any personal injury and/or property damage caused due to owner/operator failure to follow the warnings and cautions listed in this manual.

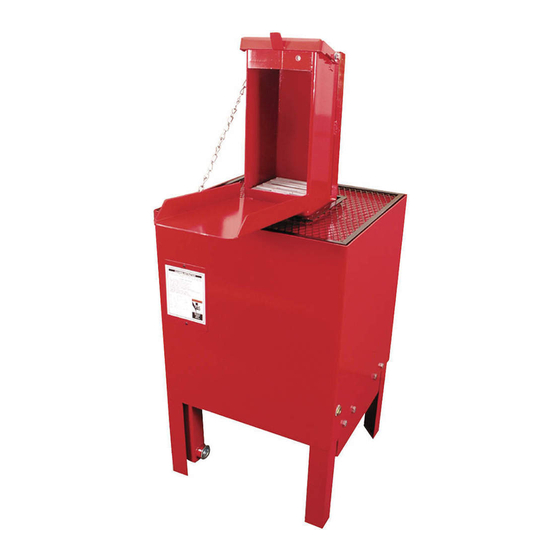

- Page 3 DESCRIPTION Model OFC5 crusher is capable of crushing four filters at one time or one large heavy duty oil filter. The crusher is designed for automotive and light truck shops to crush and dispose of used oil filters in an environmentally correct manner.
- Page 4 OWNER/OPERATOR RESPONSIBILITY It is the owner/operator responsibility to properly use and maintain this equipment. The instructions and warnings contained in this manual shall be read and understood by the owner/operator prior to operating this equipment. If an owner/operator does not understand English, the contents of this manual shall be explained in the owner/ operator native language to assure the owner/operator comprehends.
- Page 5 INSPECTION Prior to operation a visual Inspection shall be made. Check crusher for leaks, worn or missing parts. Any crusher that appears to be damaged in any way, is badly worn or operates abnormally shall be removed from use until repairs are made. Contact a factory authorized service center for repairs. If over pressurizing of the equipment is believed to have occurred, contact a factory authorized service center for inspection of the crusher.
- Page 6 CLEANING INSTRUCTIONS User should perform cleaning procedure on a regular basis (See Figure 2). CAUTION WARNING Clean crusher immediately if piston fails to retract. Failure to clean may damage crusher. CLEANING PROCEDURE Disconnect Air A. Empty crush chamber and disconnect air. Supply Before Cleaning B.
- Page 7 Apply motor oil to door latch pivot points on a regular basis to prevent latch from binding. REPAIR No service parts are available for this oil filter crusher. Special tools and procedures are required for repair. If repair is required, contact Herkules Equipment Corporation Customer Service, (800-444-4351) for your nearest authorized service center. SERVICE PARTS...
- Page 8 SERVICE PARTS Upper Riser/Spacer #12197 Grating Assembly #11843 Lower Riser/Spacer #11940 Piston Assembly #11939 Clean Out Rod #10029 Drain Pan #11857 Tee Assembly #11982 Air Bag #11937 Reservoir Assembly #11954 Page 8 of 8...
