KUBOTA RTV-X900, RTV-X1120D, RTV-X1140, RTV-XG850
1. VC5000 Metal Canopy (Black)
3. VC5011 Plastic Canopy (Black)
5. VC5044 Metal Canopy (Black)
BEFORE INSTALLING DOME LIGHT
Read all instructions and safety instructions in this manual.
Refer to your machine's operator's manual and safety instructions on your
machine's safety decals.
Wear appropriate personal protective equipment (PPE) when performing
work.
Disconnect negative (-) terminal on battery before performing work.
Hang a "DO NOT OPERATE" tag in operator station.
NOTICE
The Dome Light is not rated for outdoor use. Use caution when washing the vehicle to not spray water directly at the
light as this will reduce its life.
Clean plastic lens and outer housing with mild soap and water.
Avoid use of harsh chemicals on plastic as they may damage the plastic.
Estimated assembly time: 30 minutes
PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020

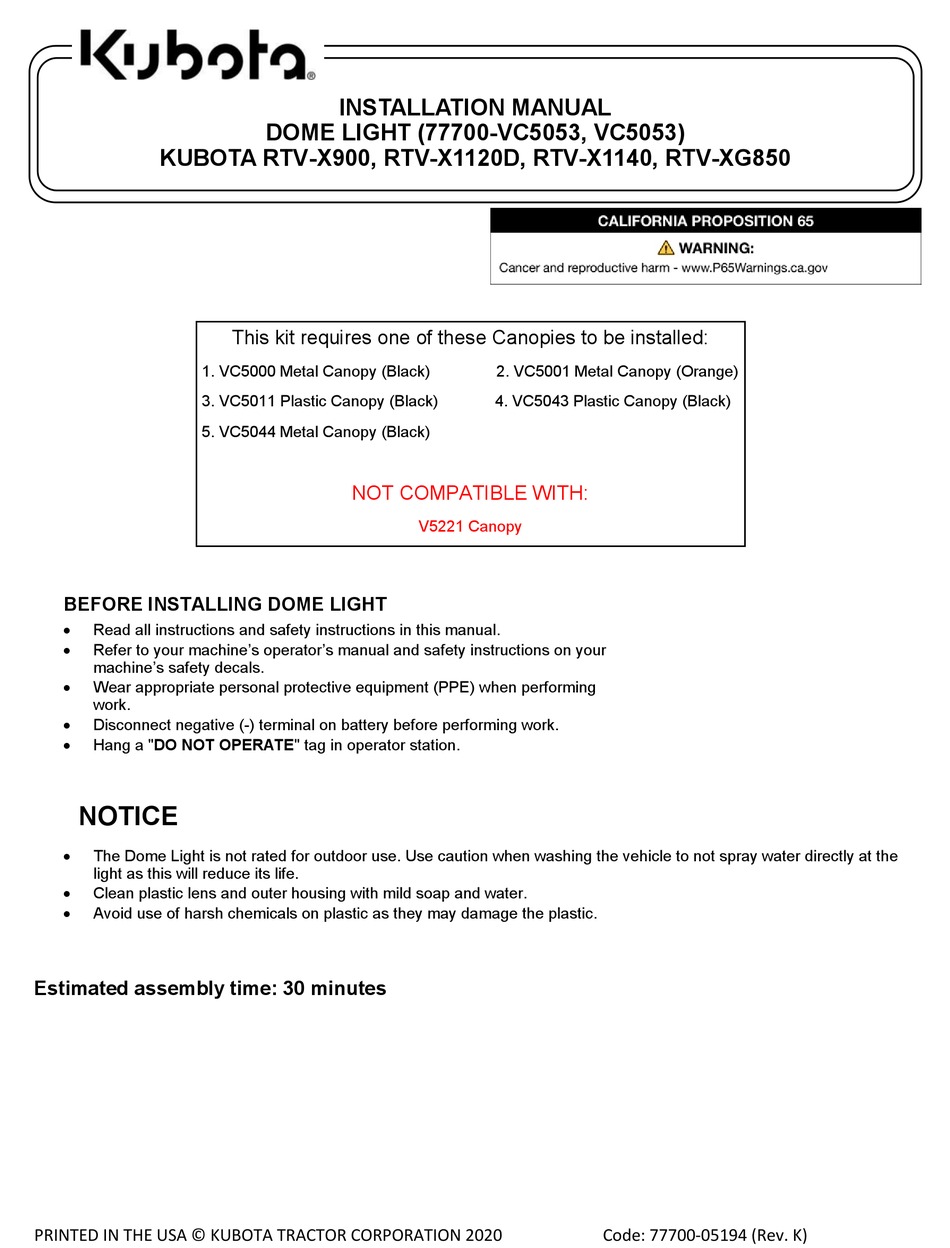

INSTALLATION MANUAL
DOME LIGHT (77700-VC5053, VC5053)
This kit requires one of these Canopies to be installed:
NOT COMPATIBLE WITH:
2. VC5001 Metal Canopy (Orange)
4. VC5043 Plastic Canopy (Black)
V5221 Canopy
Code: 77700-05194 (Rev. K)
Advertisement
Table of Contents
Summary of Contents for Kubota 77700-VC5053
- Page 1 Clean plastic lens and outer housing with mild soap and water. Avoid use of harsh chemicals on plastic as they may damage the plastic. Estimated assembly time: 30 minutes PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700-05194 (Rev. K)
- Page 2 Dome Light Bracket Code No.: DLB-01 (contains one bracket) 77700-05172 Wire Harness, Dome Light Code No.: WH-DL-10 (contains one harness) Note: the installation manual is not sold separately. PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700-05194 (Rev. K)
- Page 3 3. If no strobe light is installed on the canopy, drill an 11/32” hole at the location shown in fig. 2 (steel canopy) or fig. 3 (plastic canopy). Fig. 3 PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700-05194 (Rev. K)
- Page 4 ROPS tube. See fig. 5. Ties Route between rear panel seal (not shown) and ROPS attachment if in- stalling with rear panel Fig. 5 (shown with canopy removed) PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700-05194 (Rev. K)
- Page 5 19. Starting at the battery, remove as much slack as possible from the harness and use provided zip-ties to secure the wire harness to the ROPS tube. See fig. 7. Fig. 7 (shown with canopy removed) PRINTED IN THE USA © KUBOTA TRACTOR CORPORATION 2020 Code: 77700-05194 (Rev. K)
