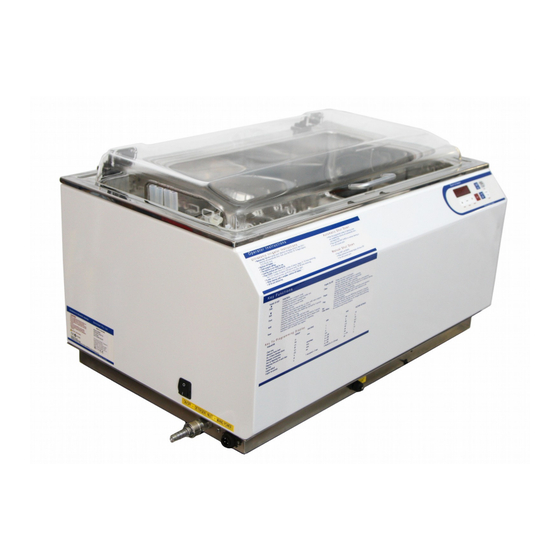

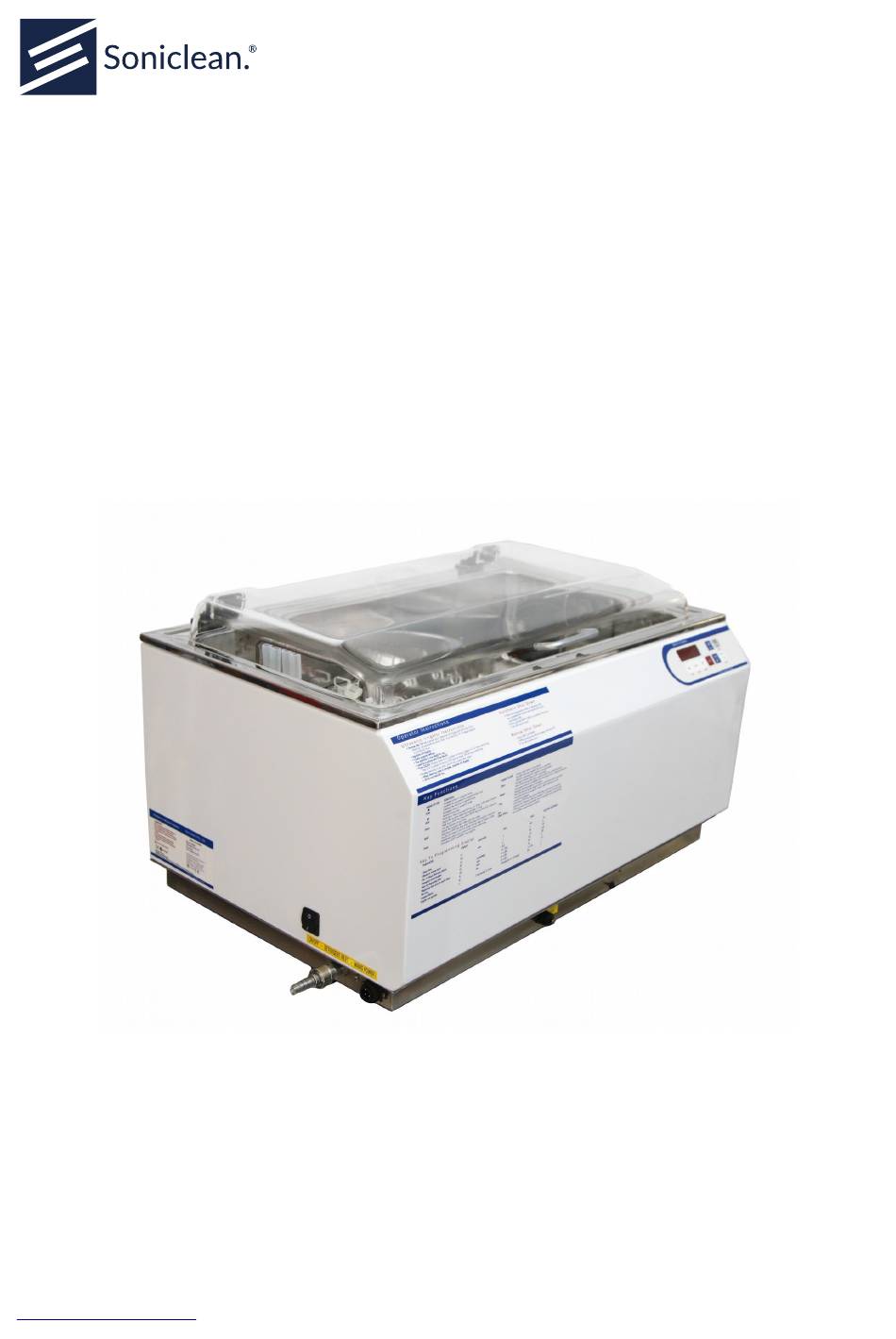

- Page 1 S2800 IRRIGATOR User Manual soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
- Page 2 Please read and familiarise yourself with this manual prior to first use. Ultrasound Pressure Ultrasonic equipment under test generates high amplitude ultrasonic sound which can be harmful to ears. Ensure adequate ear protection is worn while this unit is in use. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
-
Page 3: Table Of Contents
8.2. Program Parameters .......................... 19 9. Display Messages ............................. 21 10. Error Diagnosis ............................23 10.1. Program Values Lost: (FAIL) ......................23 10.2. Low Level in Tank: (LO) ........................ 23 10.3. Drain Blocked: (drnb) ........................24 soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... - Page 4 A. Cleaning Cannulated Instruments ......................29 A.1. Cleaning Process ..........................29 A.2. Using your Soniclean S-2800 Ultrasonic Irrigator ................30 A.3. After using your Soniclean S-2800 Ultrasonic Irrigator ..............30 A.4. Performance Testing ........................30 B. Operating Instructions Summary (Washer) ....................31 B.1.
-
Page 5: Introduction
Introduction Thank you for purchasing a Soniclean Ultrasonic Irrigator. Soniclean Irrigators are designed to improve the quality and consistency of cleaning for laparoscopic instruments using a combination of ultrasonics and irrigation. The Irrigator flushes cleaning solution through the cannulae of hollow instruments whilst delivering ultrasonics for a precision clean. -
Page 6: Requirements
Note: The customer shall ensure the following requirements are met prior to installation. This is essential for the machine to perform at optimum level and to fulfil Australian Standards. If the customer fails to provide this information, Soniclean will provide the information for a fee. 2.1. Environmental 1. -
Page 7: Machine Reporting System (Mrs Models Only)
1. Place the machine on a flat and horizontal surface. Maximum tilt is 2º. 2. Position at operator's convenient height. Soniclean recommends the top of the lid be at elbow height. 3. The bench top shall be strong enough to support the fully loaded machine (approximately 60 kilograms). -
Page 8: Installation
2. Switch on when ready to operate. Note: The unit contains MOV surge arrestor--when carrying out insulation resistance test, MUST carry out test at 250v as per ASN/NZ3760:2003 (page 14) for Class 1 equipment with MOV surge arrestor. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au... -
Page 9: Machine Reporting System (Mrs Models Only)
3. Ensure there is sufficient detergent in bottle at all times. Please note Chemical Type: (Sonic 1), Dosage Setup: (0.5%) (Soniclean Sonic 1 is a TGA listed and hospital grade medical alkaline detergent concentrate formulated for use with this ultrasonic irrigators.) soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au... -
Page 10: Operation
---- The machine is ready to be loaded with instruments. 6. It is recommended that you perform a foil test daily to check the performance of your Washer. (Refer Section 5, Foil Test.) soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... - Page 11 The taller of the instrument supports can now be fitted and the higher manifold can be loaded. Start Cleaning Cycle 1. Close the lid and press "CLEAN". 2. The machine will perform a cleaning cycle according to its program. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
- Page 12 The Irrigator can be programmed to automatically drain after a selected number of cleaning cycles. 1. Manufacturer's programmed number of cleans between draining is ten (10). 2. When the tenth clean cycle is completed the machine will display "END". 3. The tank will automatically drain. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
- Page 13 1. Press "SHIFT" and "DRAIN" together, and hold for 3 seconds. 2. The machine will drain. 3. The machine will display "OFF". 4. Turn off the power at the power point. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
- Page 14 5. Wipe down surfaces of machine with detergent or disinfectant. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
-
Page 15: Foil Test
1. Always use a pH neutral or slightly alkaline detergent (pH 8 to 10.8) that is made specifically for ultrasonic machines. 2. Extra detergent may be added to overcome water quality issues. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... - Page 16 N.B. As per AS/NZ 2773.1-1998, it is acceptable to use alternative methods of testing the performance of your ultrasonic machine. Examples such as aluminium disc and pencil test, Soniclean Ultrasonic Performance Meter (UPM) must be used as per manufacturer's instructions.
-
Page 17: Keypad Description
8. De-gas ( ) Removes gas from solution. Press again to cease degassing. 9. Clean ( The solution is degassing. (This takes approximately 10 minutes.) Reset (secondary) Immediately aborts current operation (press while holding shift). Program soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... -
Page 18: Programmable Features
Programmable Features When you receive your Soniclean Washer it will be set to function automatically. The parameters are set in the factory. The features described below may be altered as you require. The list includes the display you will see on the machine when you are programming. -
Page 19: Program Mode
2. Press the arrow "UP" key to increase the parameter and the arrow "DOWN" key to decrease the parameter. 3. To accept a value press "ENTER". The display will scroll through the parameters. 4. Refer the table on the next page for parameters and default values. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... - Page 20 Ultrasonic power level. Clean number. Detergent concentration. Start-up degas time. mins Pre-wash degas time. mins Test time. Irrigation default. Irrigation rest periods. 1/per 5 sec 5 To alter these parameters see Section 8, “Program Mode”. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
-
Page 21: Display Messages
Indicates a water leak in the system or circuit/wiring failure. IP-? Indicates the configuration of the machine is not known. (MRS function only.) SLid Lid has been opened during operation. N.B. Displayed when cleaning. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... -
Page 22: Error Diagnosis
3. This error will not be detected while the wash lid is up as the operator may cause wave action in the wash tank causing a false indication. Corrective Action 1. Turn off at power point. 2. Contact service agent. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... -
Page 23: Drain Blocked: (Drnb)
This message occurs when the ultrasonics board indicates an excessive heat condition. Corrective Action 1. Turn off the machine at power point. 2. Allow to cool for at least one hour. 3. Re-start machine. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... -
Page 24: Real-Time Clock: (Rtc)
10.9. Setting default IP values. (IP-?) Only for MRS models and IT staff use. Corrective Action 1. Contact the facilities IT department. 2. Refer to the Machine Reporting Manual. 3. Contact a service agent. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... -
Page 25: Remote Diagnostics Interface
A Remote Diagnostic Interface (RDI) Module is an option that can be supplied by Soniclean as an option for those users who may wish to allow a technician to have remote access to machine functions, for diagnostic... -
Page 26: Cleaning Cannulated Instruments
A.1. Cleaning Process Before you use your Soniclean S-2800 Ultrasonic Irrigator, it is suggested that you: 1. Process your instruments as soon after use as possible. (Once soil has dried on an instrument it is more difficult to decontaminate and the bioburden will increase). -
Page 27: Using Your Soniclean S-2800 Ultrasonic Irrigator
Your machine has been supplied with a sample foil test to assist you with this testing. Other Options Some practitioners may choose to use additional tests for checking the performance of the Soniclean Ultrasonic Irrigator. Important: This document provides suggestions only and needs to be used in conjunction with your hospital procedures and protocols, the instrument manufacturers' instructions and the standards applicable in the user's jurisdiction. -
Page 28: Operating Instructions Summary (Washer)
2. Press and hold Shift and Refill to continue cleaning or; 3. Turn off at power point. B.3. Manual Shutdown 1. Press Shift and Drain. 2. When machine has drained display will show Off. 3. Turn off at power point. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... -
Page 29: Specification
C. Specification Soniclean Ultrasonic Irrigator S2800 Tank Size 650mm (W) x 336mm (D) x 180mm (H) Tank Capacity Ultrasonic Power 350W (typical) Overall Size 742mm (W) x 483mm (D) x 420mm (H) Weight ~35KG Benchtop Footprint 880mm (W) x 590mm (D) x 790mm(H) soniclean.com.au... -
Page 30: S2800/Mrs Preventative Protocol (Recommended)
D. S2800/MRS Preventative Protocol (Recommended) Soniclean recommended the following protocol to be carried out (daily and weekly by your authorities; annually by your service agent) to ensure the machine is performing at the optimum performance. Daily Remove and clean strainer Ensure strainer is clean. -
Page 31: S2800/Mrs Disinfection Protocol (Recommended)
E. S2800/MRS Disinfection Protocol (Recommended) It is Soniclean's protocol to disinfect every irrigator supplied for trial at the end of every trial and immediately prior to commencing the next trial. Soniclean or their distributors/agents will ensure this is undertaken unless the trial organisation prefers to conduct the disinfection themselves. -
Page 32: Warranty
The benefits under our warranty described below are in addition to other rights and remedies under a law in relation to the goods. Soniclean Irrigator is guaranteed for 12 months from date of purchase. We undertake to repair free of charge or exchange (at our discretion) any part found to be defective due to a manufacturing fault. -
Page 33: Warranty Registration
This form, photocopy or facsimile must be returned with the installation checklist (see next page) within 1 month from the date of commissioning the machine. Personal details collected by Soniclean are treated as confidential and in accordance with our privacy policy. Retailer / Place of Purchase _______________________________________________________________ Model _________________________________________ Serial No. -
Page 34: S2800/Mrs Installation Checklist
G. S2800/MRS Installation Checklist Note: The check-list must be returned to Soniclean (the manufacturer) together with the warranty form from date of commissioning the machine. Hospital Name __________________________________ Location _______________________________ Serial No. ______________________________________ Asset No. ______________________________ Technician _____________________________________ x Position _________________________________... -
Page 35: For Technician
Irrigator. Plug the other end (RJ45) into the appropriate outlet on the PC. Temperature Sensor: Push the ambient temperature sensor probe into the temperature sensor socket ❑ found on the right side of the machine. soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398... - Page 36 Only use designated cables for accessing data from the Irrigator. ❑ The cable marked “PC” should be used with a laptop computer. ❑ The cable marked “LAN” should be used for connection to a LAN wall output. ❑ soniclean.com.au USRMAN-IRR-20200424-V3.1.0 sales@soniclean.com.au +61 8 8234 8398...
-
Page 37: Further Enquiries
H. Further Enquiries Technical Support Sales Enquiries Nominated Service Provider Soniclean Pty Ltd soniclean.com.au sales@soniclean.com.au Soniclean Pty Ltd +61 8 8234 8398 +61 8 8234 8398 To arrange a service or discuss the terms of your contract, contact our Customer Care Team on +61 8 8234 8398.
