Zigbee Blinds Actuator Mini
Zigbee Blinds Actuator Mini
Art. no.: 57008000
Operating instructions
1
Safety instructions
To avoid possible damage, read and follow the following instructions:
Installation only by persons with sound knowledge and experience in the following areas:
5 safety regulations and standards for the installation of electrical systems
Selection of suitable tools, measuring devices, installation materials and, if necessary,
personal protective equipment
Installation of the installation material
Connection of devices to the building installation under consideration of local connection
conditions
Improper installation endangers your own life and the lives of users of the electrical system and
there is a risk of serious damage to property, e.g. through fire. You are at risk of personal liabil-
ity for personal injury and damage to property.
Contact an electrical contractor!
Risk of injury. Use the device only for controlling Venetian blind and roller shutter motors or
awnings. Do not use it to switch other loads.
For parallel connection of several motors to an output it is essential to observe the correspond-
ing instructions of the manufacturers, and to use a cut-off relay if necessary. The motors may be
destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the limit
switches for correct adjustment. Observe the specifications of the motor manufacturers. Device
can be damaged.
Read the instructions in full, observe them and keep them for future reference.
2

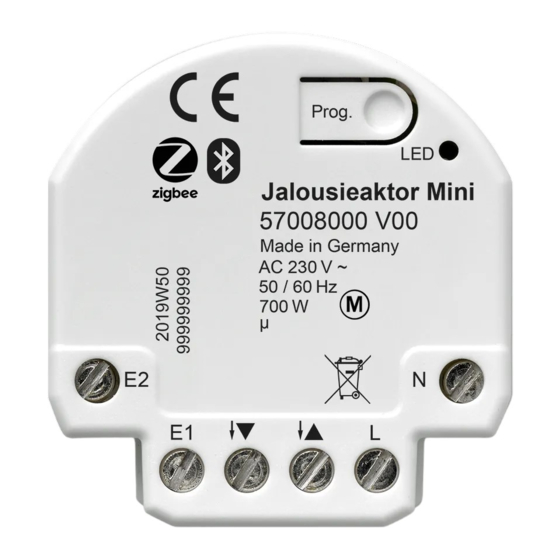

Device components
(1)
Venetian blind actuator
(2)
Button Prog.
(3)
LED
(4)
Terminals
3
Intended use
Zigbee actuator for controlling electrically driven Venetian blinds, shutters and awnings
Zigbee transmitter to operate Zigbee-compliant Venetian blind drives
Operation of Zigbee-compliant transmitters or connected Venetian blind push-buttons
82403600
Figure 1
1 / 7
18.08.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEXENTRO Actuator Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insta NEXENTRO Actuator Mini

  • Page 1 Zigbee Blinds Actuator Mini Zigbee Blinds Actuator Mini Art. no.: 57008000 Operating instructions Safety instructions To avoid possible damage, read and follow the following instructions: Installation only by persons with sound knowledge and experience in the following areas: – 5 safety regulations and standards for the installation of electrical systems –...
  • Page 2: Product Characteristics

    Zigbee Blinds Actuator Mini – Mounting in appliance box according to DIN 49073 with a suitable cover Product characteristics – Zigbee-certified product – Positioning of the blind/shutter and slat Switchable output with Prog. button – – Blind/shutter running time and slat change-over time can be saved –...
  • Page 3 Zigbee Blinds Actuator Mini Figure 2: Connection diagram Venetian blind push-button Figure 3: Clampable conductor cross-section ■ Make the connection according to the connection diagram (Figure 2). In doing so, note the clampable conductor cross-section (Figure 3). ■ Insert the actuator in the appliance box in such a way that the Prog. button and status LED are visible.
  • Page 4 Zigbee Blinds Actuator Mini – Setting up your own network – Assigning device names – Setting device parameters: Blind/shutter running time, slat adjusting time, pause time for direction change – Reverse function of inputs and outputs – Connecting the actuator with Zigbee transmitters or gateways –...
  • Page 5: Reset Device

    Zigbee Blinds Actuator Mini Commissioning without app A simplified commissioning can also be carried out without the app. Prerequisite: The actuator is in the default setting or the assignment to a Zigbee network has been deleted. ■ Open the network of the gateway, see gateway app. ■...
  • Page 6: Technical Data

    Zigbee Blinds Actuator Mini Resetting the device to the factory setting The device deletes the assignment to a network, all connections to Zigbee devices and the parameters saved on the device. Alternatively, the device can also be reset with the NEXEN- TRO Config app.
  • Page 7: 11 Declaration Of Conformity

    Zigbee Blinds Actuator Mini 11 Declaration of conformity Insta GmbH hereby declares that the radio system type art. no. 57008000 meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU De- claration of Conformity is available under the Internet address: www.insta.de/instastorefront/services/downloads...
