W e a t h e r
Necessary tools and equipment
Ruler, compass, pencil
Sandpaper
Metal shears
Spanner (M4)
Screwdrivers slot and cross
Drills 3mm dia + 4 + 5mm
Hacksaw
File
Paint & brush
The OPITEC range of projects is not intended as play
toys for young children.They are teaching aids for
young people learning the skills of Craft, Design and
Technolo- gy.These projects should only be underta-
ken and tested with the guidance of a fully qualified
adult. The finished projects are not suitable to give to
children under 3 years old. Some parts can be swallo-
wed. Dan- ger of suffocation!
E106061#1
1 0 6 . 0 6 1
w i n d
Please Note
v a n e
t u r b i n e
Parts list
2 x Alu sheet
0,3 x 200 x 200 mm
1 x Pine strip
20 x 20 x 350mm
1 x Pine strip
10 x 20 x 150mm
1 x Pine strip
10 x 15 x 150mm
1 x Pine strip
20 x 30 x 250mm
1 x Pine strip
20 x 30x 100mm
1 x Brass tube
5dia/0,5 x 245mm
10 x Nuts
M4
10 x Washers
M4
1 x Screw eye
12mm
2 x Pine dowel
dia 6 x 50mm
1 x Brass rod
dia 4 x 68mm
1 x Welding rod
dia 2 x 100mm
1 x Machine screw
1 x Machine screw
1 x Machine screw
2 x Grub screws
2,9 x 9,5mm
6 x Wood screws 3 x 20mm
w i t h

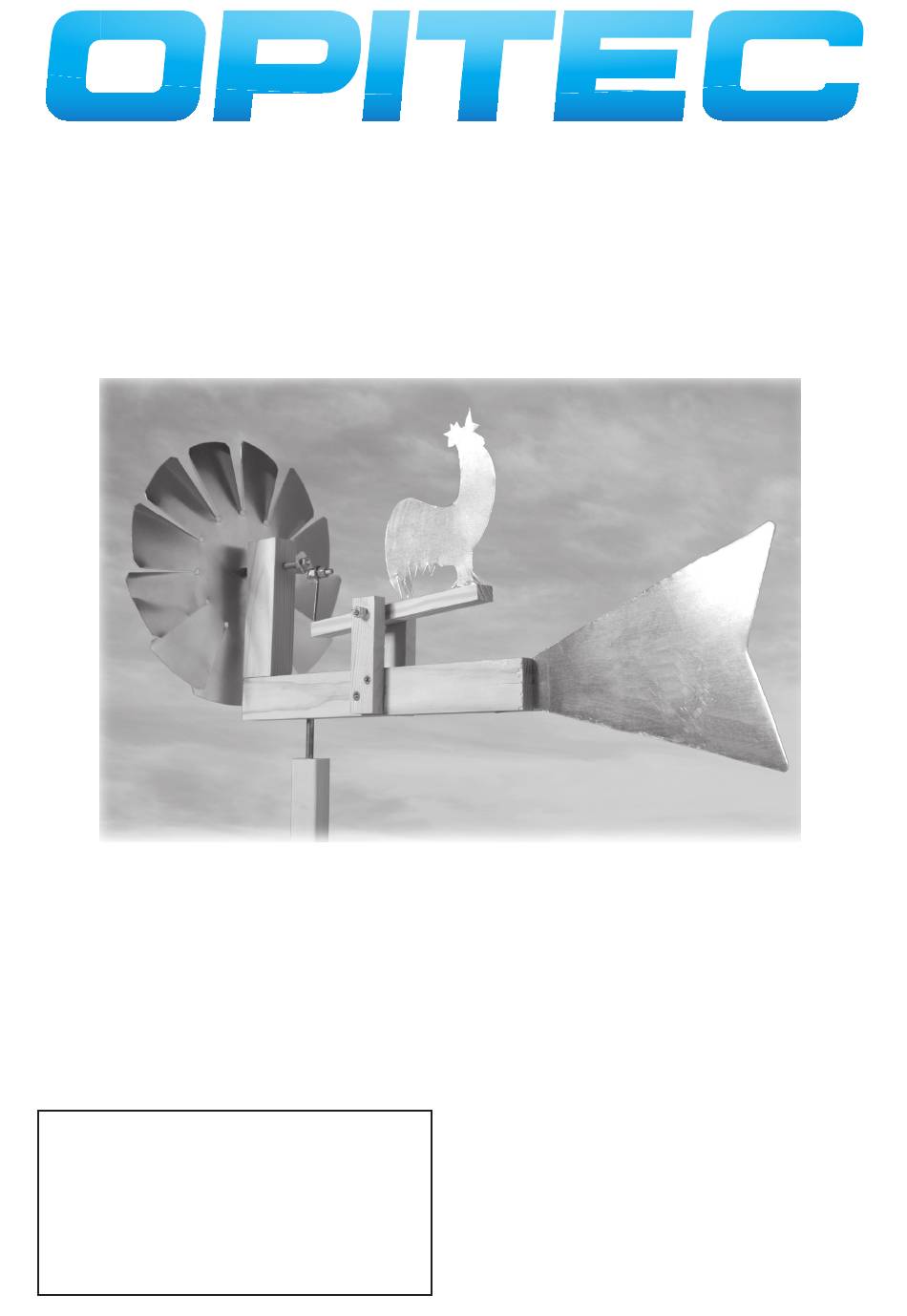

Wind turbine
Bearing
Bearing block
Base
Frame
Frame
Bush
Dowel
Bearing
Rod
M4 x 70mm
M4 x 50mm
M4 x 20mm
1
Advertisement
Summary of Contents for Opitec 106.061
- Page 1 Bearing Please Note 1 x Welding rod dia 2 x 100mm The OPITEC range of projects is not intended as play 1 x Machine screw M4 x 70mm toys for young children.They are teaching aids for 1 x Machine screw...
- Page 2 5.Instructions 5.1 Making the frame and bearing block 5.2 Making the turbine, cockerel, tail and mechanism 5.3 Mounting the single parts .4 Function control 5.1 Making the frame and bearing block 5.1.1 Mark out & drill the blind holes 6 & 5mm diameter as in the drawing (See page 6 ) each 25mm deep in the pine strip 20x 30x 250mm.
- Page 3 5.1.5 Saw the wood strip 10 x 20 x 150 in half. Then mark out and drill the holes 3dia & 4mm as shown ( See page 6) 5.1.6 Mark out and drill the 5mm hole in the side of the pine strip 10 x 15 x 150mm Ø...
- Page 4 5.2.2 Trace the shape of the cockerel and the tail ( See page 9 ) on the second aluminium sheet. Centre punch all the middle points. Now cut out the shapes with shears. Remove any burr. Note! The cockerel is only and idea –you can of course design your own motif Drill the holes for the screws making sure that they are horizontal 5.2.3 Bend the connecting rod from the welding rod as shown in the plan 5.3 Mounting the single parts...
-
Page 5: Function Control
5.3.2 Fix the cockerel with two screws 2,9 x 9,5mm 5.3.3 Secure the two bearing blocks on either side of the seesaw mechanism About 120mm in. Use 3 x 20m screws Note Make sure the bearing holes are in line with each other! Arrange the bearing blocks so that the screws are not in line with each other 5.3.4 Use the 4 x 50mm to hold the see-saw mechanism between the bearing blocks Lock with 2 nuts so that it will move easily up and down... - Page 6 Frame , shorter strip Front view Frame,long strip Side view Front view Side view Ø 6 Ø 5 Ø 6 Ø 5 Ø 6 Ø 6 Seesaw Mounting Ø 4 Ø 3 Ø 5 Ø 3 D106061#1...
- Page 7 Pattern Turbine vane and joiner Scale 1:1 Ø 4 Ø 4 Ø 90 Ø 200 D106061#1...
- Page 8 D106061#1...
- Page 9 pattern Cockerel and tail vane Scale 1 : 1 Ø 3 Ø 3 D106061#1...
