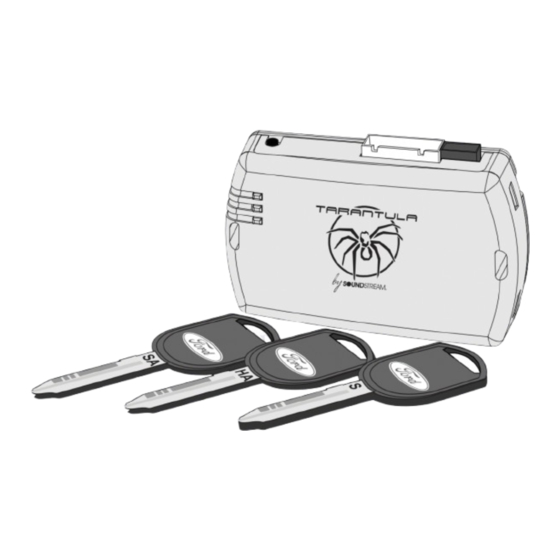

SEC-TLA-RIDE
DATA KEY BYPASS MODULE FOR REMOTE CAR STARTER
MODULE DE CONTOURNEMENT DE CLÉ EN DATA POUR DÉMARREUR À DISTANCE
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE
CE MANUEL PEUT FAIRE L'OBJET DE CHANGEMENTS SANS PRÉAVIS
2011
HARDWARE VERSION
FIRMWARE VERSION
Date: xx-xx
SEC-TLA-RIDE
FL-RIDE
EVO-RIDE
INTERFACE MODULE
PATENTS PENDING US: 2007-228827-A1
www.FlashLogicPro.com
Made in Canada
SOUNDSTREAM.COM/SECURITY
Service No :
000 102 04 2536
Module label | Étiquette sur le module
Copyright © 2006-2011, FORTIN AUTO RADIO INC
TECH SUPPORT
855-732-8777
Tél: 514-255-HELP (4357)
1-877-336-7797
INSTALLATION GUIDE
Rev. 20120120
Rev.20120419
Rev.20120120
80 bit
8 0 b i t
SA
40 bit
4 0 b i t
HA
Notice:
Updated Firmware and
Updated firmware and installation guides are posted on our web
site on a regular basis. We recommend that you update this module to
the latest firmware and download the latest installation guide(s) prior
to the installation of this product.
Des mises à jour du Firmware (microprogramme) et des
guides d'installation sont mises en ligne régulièrement. Vérifiez
que vous avez bien la dernière version logiciel et le dernier guide
d'installation avant l'installation de ce produit.
E O
40 bit
4 0 b i t
S
Installation Guides
ALL RIGHTS RESERVED PATENT PENDING
SOUNDSTREAM.COM/SECURITY
WEB UPDATE | MISE À JOUR INTERNET
ALL
RIDE
U.S. Patent No. 7,647,147
Canadian Patent No. 2,568,114
Brevet américain no. 7,647,147
Brevet canadien no. 2,568,114
Copyright © 2010,
FORTIN AUTO RADIO
ALL RIGHTS RESERVED
Page 1 / 12
