ESB303

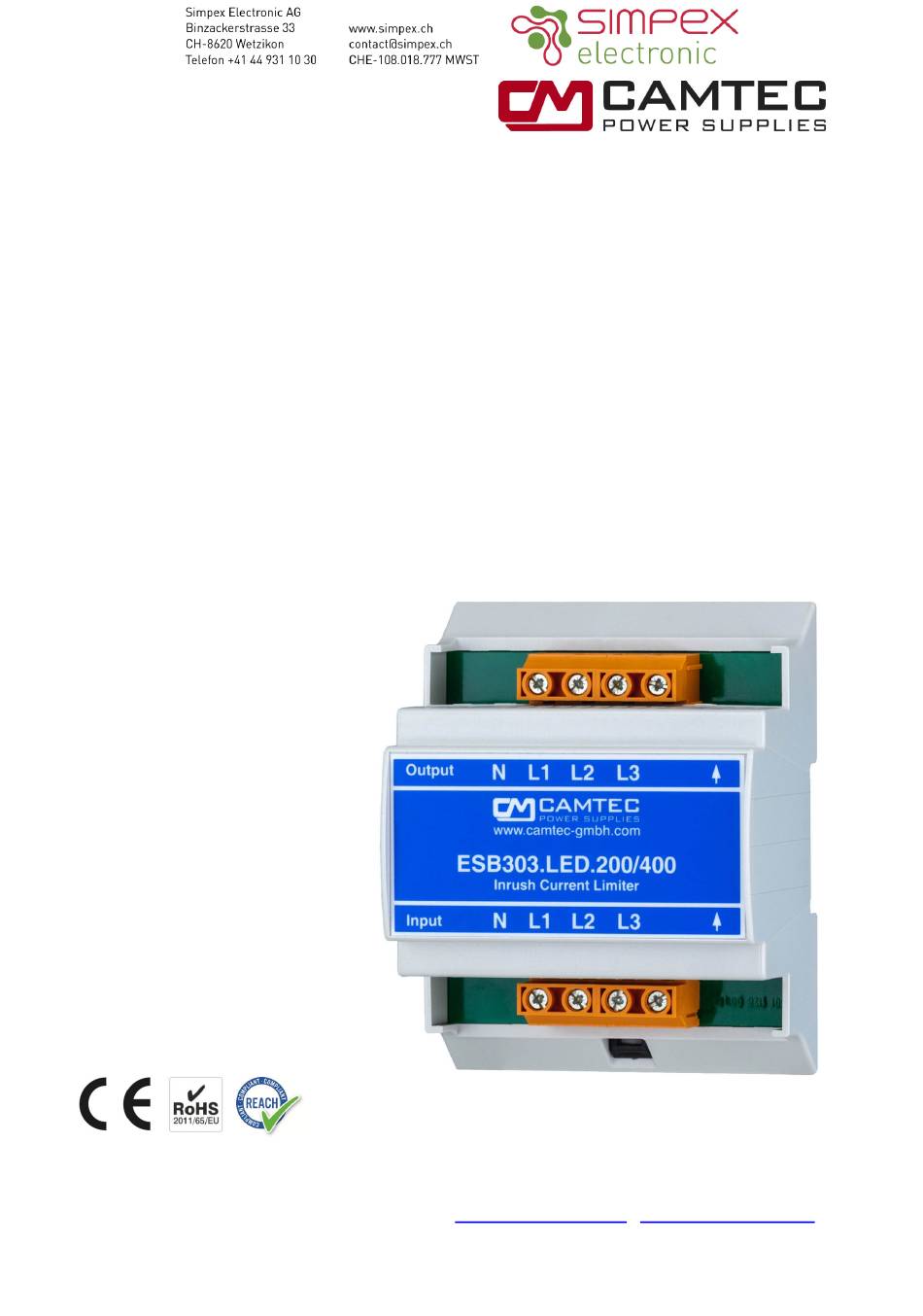

230/400Vac 16A Inrush Current Limiter for N-wire-networks
For capacitive loads, 3x230/400Vac 16A,
Short Specification:
•
Peak- / R.M.S. current limiter
•
3x200-240Vac or 400Vac
•
DIN TS35mm DIN-Rail
•
Wall mount (universal housing)
•
Spring-type terminals 0,5-6mm² / 21-10AWG
•
Integrated bypass relay
•
Capacitive load 6.000uF per phase conductor
•
Integrated over temperature protection
•
IP20 UL94V-0 housing DIN43880
for DIN/VDE0603 cutout box
3x200-240Vac or 400Vac
16A 16 ⅓ Hz – 440Hz
Use ESB303 either as a
3-channel-230V-ESB or to
protect 400Vac networks.
No simple NTC-solution! It
allows to reduce cabling
sections and to install fast
circuit breakers.
100% protection from
tripping pre-installed
circuit breakers or burning
relay and line switch
contacts.
