stilum Jump circleL Maintenance Instruction

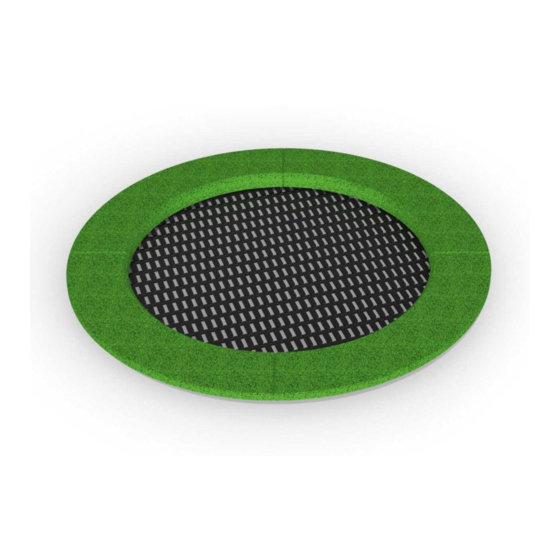

Bouncing element Jump Circle L
Maintenance instruction bouncing element „jump circleL"
Art. 013240
Item-No. 51461x240
Installation and maintenance manual
Attention!
The maintenance intervals mentioned above are to be understood as recommen-
dations. The frequency of inspections has to be increased accordingly in case of
intensive use of the equipment, extreme weather conditions, installations near the
coast or in places which are often subject to vandalism and depending on the age
of the equipment!
In addition to the maintenance recommendations given by the manufacturer, it is
Edit: 05.12.2018
also absolutely necessary to follow the regulations stipulated in DIN EN 1176-7!
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modifications reserved

Visual inspection (1 - 3 weeks):

• Check for loss or vandalism
• Check the surfaces of metal and plastic for sharp-edged elements, scratches,
cracks or similar and, if necessary, grind or renew
• Replace missing parts
• Remove dirt and other objects (stones, broken glass, etc.)

Operational (1 - 3 month) - and main inspection (annually)

• Check for loss or vandalism
• Check the surfaces of metal and plastic for sharp-edged elements, scratches,
cracks or similar and, if necessary, grind or renew
• Replace missing parts
• Remove dirt and other objects (stones, broken glass, etc.)
• Check moving parts for easy operation
• Check all fasteners and attachments for tightness and loss, tighten or replace
• Check screw connection and tighten if necessary
• Testing the stability of the device
• Check for traps
• Testing the fall protection coating.
When exchanging or repairing elements, please always use original spare parts
for the sake of operational safety and for liability reasons!
If the play equipment has been incompletely installed or partly dismantled when
carrying out maintenance and repair work, this may lead to particular risks of
injury for the user. For this reason, make clearly visible that the equipment shall
not be used in such cases!
State: 22.01.2019 S. 1
