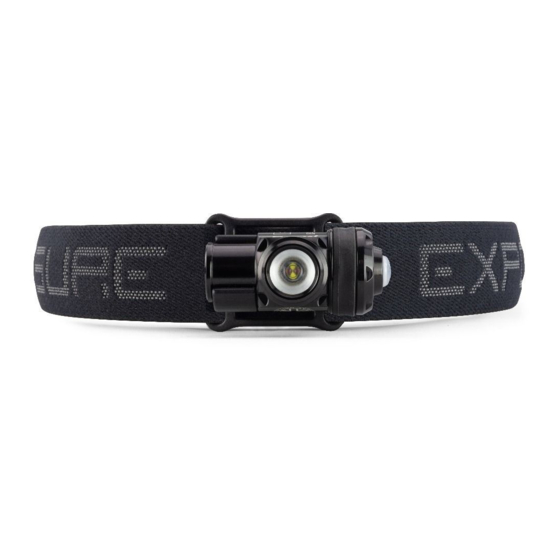

Exposure Lights RAW PRO User Manual

MAINTENANCE
The RAW is built to function in the harshest marine and outdoor environments.
To guarantee a watertight seal ensure the button cap is screwed down finger tight and the silicone
band is covering the charge port hole.
If the unit is being stored for long periods please ensure the battery is periodically charged fully.
WARNING
Exposure Lights are very powerful lighting systems, please take care when operating. Do not
look directly into the light or shine directly at others, including other road users.
Exposure Lights / Ultimate Sports Engineering Ltd. accept no liability for any injuries or other
damages arising from the use of their product in any circumstances.
NOTE: Patents apply.
WARRANTY & SERVICE
Please do not send any products back to us without contacting our service team first to
discuss your issue and for a valid returns number.
All our lights come with a 2 year warranty.
If you have a servicing or technical question you can contact us using the information below. If you
return your light for repair, no work will be carried out until you have been contacted with the cost
for the repair. If you are outside of the UK it would be quicker in the first instance to contact your
local distributor.
+44 (0)1798 839300
service@use1.co.uk
For more information please visit:
exposurelights.com
RAW PRO • RAW XS
SPECIFICATION & OPERATION
RED LIGHT
MODE
LUMENS BURN TIME LUMENS
HIGH 50 2hrs 200
MEDIUM 15 6hrs 50
LOW 2 25hrs 15
STROBE – – 200
OPERATION
SWITCH ON RED LIGHT PRESS AND RELEASE FUNCTION BUTTON
CHANGE MODE PRESS AND RELEASE FUNCTION BUTTON
PRESS AND HOLD FUNCTION BUTTON
SWITCH OFF
UNTIL LIGHT SWITCHES OFF THEN RELEASE
PRESS AND HOLD FUNCTION BUTTON
FROM OFF SWITCH ON WHITE LIGHT TO LOW
UNTIL WHITE LIGHT TURNS ON
PRESS AND HOLD FUNCTION BUTTON UNTIL WHITE LIGHT
FROM OFF TO SWITCH ON WHITE LIGHT TO HIGH TURNS ON, CONTINUE TO HOLD
UNTIL WHITE HIGH IS ACTIVATED.
PRESS AND HOLD FUNCTION BUTTON, IT WILL SWITCH OFF
TO SWITCH FROM RED MODE TO WHITE LOW
AND THEN BACK ON IN WHITE
PRESS AND HOLD FUNCTION BUTTON FROM WHITE MODE
TO ENTER STROBE
UNTIL STROBE IS ACTIVATED
FUEL GAUGE FUNCTION
3 seconds after pressing the Function button it becomes the fuel gauge. The colour of the
button now indicates the approximate percentage of battery power left.
When the battery only has 5% charge remaining the light will automatically switch to the low/
flash setting and the function button will flash red.
LED BATTERY %
GREEN 100 - 50
AMBER 50 - 25
RED 25 - 5
RED FLASH 5 - EMPTY
USER GUIDE
USB CHARGING
Fully Charge your light before first use.
WARNING: Ensure your light is totally dry and salt free before unscrewing the button cap
WHITE LIGHT
BURN TIME
1hrs
3hrs
10hrs
5hrs
ACTION
1. Pull back tab back towards
the button - do not remove
The function button will flash whilst charging. When the battery is fully charged the function button
will turn solid green. Charge time 1.5 hours
LANYARD FITTING (RAW XS ONLY)
2. Unscrew Button cap 3. Insert the charger cable.
until USB charge port is
visible - around 5 rotations
NOTE: Do not remove the
cap completely.
