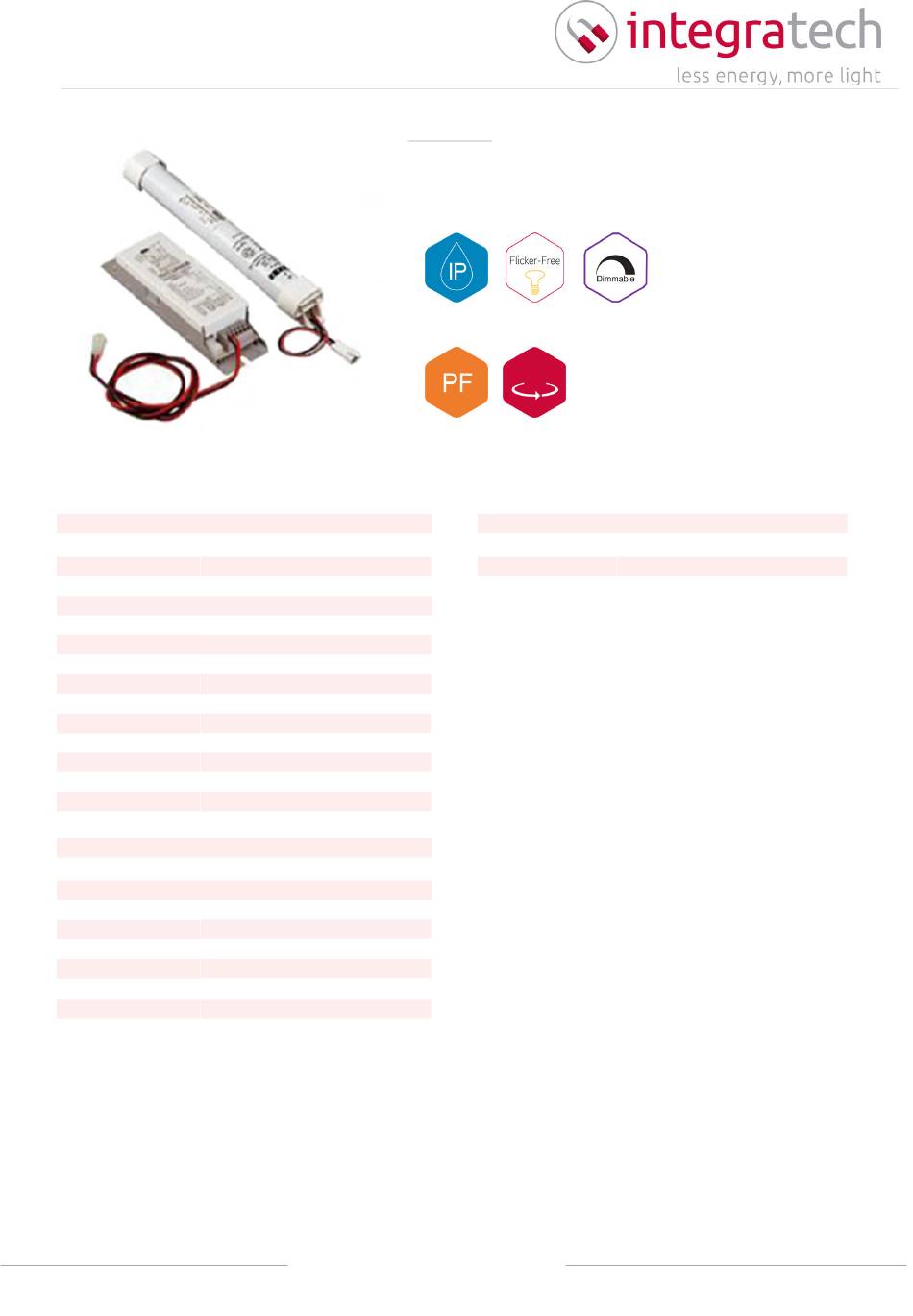

DATASHEET
ECULED212-1H
Emergency unit 1 hour 3,6V 1,7Ah max 45V output for LED panel or downlighter, non-permanent / permanent.
Switchable. Warranty 2 years, 1 year on batteries.
Technical specifications
Reference
ECULED212-1H
EAN code
5420076206529
ETIM code
EC000471
Electrical specifications
System power (W)
50
Input voltage (Vac)
230
Frequency (Hz)
50/60
Dimmable
no
Flicker free
yes
Power factor
Connection cable
Driver output (V)
45
Driver output (mA)
Isolation class
I
Energy class
Dimension and material properties
Dimensions (LxWxH)
170x41x35mm
Weight (kg)
0,354
Working temp. (°C)
0~+45
IP value
IP20
Number in bulk
12
Number on pallet
MOQ
1
Stock item
yes
25/02/2020
Visit our website for all test reports LM-79 / LM-80 / TM-21 and elumdat files, subject to changes without notice.
Description:
Emergency unit for Leddriver 1h max 45Vdc
IP20
Warranty and certification
Lifetime (h)
Warranty (year)
ENEC
www.integratech.be | +32 16 79 50 51
YES
NO
2 YEARS
2
no
Pagina 1 from 2
Advertisement
Summary of Contents for Integratech ECULED212-1H
- Page 1 Number in bulk Number on pallet Stock item www.integratech.be | +32 16 79 50 51 25/02/2020 Pagina 1 from 2 Visit our website for all test reports LM-79 / LM-80 / TM-21 and elumdat files, subject to changes without notice.
-
Page 2: Data Sheet
DATASHEET ECULED212-1H Dimension Connection diagram www.integratech.be | +32 16 79 50 51 25/02/2020 Pagina 2 from 2 Visit our website for all test reports LM-79 / LM-80 / TM-21 and elumdat files, subject to changes without notice. - Page 3 MANUAL OF ECULED212 MODEL EMERGENCY LIGHTING CONVERSION KITS FOR LED LAMPS WARNING! It is important that these instructions are read throughly before any installation work commences. They must also be retained on file to provide information on use and maintenance by end-user. All installation work must be carried out by a suitable qualified person and must comply with the instructions and all other relevant regulations.
- Page 4 WIRING DIAGRAMS NON-MAINTAINED ECULED212 BATTERY TEST LED LAMP (*) LED OUTPUT BUTTON (NC) MAINS – (*) Cut for longer duration or lower BLF. (Refer to Table) CHARGE INDICATOR Line LED FIXTURE Neutral Earth MAINTAINED OR SWITCHABLE MAINTAINED WITH EXTERNAL DRIVER ECULED212 BATTERY DRIVER INPUT...
- Page 5 Nominal 3.6 Volt (3.0 to 4.5 Volt) ØD 220~230 (from the outer side of housing) (when closed) SPECIFICATIONS ECULED212-1H (1 hour) ECULED212-3H (3 hours) Battery Type Ni-Cd, 3.6 Volt, 1.7Ah, SC size Ni-Cd, 3.6 Volt, 3.5Ah, C Size Temperature Rating High Temp type, T50 ºC...
