WISE DPS a
Instructions for Use
Symbol key
Symbols on the machine
This product complies with applicable EU
directives
Symbols in this user manual
Warning/Caution!
Application area

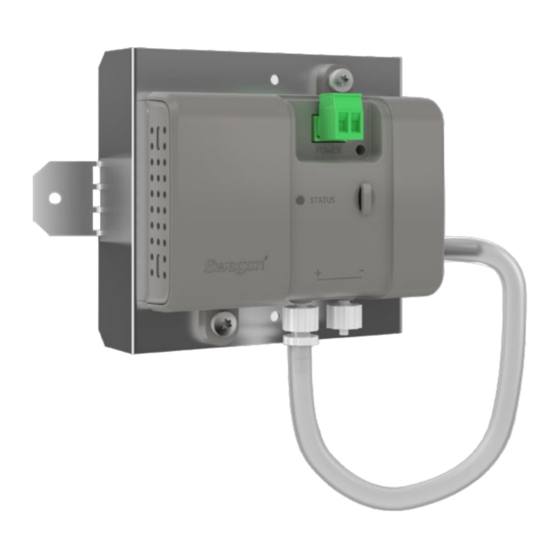

The product is a measurement unit designed for comfort
ventilation indoors within Swegon's system for demand-
controlled ventilation WISE. The product is used to meas-
ure duct pressure.
The product may not be used for anything other than its
intended use.
General
Read through the entire instructions for use before you
install/use the product and save the instructions for future
reference. It is not permissible to make changes or modify
this product other than those specified in this document.
The packaging contains the following
items:
1 x WISE DPS
1 x Instructions for use
Protective equipment
Always use appropriate personal protective equipment for
the work in question, in the form of gloves, respirators and
protective glasses during handling, installation, cleaning
and service/maintenance.
Electrical safety
Permitted voltage, see "Electrical data".
It is not permissible to insert foreign objects
into the product's contactor connections or the
electronics's ventilation openings; risk for
short-circuiting.
Cable sizing must be carried out for cabling
between the product and the power supply
source.
The document was originally written in Swedish
Disconnect the power supply when working
on products that are not required to run in
production.
Always follow the local/national rules for who
shall be permitted to carry out this type of
electrical installation.
Handling
• The product must be handled with care.
Installation
• Moist, cold and aggressive environments must be
avoided.
• Avoid installing the product near a heat source.
• Assemble the product according to applicable industry
regulations.
• Install the product so that it is not accessible by
unauthorized persons, for example above a suspended
ceiling.
• Install the product for easy access during service/main-
tenance.
• If the product is mounted above a fixed ceiling, the
inspection hatch must be located so that the product is
accessible for inspection.
• If the product is mounted in cold areas, the whole
product must be insulated on the outside against
condensation.
• The product can be installed position-independent.
• Check to make sure that the product does not have
any visible defects.
• Check that the product is properly secured after it has
been installed.
• Use the product's eyes to secure the cables with cable
ties.
• Check that all cables are properly secured in place after
installation.
20201125
Art. 1546062
