Summary of Contents for GAIA Smart Thermostat

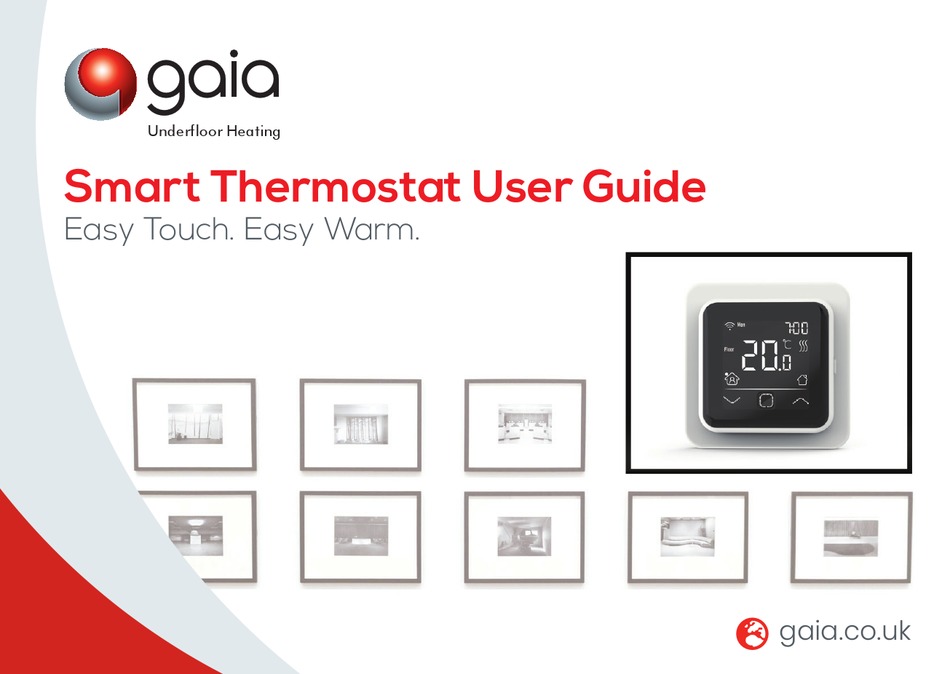

  • Page 1 Underfloor Heating Smart Thermostat User Guide Easy Touch. Easy Warm. gaia.co.uk Globe-Eu...
  • Page 2 • underfloor heating • 01359 242 400...
  • Page 3: Table Of Contents

    Contents Installation Function & Operation Temporary Override Temperature Wiring Instructions Mode Key-Lock Wifi Connection Menu Clock Thermostat Symbols Event Setting Readout Start Up Wizard Advanced Setting Open Window Detection Troubleshooting Dimensions gaia • underfloor heating • info@gaia.co.uk...
  • Page 4: Installation

    Introduction The Gaia Smart Thermostat is an intuitive programmable thermostat which can be used to control either electric or wet underfloor heating systems. It will keep your home at a comfortable temperature whilst minimising energy use. Simply install the app on your smart phone to control your Gaia Smart thermostat remotely.
  • Page 5: Wiring Instructions

    A remote air sensor (room-out sensor) can be purchased separately. All electric underfloor heating must use a floor sensor. Suggestion: Please keep the max load around 90% of 16A to prolong the lifetime. gaia • underfloor heating •...
  • Page 6: Wifi Connection

    Step 1: Scan the QR code on the inside cover of this User Guide for the app or download the WARMME app from your app provider. gaia • underfloor heating • 01359 242 400 If you experience a problem connecting, we're here to help.
  • Page 7 “confirm”. You can check the real-time temperature, Step 7: adjust or set the temperature, switch on/off or do other operations on the main interface. gaia • underfloor heating • info@gaia.co.uk Contact us on 01359 242 400 or email technical@gaia.co.uk...
  • Page 8: Thermostat Symbols

    Press the to select parameter. WiFi Clock Room Temp Floor Temp On/Off Switch Actual Temp Heat Percent Event Key-Lock Frost Protection Mode Down Key Confirm Key Up Key Manual Mode Office Home gaia • underfloor heating • 01359 242 400...
  • Page 9: Startup Wizard

    The Home schedule has two heating periods and two off periods, whereas the Office mode has one heating and one off period. See Page 13 for the full schedule and the pre-programmed times, which can be adjusted to suit. gaia • underfloor heating •...
  • Page 10: Function & Operation

    15°C. Key-Lock Lock all keys to prevent the settings from being changed. On the actual temperature interface, press and hold for 3 seconds at the same time to lock or unlock all of the keys. gaia • underfloor heating •...
  • Page 11: Menu

    Located in Home Read heating Temperature or Office time of a Calibration certain period Upper Floor Reset to Temperature Limit Factory Settings Various settings Schedule ------Sitemap of the menu Selection Back to actual temp page gaia • underfloor heating • info@gaia.co.uk...
  • Page 12: Clock

    * If you want to go back to the actual temperature interface, you should go back to the day selection and select end. gaia •...
  • Page 13: Readout

    The thermostat provides advanced settings to suit various special situations. These are normally set by technicians during initial installation. On the clock interface, press the to select SET. Press the to enter advanced setting. Each setting can be accessed by pressing and parameters adjusted by pressing gaia • underfloor heating • info@gaia.co.uk...
  • Page 14 01: 5+1+1 00: Heating Used For 00: Heating 01: Cooling 00: Adaptive 00: Adaptive Adaptive Function 01: No 00: Home Located In 00: Home 01: Office 00: No 00: No Reset 01: Reset gaia • underfloor heating • 01359 242 400...
  • Page 15: Open Window Detection

    This function only works when either the room sensor or both sensors are selected (refer to 6.2). When this function is activated, the thermostat will shut off automatically for 15 minutes should it detect a sudden fall in temperature, for example when a window is opened. gaia • underfloor heating •...
  • Page 16: Troubleshooting

    Troubleshooting Room-in sensor error. Floor sensor error. Room-out sensor error. Dimensions (mm) gaia • underfloor heating • 01359 242 400...
