Summary of Contents for Coastal Amusements Monkey Mania
- Page 1 AN AMUSEMENT/REDEMPTION VIDEO GAME (Revision: 09-10-12) STANDARD VERSION COASTAL AMUSEMENTS, INC. 1950 SWARTHMORE AVE LAKEWOOD, NJ 08701 (USA) TEL: 01-732-905-6662 FAX: 01-732-905-6815 E-MAIL: sales@coastalamusements.com WEB SITE: www.coastalamusements.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GAME DESCRIPTION ................3 SETTINGS AND ACCOUNTING............... 3 MAIN MENU OPTIONS................4 PRICING............................. 4 BASIC SETTINGS........................4 AUDITS ............................4 DIAGNOSTICS.......................... 4 RESET CREDITS........................4 RESET TICKETS........................4 RESTORE FACTORY SETTINGS ................... 4 PRICING MENU ..................5 CARD SWIPE .......................... -
Page 3: Game Description
MONKEY MANIA GAME DESCRIPTION Monkey Mania is a 1 or 2 player video based amusement/redemption water race game, in which 2 players compete against each other (or 1 player against the computer) in a fast-paced race down a jungle river. The player(s) must shoot a stream of water at the target as it lights. -
Page 4: Main Menu Options
MAIN MENU OPTIONS PRICING Adjust coin and ticket options. BASIC SETTINGS Adjust game timing, attract mode options, and sound volume. AUDITS Records coins in, tickets out, games played and payout percentages. DIAGNOSTICS Check audio, video, switches, ticket dispenser, meters, and I/O board RESET CREDITS Clear all credits accumulated on the game RESET TICKETS... -
Page 5: Pricing Menu
PRICING MENU CARD SWIPE Set to ON if a swipe card reader is installed. Default Value: OFF (Options: ON / OFF) CREDITS TO START Numbers of credits needed to start game. Note: If Card Swipe is active (ON), Credits to Start will automatically default to 1, regardless of the value set below. -
Page 6: Basic Settings
BASIC SETTINGS VOLUME Adjust game volume. Default Value: 50 (Options: 0-100) ATTRACT SOUND When set to ON, there will be sound during attract mode. Default Value: ON (Options: ON / OFF) WATER IN ATTRACT MODE Setting this function to ON, water will occasionally shoot from the bananas in attract mode. Default Value: OFF (Options: ON / OFF) SECOND PLAYER WAIT TIME... -
Page 7: Audits
AUDITS (Sample Screen) CURRENT LIFETIME COINS IN 1 PLAYER GAMES 2 P[LAYER GAMES TOTAL GAMES PLAYED FREE STARTS TICKETS DISPENSED 2394 AVERAGE TICKETS PER GAME PAYOUT PERCENTAGE This (sample) screen above shows the audit information that is available to the operator. PRESS THE RESET BUTTON TO CLEAR CURRENT AUDITS. -
Page 8: Diagnostics
DIAGNOSTICS SWITCH/LAMP TEST Use this option to test the paddles, reset switches, and coin switches as well as all lamps and rope lights. TICKET DISPENSER TEST Pressing the DOWN/INC button will dispense three tickets from the left ticket dispenser and increment the ticket meter by 3. - Page 9 “MONKEY MANIA” WATER PUMP MAINTENANCE Before beginning pump maintenance, check to be sure there is 12VDC power to the pumps at all times. 1. Turn the pump over and remove 2. Carefully remove the diaphragm the 5 Phillip head screws.
Need help?
Do you have a question about the Monkey Mania and is the answer not in the manual?
Questions and answers

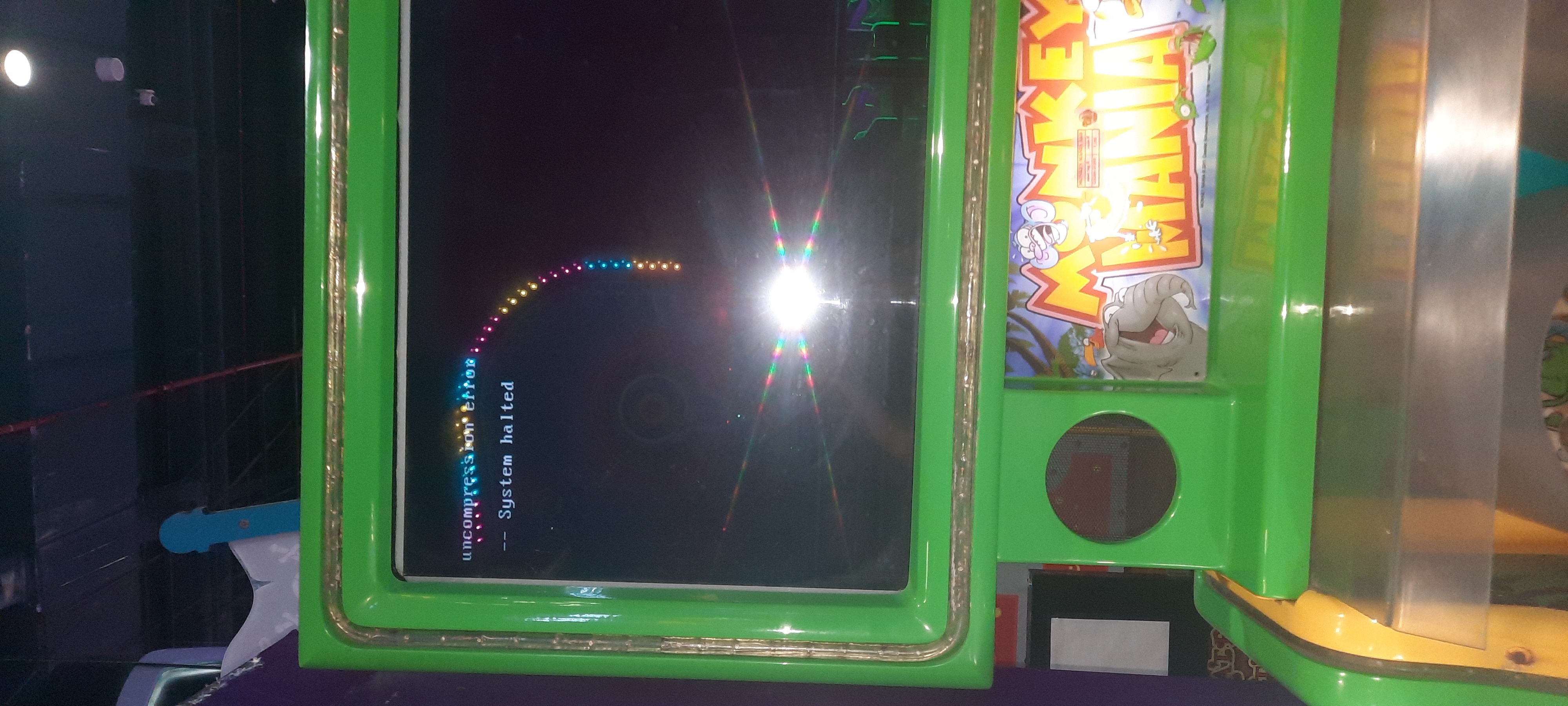

good day! I have 1 unit monkey mania, the problem is *** system salted*** could you please help me on how to recover the program for it. please see attach phot
