Summary of Contents for Max HT-R1

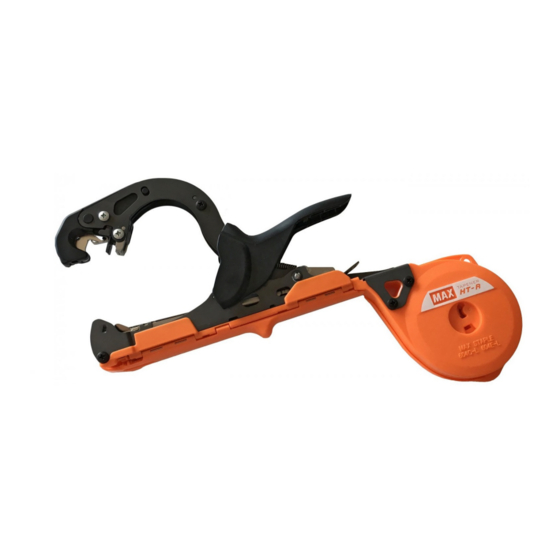

- Page 1 HT-R1, HT-R2 Tapener INSTRUCTION MANUAL BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. WARNING SEPT 2020...
-
Page 2: Specifications
MAX STAPLES 604C-L 200 pcs/stick Staples Loaded MAX STAPLES 604E-L 172 pcs/stick Tape Used MAX TAPE-10, 0.1mm T x 11mm MAX TAPE-215, 0.15mm T x W x 40m L (white) 12mm W x 55m L (white) MAX TAPE-15, 0.15mm T x 11mm MAX TAPE-225, 0.25mm T x... -
Page 3: Parts List
PARTS LIST Index No. Parts Code No. Description HT11672 B CASE S FF31714 STRAIGHT PIN 1714 FF31712 STRAIGHT PIN 1712 KK33402 TORSION SPRING 3402 KK29130 COMPRESSION SPRING 9130 HT11670 LOCK PLATE S HT11627 A CASE CC43107 NAT M4(3) AA05719 +PH TAP SCREW 3x8 (P) HT11632 CLINCHER HT11622... -
Page 4: Parts Diagram
PARTS DIAGRAM... -
Page 5: How To Use
HOW TO USE How to Load Staples 1. Hold the body with one hand, push the lever down and pull the lever towards your direction (Fig. 1). * The pusher cannot be removed from the main body. 2. While holding the tool in one hand, insert staples into the magazine so that staples’ legs point upward, and then set them in the pusher unit by sliding lever. - Page 6 How to Pull Out Tape 1. Squeeze the handle so that the tape catch will catch the tape end deep enough (Fig 7). 2. Release the handle as explained. The tape will pull out (Fig 8). 3. If the tape catch unit does not catch the tape end when you squeeze the handle, please squeeze the handle harder several more times, and the tape catch will return to its normal position (this is not a trouble with the tapener).
- Page 7 Release the button and pull off the cutting blade cap (Fig 16). WARNING Keep your fingers away from the cutting blade. Confirmation Confirm that the round hole of the cutting blade is completely hidden (Fig 17). How to Remove Jammed Staples While the pusher unit is open, remove any loaded staples, and then remove the stuck staple with a small screwdriver (Fig 18).
