CoolJarz A10-HotShot 1500 Operating Instructions

A10-HotShot
Operating Instructions
Models 1500 and 750
Components Include:

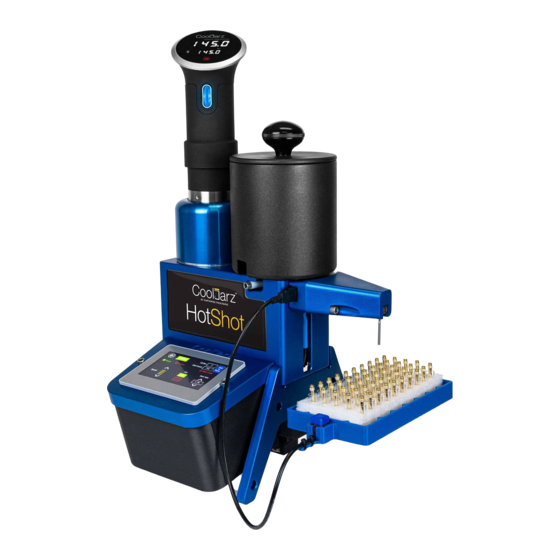

A10-HotShot™ Cart Filling System • Anova® Immersion
Heating Element • USB Foot-Activated Fill Switch (both
models) • USB Button-Activated SpeedTray™ (Model
1500) • Black Non-Stick Coated Oil Tank with Lid • Heat
Transfer Fluid (16oz Bottle) • A10 Power Transformer
110v > 24v 10 amp • A10 Component Kit with Tools

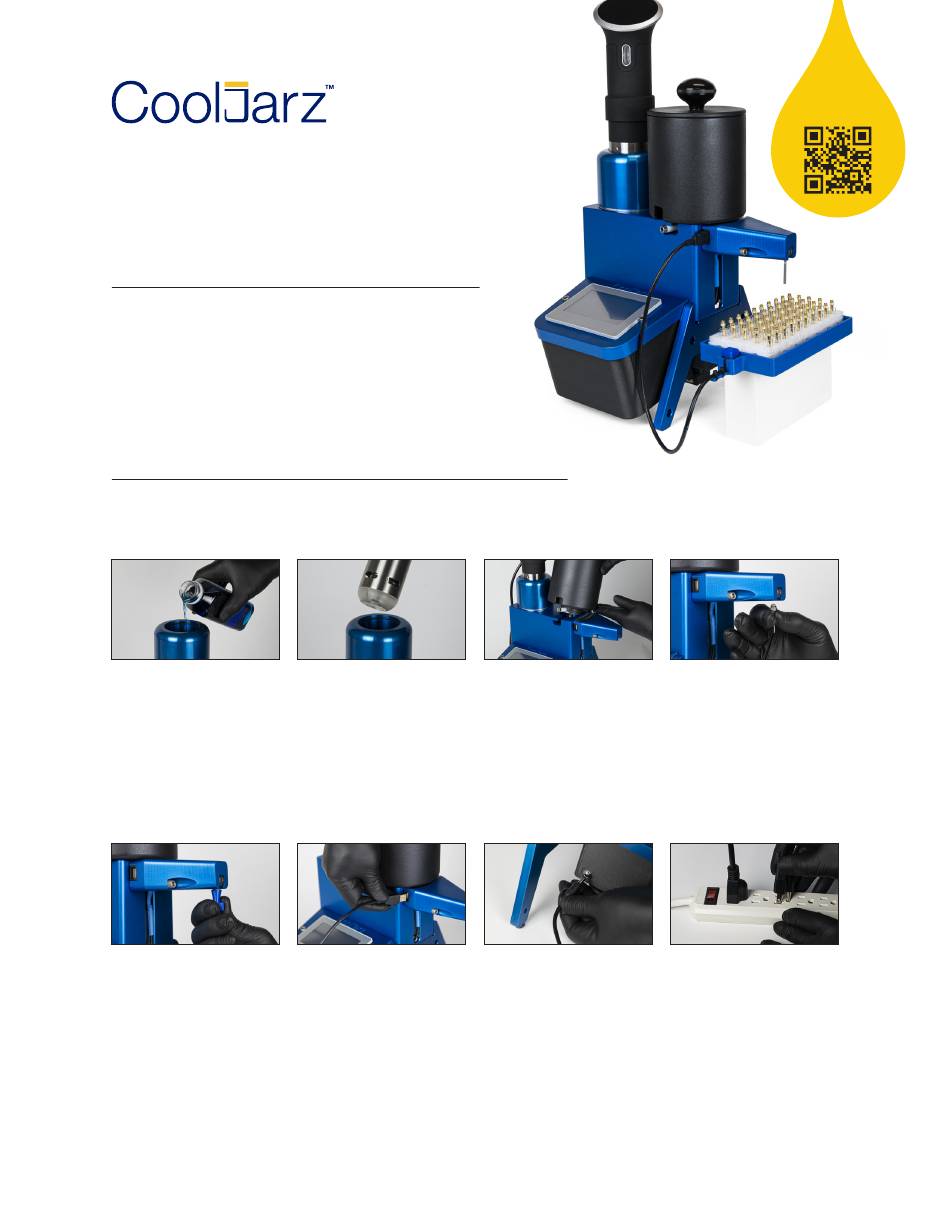

A10 System Assembly:
1. Pour 16oz bottle of blue heat
transfer fluid into blue rear
reservoir on A10. Note: Pour
contents of one full bottle only.
Do not add additional fluid.
Change fluid every 6 months
5. Install needle at injection port
by using blue thumb hex socket
tool supplied. Do not over-
tighten as tools are plastic.
2. Slide Anova
immersion heating
®
element into rear reservoir
containing heat transfer fluid.
Twist slightly to ensure fully
seated. Positioned correctly, the
three dimples will be level with
the top of reservoir.
6. Plug selected fill switch into
USB port on left front side of
system. For A10 Model 750, a foot-
activated fill switch is supplied.
For Model 1500, two options are
supplied: an A10 SpeedTray™ with
button-activated fill switch and a
foot-activated fill switch. Note: On
A10-HotShot™1500, an extended
injection arm lets you fill carts
directly in vendor- supplied foam
blocks, eliminating the need to
transfer carts one-by-one
™
3. Mount non-stick coated oil tank
onto A10 body. To ensure proper
connection, align bottom white
cam with slot in A10, press down
firmly until seated, then turn
clockwise to lock. Place lid on
tank. Note: Oil tanks feature
self-sealing, one way check valves
so you can swap out tanks and
batches mid run. To remove tank,
turn counterclockwise to unlock
mechanism and lift straight up
7. Plug round male end of power
transformer into rear of
A10-HotShot™ control box.
Watch
instructional
demo video at:
hotshot.cooljarz.com
4. Select appropriate injection
needle from A10 tool kit. Make
selection based on size and shape
best suited to style of cartridge,
pen or syringe you're filling. Note:
Suggest you use shortest needle
possible to lessen pressure on
internal piston
8. Plug transformer and Anova®
immersion heating element into
switched minimum 10amp-rated
power surge strip. Note:
important that surge strip has an
on/off switch. Will be used to
activate and deactivate power to
the A10-HotShot™ system
9. Plug power surge strip into
standard 110V electrical outlet
with at least 10 amps of service.
