Summary of Contents for Mathey Dearman D100

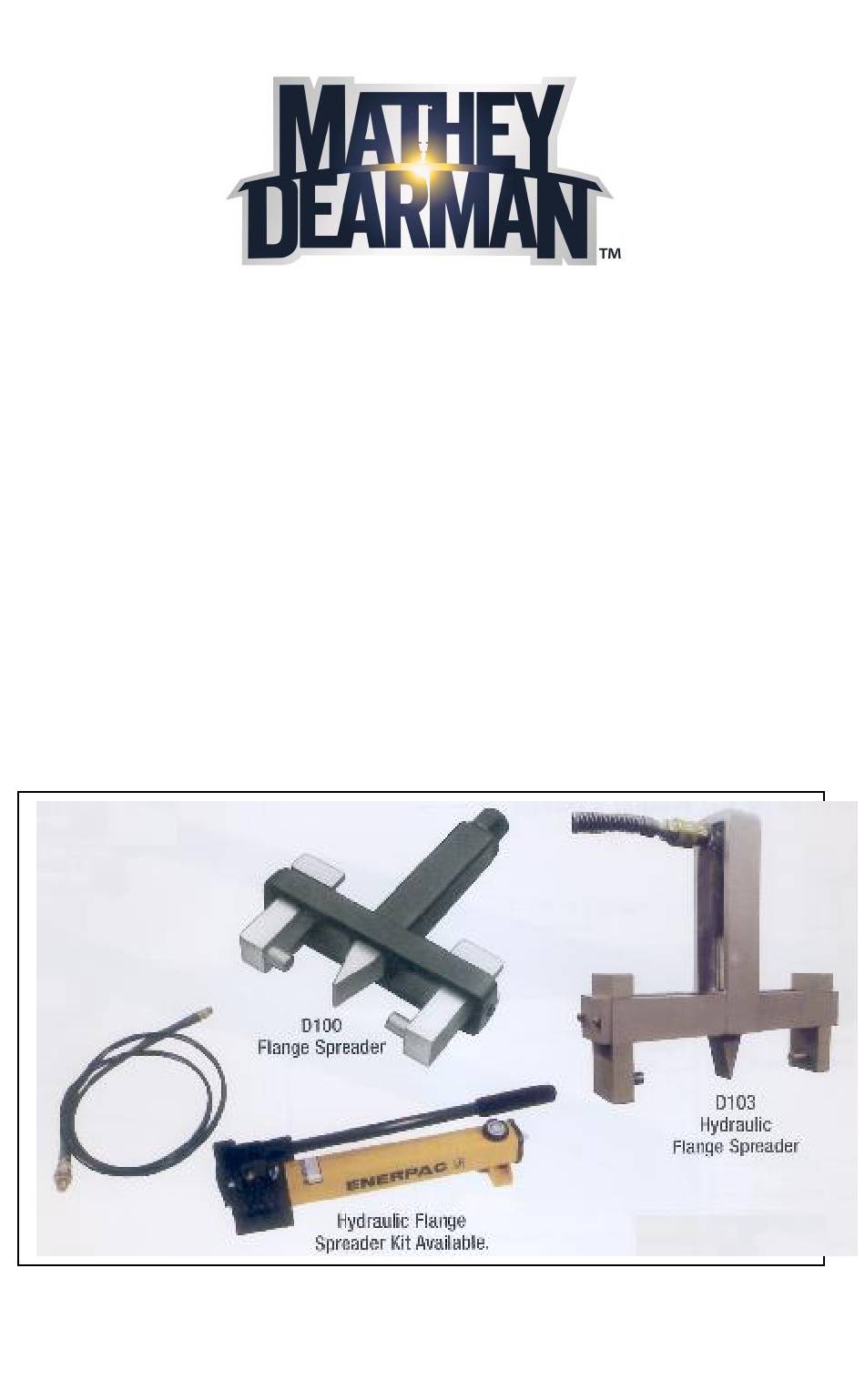

- Page 1 Mathey Dearman Inc. 4344 South Maybelle Ave. Tulsa, OK 74107 Phone: 800-725-7311 • 918-447-1288 • Fax: 918-447-0188 Flange Spreader Parts and Operating Manual...
- Page 2 Hydraulic Kits (D104-KIT) are required for the operation of the D101, D102 and D103 Hydraulic Flange Spreaders. D100 The Manual Flange spreader is designed for use on 2” to 12” (51 – 305mm) 300-pound flanges. The hex nut at the top of the flange spreader requires a 1 1/4"...
- Page 3 D103 The D103 Hydraulic Flange Spreader is designed for use on 2” to 12” (51 – 305mm) 150 & 300-pound flanges. The dimensions of the Flange Spreader are: A. Overall height – 13” (330mm) E. Width – 2 ½” (64mm) F.
- Page 4 C – Spreading the Flange Faces Once the above operation has been completed, apply pressure to each Flange Spreader equally to avoid damage to the flange sealing face. Maintenance The Flange spreader should be cleaned and inspected after each use in case of any damage, such as cracks, to the flange spreader.
- Page 5 Warranty For warranty details see Mathey Dearman’s website at www.mathey.com...
