How to Update Software
Patch your audio file player into the 6/
1.
FREQ CV input.

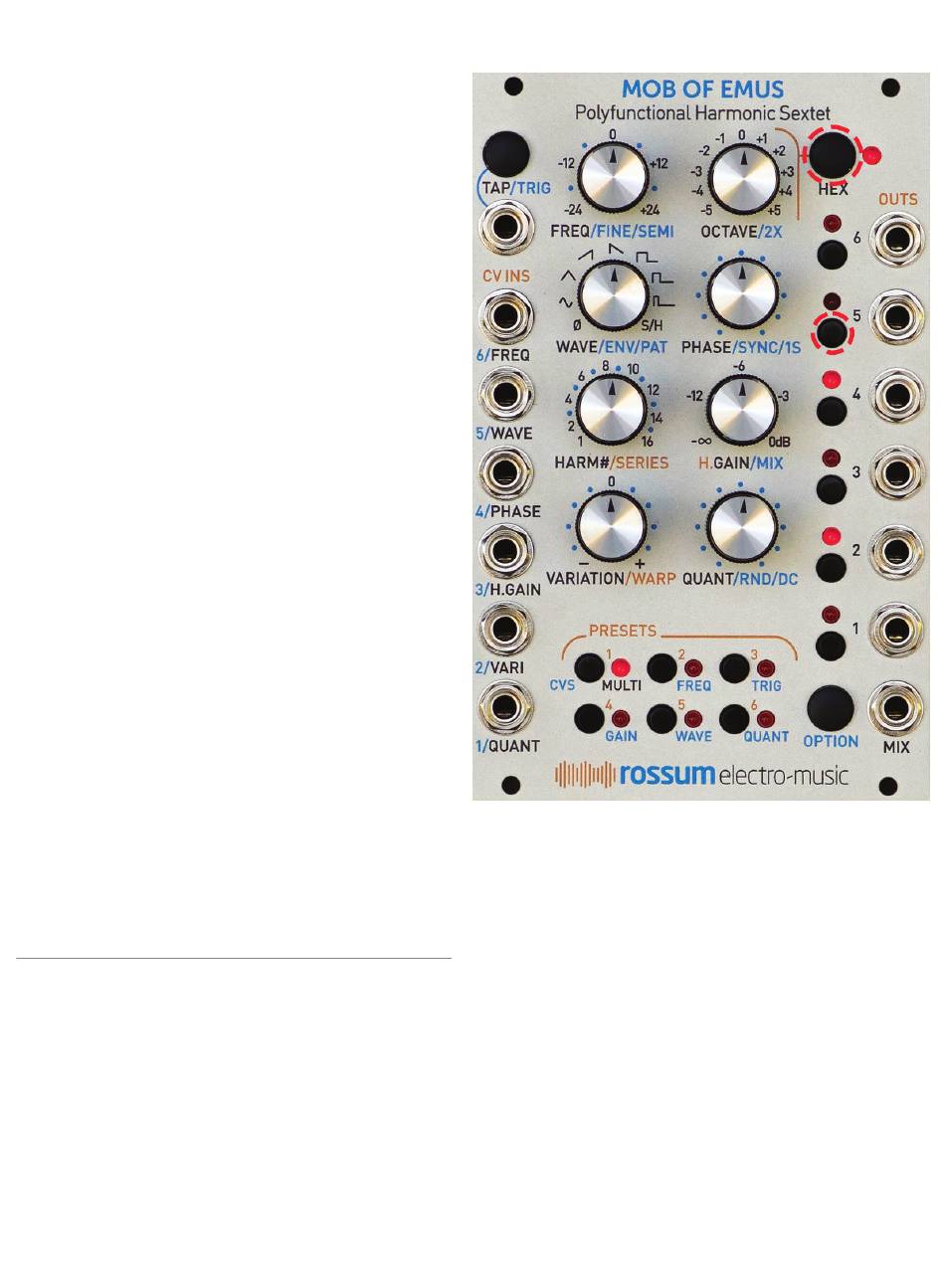

Hold the HEX button and the Channel 5
2.
button as you power up your system.
The Channel 1 and Preset 1 LEDs will be
lit, and the HEX LED will be off.
. Press the OPTION button to proceed:
3
Play the audio file containing the Mob of
4.
Emus software (see the Hints for Playing
Back WAV Files below). The Preset 1–3
LEDs will show the input audio signal
VU: P1 is too low. P1 and P2 is better. All
three is best. Once a file sync marker is
detected the Channel 2 LED will light
and the remaining channel LEDs will light
in sequence to show load progress. If a
successful load occurs, all 6 LEDs will be
lit.
Press the OPTION button to reboot using
5.
the new software.
If an error occurs, all Channel LEDs will go
off, the HEX LED will light, and the P4–P6
LEDs indicate the type of error. Press the
Option button to try again. If it still isn't
successful, get in touch and we'll work it out.
If the update fails, your module will still
NOTE:
be okay. It will just continue to function with
the version of software it was running prior to
the update attempt.
Here are the possible error codes (which you
will hopefully never need to refer to):
P4 P5 P6 ERROR
Off Off On Bad Pulse
Off On Off Bad Sync
Off On On Unexpected End
On Off Off Bad Checksum
On Off On File Type
On On Off Flash Write Error
On On On Program Transfer Error
