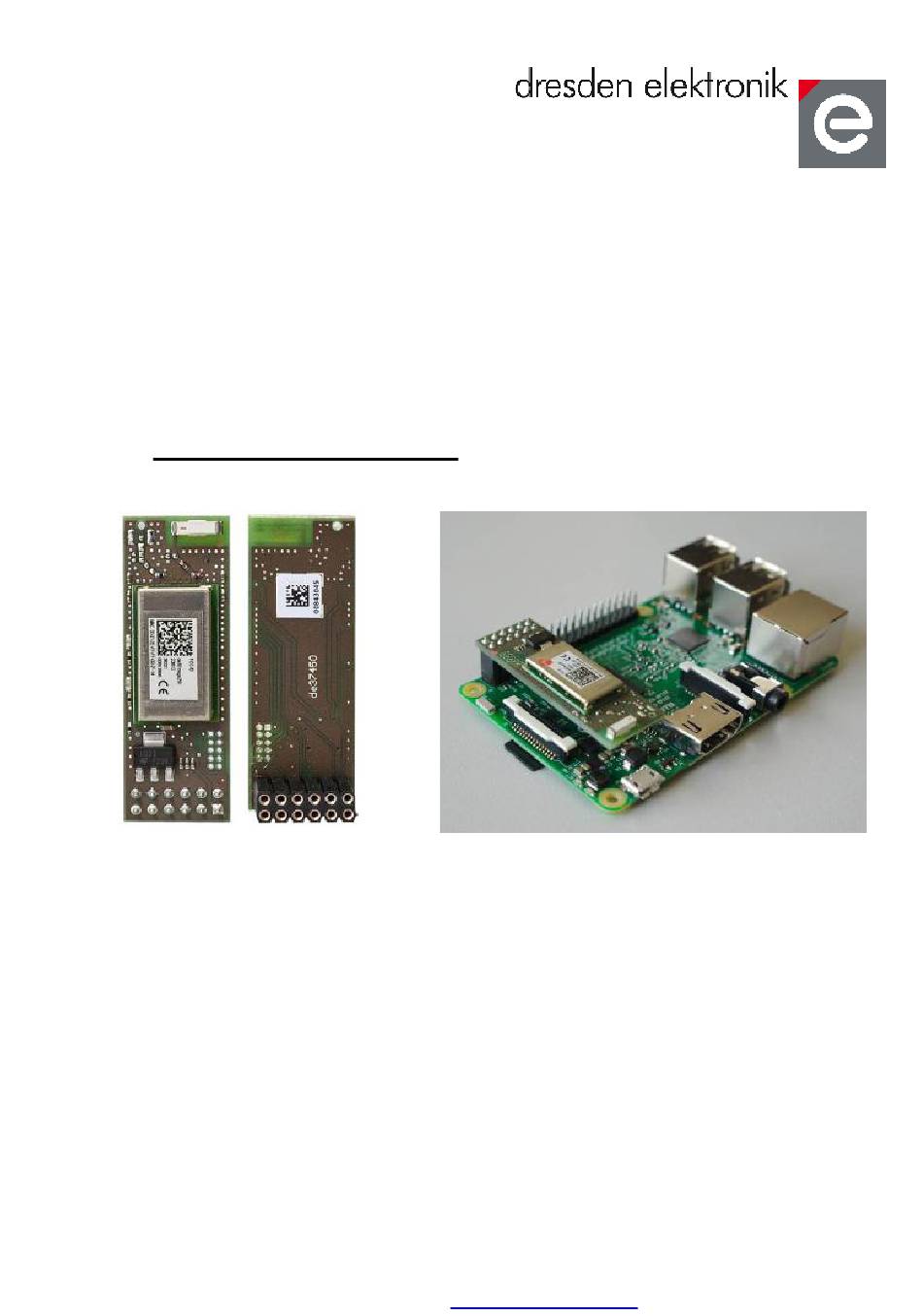

- Page 1 User Manual RaspBee Document Version V1.4 2017-04-25 PDF wurde mit pdfFactory Pro-Prüfversion erstellt. www.context-gmbh.de...
-
Page 2: Table Of Contents
Overview ......................... 6 Applications ........................6 Features .......................... 6 3.1. Short facts ......................6 3.2. How does the RaspBee work? ................7 Quick start ........................8 4.1. Content of delivery ....................8 4.2. Requirements ......................8 4.2.1. Hardware ....................9 4.2.2. - Page 3 User Manual Version 1.4 RaspBee ZigBee addon board 2017-04-25 15.3. Starter Kit Wireless Light Control................20 16. References ........................21 www.dresden-elektronik.de Page 3 of 22 PDF wurde mit pdfFactory Pro-Prüfversion erstellt. www.context-gmbh.de...
- Page 4 User Manual Version 1.4 RaspBee ZigBee addon board 2017-04-25 Document history Date Version Description 2013-07-22 Initial version 2013-09-09 Update of radio certification section due to successful passed certification Availability of basic variant included 2016-04-04 Including support of RPi2 and RPi3...
- Page 5 User Manual Version 1.4 RaspBee ZigBee addon board 2017-04-25 Abbreviations Abbreviation Description IEEE 802.15.4 Communication standard, applicable to low-rate Wireless Personal Area Networks (WPAN) Consumer Electronics ETSI European Telecommunications Standards Institute Federal Communications Commission GPIO Generals Purpose Input Output JTAG Joint Test Action Group, digital interface for debugging of embedded devices, also known as IEEE 1149.1 standard interface...
-
Page 6: Overview

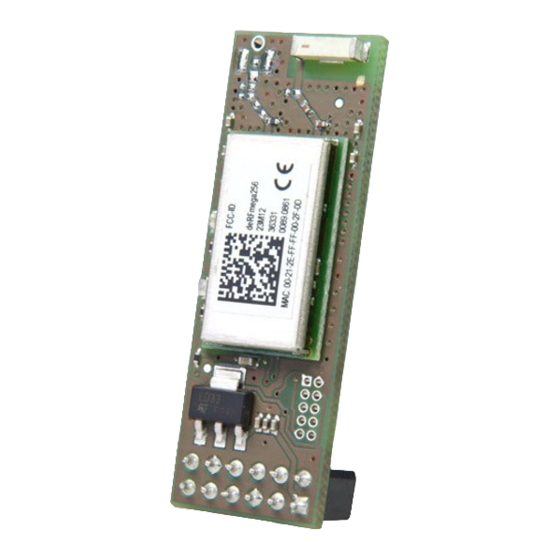

2017-04-25 1. Overview The RaspBee™ is a ZigBee addon board for the Raspberry Pi (RPi). By using the RaspBee the Raspberry Pi becomes a full functional wireless node which can be seamlessly integrated into ZigBee networks. This will enhance the application range of RPi with monitoring and controlling ZigBee networks. -
Page 7: How Does The Raspbee Work
The functional parts of the RaspBee are shown in a schematic overview in Figure 2. The RaspBee will be supplied by the RPi 5.0 V domain. Therefore the AC/DC supply must be sufficient to support the additional load. The most used AC/DC converters for RPi supply enough power to compensate the slightly increased current consumption of the RaspBee. -
Page 8: Quick Start
4.2. Requirements The RaspBee is designed to work on a Raspberry Pi. In general all actual available types of RPi will work with the RaspBee. However we recommend RPi type B, RPi2 and RPi3 with assembled Ethernet components. For full functionality the following additional components are required: www.dresden-elektronik.de... -
Page 9: Hardware
Please make sure that the Pi is switched off. 3. Connect the RaspBee to the RPi’s user header. Pin 1 of RaspBee (square marker) must be connected to Pin 2 of RPi header P1 at the board edge. Use the same header position for RPi2 or RPi3. -
Page 10: Software
2. Start the application from start menu Menu à Programming à deCONZ The application shall now connect to the RaspBee shield automatically and a blue node with address 0x0000 which represents the RaspBee coordinator appears. For details on the operation, refer to the deCONZ user manual [2]. Once running, deCONZ is also accessible via a Web application [3]. -
Page 11: Notes On Custom Firmware
5.4. Fuse setting The table below shows the recommended fuse byte settings for the RaspBee which the board also comes with in factory new condition. Please refer to the radio module user manual [4] for their description and alternative configurations. - Page 12 User Manual Version 1.4 RaspBee ZigBee addon board 2017-04-25 Bootloader during initial 200 ms after start Blinking (awaiting commands) firmware update Blinking no target application (invalid Blinking Firmware/empty FLASH) target application started depending application ZigBee firmware Idle mode (TRX OFF)
-
Page 13: Technical Data
For more details about these parameters, refer to individual datasheets of the components used. The given values are only valid for the RaspBee board. They may differ from the Raspberry Pi or other custom base boards. Check the appropriate documentations for the working and storage temperature of the whole system. - Page 14 User Manual Version 1.4 RaspBee ZigBee addon board 2017-04-25 Table 7: Electrical characteristics Electrical characteristics Value Descriptor Parameter Max Unit Supply voltage Output voltage Supply current =5.0 V 15.8 in_trxoff =5.0 V, TX_PWR=0x0 213.7 in_txon =5.0 V, TX_PWR=0x6 168.2 =5.0 V, TX_PWR=0xF 55.1...
-
Page 15: Mechanical Size
RaspBee ZigBee addon board 2017-04-25 8. Mechanical size 8.1. Dimensions The RaspBee board (Figure 4) has a length of 48.0 mm, a width of 16.5 mm and a height of 12.0 mm (including socket for RPi). Figure 4: Mechanical size 8.2. Housing The slim board size allows the usage of housing for the RPi. -
Page 16: Pin Assignment
Version 1.4 RaspBee ZigBee addon board 2017-04-25 9. Pin assignment This section lists all available signals and their function on the RaspBee. Note: The signal NC means Not Connected. Table 10: Signal pin description Signal pin description Radio module pin... -
Page 17: Hardware Modifications
3.3 V generated internally JTAG 10. Hardware modifications Besides the factory-default RaspBee configuration it is also possible to modify the hardware to enhance its functionality. 10.1. Assemble the service header The service interface provides the microcontroller programming interface of the radio module. -
Page 18: Using An External Antenna
Additionally the terminating resistor must be removed from the antenna port. Assemble a 22 pF coupling capacitor and a 10 k resistor in parallel directly next to the U.FL connector. The RaspBee has been tested and measured with the approved antenna(s) listed in Section 11.3. -
Page 19: Approved Antenna List
RaspBee ZigBee addon board 2017-04-25 If the RaspBee is incorporated into a product, the manufacturer must ensure compliance of the final product to the European harmonized EMC and low-voltage/safety standards. A Declaration of Conformity must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive. -
Page 20: Ordering Information
15. Related Products 15.1. Wireless electronic ballasts With the easy to integrate ZLL compliant wireless electronic ballasts by dresden elektronik a great number of lamps from the classic light bulb to the advanced multicolored LED matrix can be wirelessly controlled. There is a choice of four variations that are applied alternatively or in combination with conventional electronic ballasts. - Page 21 User Manual Version 1.4 RaspBee ZigBee addon board 2017-04-25 16. References [1] ZigBee Light Link, URL: http://www.zigbee.org/zigbee-products-2/ [2] User Manual deCONZ; URL: https://www.dresden-elektronik.de/funktechnik/service/downloads/documentation/ [3] Quick Start Guide Wireless Light Control, URL: https://www.dresden- elek- tronik.de/funktechnik/service/download/documentation/?L=1&eID=dam_frontend_push& docID=4621 [4] User Manual deRFmega256 radio modules; URL: http://www.dresden- elektronik.de/funktechnik/service/downloads/documentation/?eID=dam_frontend_push&...
- Page 22 This note is provided as-is and is subject to change without notice. Except to the extent prohibited by law, dresden elektronik ingenieurtechnik gmbh makes no express or implied warranty of any kind with regard to this guide, and specifically disclaims the implied warranties and conditions of merchantability and fitness for a particular purpose.
