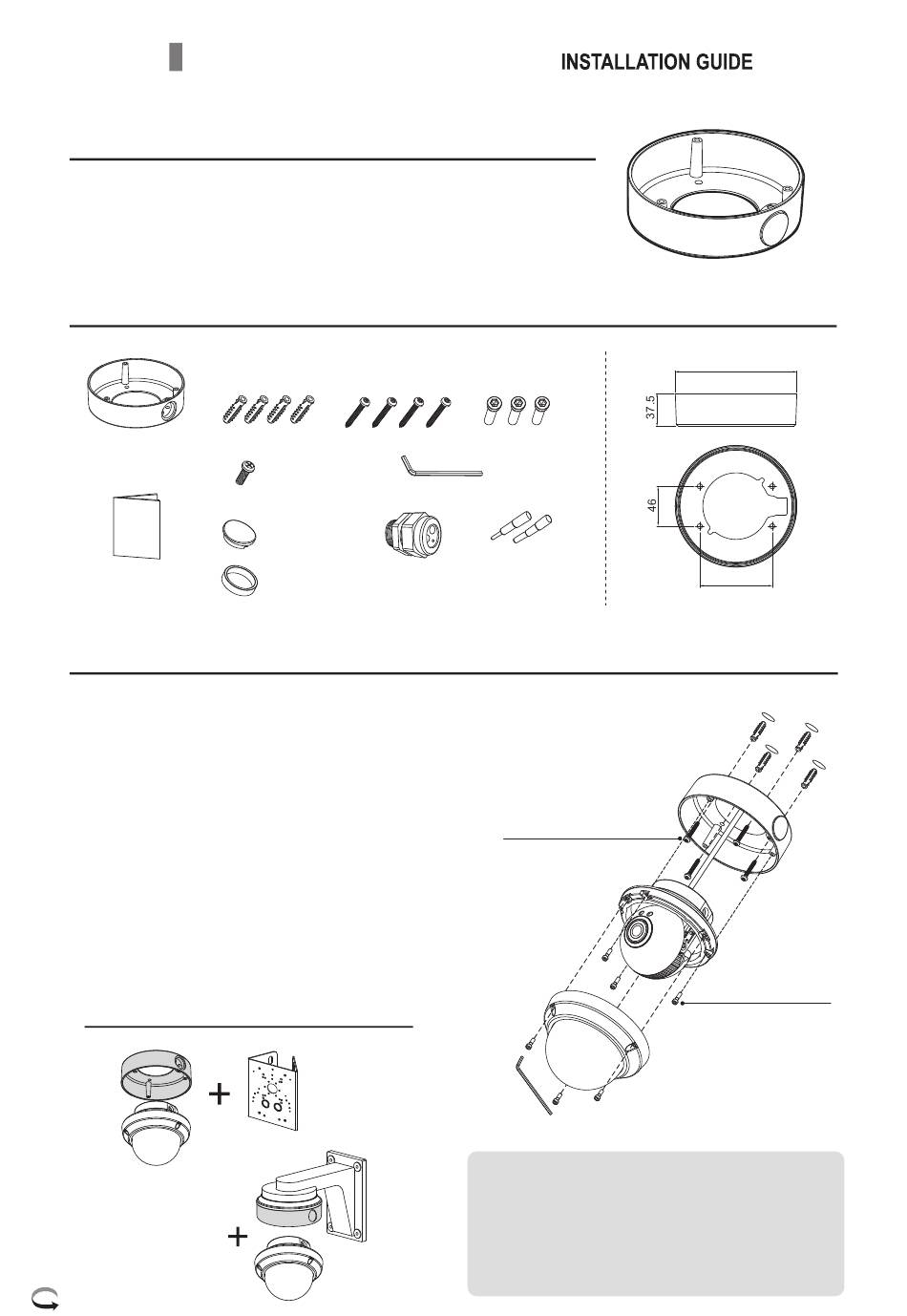

Ronix RSV-SA Installation Manual

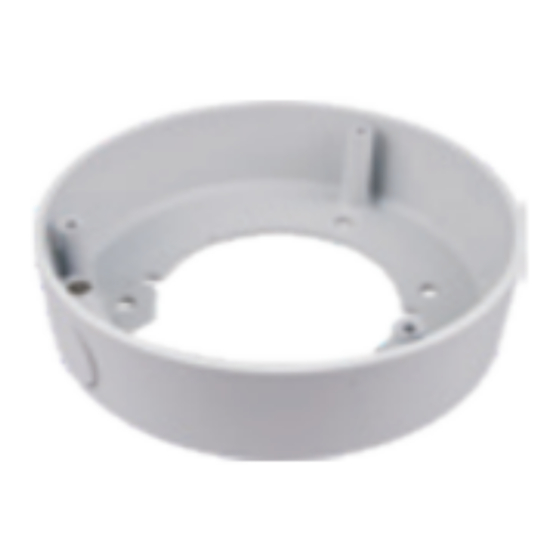

Surface Mount Adaptor
PRIOR to USE
Install the mount onto a strong structure such as a concrete, etc.
Use the supplied accessories when installing the mount to a structure,
make sure that all the screw parts are metallic.
Follow the mounting instructions and refer the application mounting
accessories.
PARTS SUPPLIED
Plastic Anchor
6x30mm (Q'ty:4)
Mount Adaptor
Instruction Guide
INSTALLATION
1. Locate the mounting template at the installation position and drill the ceiling or wall if needed.
2. Open the dome cover by loosening screws. Use the torque wrench supplied.
3. Place the surface mount on pre-drilled position and fix it through using mounting screws.
Assemble the cable pipe, otherwise tighten a pipe hole cap.
4. Route the power cable to the connecting place.
5. Affix the dome base unit to the surface mount
using the assembly screws(4x14mm).
Before fixing the dome base, make sure the
assembly holes should be aligned with
the surface mount assembly holes.
6. Set the camera's viewing angle and adjust
zoom&focus.
7. Put the dome cover to the dome base unit
and tighten the assembly screws.
APPLICATION
Wall mount bracket
(mounting on the wall)
Please Turn Over
Mounting Screw
M4x30mm (Q'ty:4)
Screw
PM 2.5x6mm
(Q'ty: 1)
Pipe hole Cap
(Q'ty: 1)
Pipe Spacer
Cable Gland
(Q'ty: 1)
Q'ty : 1
Pole mount adapter
(mounting on the
pole-like structure)
DIMENSION
Assembly Screw
4x14mm(Q'ty:3)
L-Wrench
3mm(Q'ty:1)
Gland hole plug
Ø4.5 (Q'ty:1)
Ø2.7 (Q'ty:1)
Mounting Screw (4x30mm)
Supplied in the dome unit
SPECIFICATION
Construction: Aluminum cast
Environment: Indoor/Outdoor for Vandalproof dome
Dimension: 140(W)x37.5(H)
Weight: 220g (0.49 lb)
(unit: mm)
Ø140
83.5
Assembly Screw
(4x14mm)
* The vandalproof dome is not
included in this package.
