Summary of Contents for Kedacom SVR2730
- Page 1 HD Lecture Recorder User Manual KEDACOM User Manual for HD Lecture Recorder SVR2730 (V01, March, 2018)
- Page 2 HD Lecture Recorder User Manual Trademark Kedacom™ and are trademarks of Suzhou Keda Technology Co., Ltd. in China and various other countries. All other trademarks mentioned in this document are the property of their respective holders. Suzhou Keda Technology Co., Ltd.
- Page 3 Suzhou Keda Technology Co., Ltd. is not responsible for printing or clerical errors. Target Audience Administrators and Operators of Video Surveillance Products Document Version Version 01 Applicable Models SVR2730 Related Document Quick Start Guide Convention Icon Convention Notes...
-
Page 4: Table Of Contents
HD Lecture Recorder User Manual Contents Product Brief ........................... 5 Specification ........................... 6 Installation ............................7 Environment ..........................7 Topology ..........................8 Installation Steps ........................8 3.3.1 Download and Install SVR Client ..................8 3.3.2 Login to SVR Client ......................8 3.3.3 Add SVR .......................... -
Page 5: Product Brief

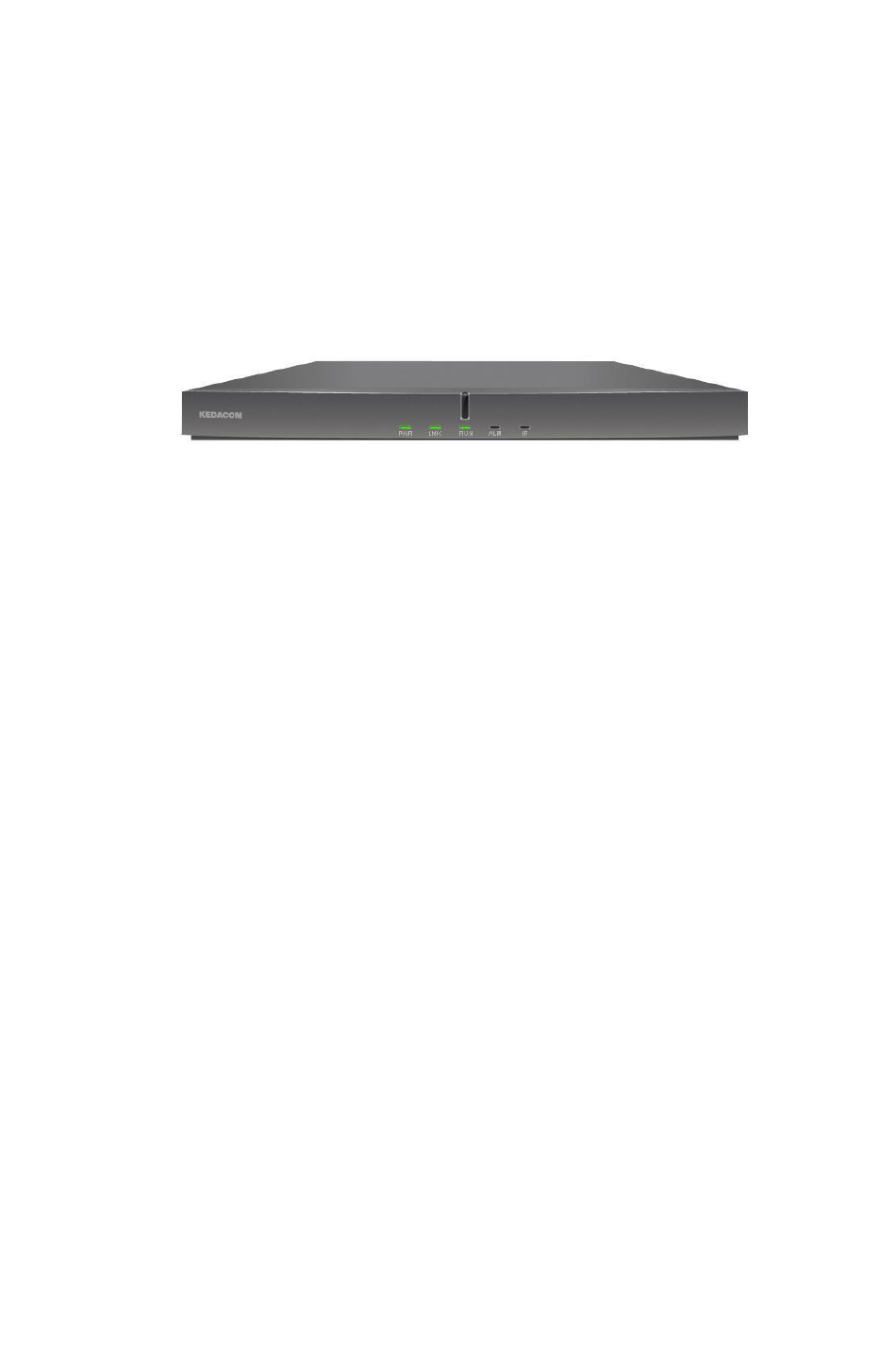

User Manual 1 Product Brief HD lecture recorder SVR2730 is a multimedia recording system for education industry and is applied especially to comprehensive digital classrooms, integrating and unifying the functions of audio matrix, video matrix, HD encoding and central control. Based on IP network, it synchronizes and groups the video- audio signal during lecturing and the dynamic screen signal of PC to record and broadcast live videos. -
Page 6: Specification
2 x SATA (1 x1 TB 2.5” HDD included) Control 2 x RS485; 8 x RS232 Power Supply 1 x power port Network Protocols Onvif, RTSP, KEDACOM Device Switch 1 x Rocker switch Main Processor Hisilicon Hi3536 Operating System Embedded... -
Page 7: Installation
3 Installation Environment Table 3-1 Place on the desk or the rack horizontally and make sure the carrier can Placing bear at least 10kg/8kg Normal working voltage: 100V~240V; Power Supply Frequency: 50Hz~60Hz; Current: 2A Temperature: -10°C~55°C (indoor); Relative humidity 10%RH~90%RH; Operating Condition Altitude: -60~5000m Temperature: -40°C~70°C (indoor);... -
Page 8: Topology
HD Lecture Recorder User Manual Topology Picture 3-1 Topology Installation Steps 3.3.1 Download and Install SVR Client Double-click the packet and install SVR client according to the installation wizard. 3.3.2 Login to SVR Client After installation, double-click the client icon and open SVR client. Picture 3-2 Login to SVR client... -
Page 9: Add Svr
HD Lecture Recorder User Manual Input username and password on the login interface, both of which are “admin123” by default. After login, the main interface is as Picture 3-3 shows. Picture 3-3 Main interface 3.3.3 Add SVR After logging in, right click “Device List” and select “Add Device”. Input Username (admin), Password (admin123) and Local Login Address (192.168.1.100 by default). - Page 10 HD Lecture Recorder User Manual Note: The camera IP address should be in the same network segment as that of the SVR so that it can be searched. 2. Login to the camera and make sure the camera has been registered to the IP address of the SVR and uncheck auto networking option of the camera to prevent it from being added by other platform.
-
Page 11: Go To Direct Interface
HD Lecture Recorder User Manual 3.3.5 Go to Direct Interface Select a device from the “Device List” and right click to select “Direct”. Picture 3-7 Direct interface Functions a. Main and Secondary Stream Main stream is the high resolution of the camera, usually HD; secondary stream is the low resolution of the camera, usually SD. -
Page 12: Go To Interact Interface
HD Lecture Recorder User Manual Picture 3-8 Settings of combined video b. Parameters on “Courseware” include Resolution, Frame Rate, Bit rate, Encoding Type, Complexity and Key Frame Interval. Default settings are shown in the picture: Picture 3-9 Settings of courseware 3.3.6 Go to Interact Interface Click “Interact”... - Page 13 HD Lecture Recorder User Manual Picture 3-10 Interact interface Click “Contacts” > Device List to add device manually or select device from “Recent Contacts” and call. Picture 3-11 Call interface The large window displays local view image and the small one displays the remote view image.
- Page 14 HD Lecture Recorder User Manual Picture 3-12 Interact interface Functions a. Main Stream There are 8 channels of video sources for option. Dual-Stream Dual-stream is optional. When checked, there are 8 channels of video sources for option. Audio There are 6 options of audio format. Suggest selecting AACLC_32K. Stop Interacting Click icon to hang up and stop interacting.
-
Page 15: General Information
HD Lecture Recorder User Manual 4 General Information 4.1 Device Info Display device name, IP address, online status, record status and interact status. Click “Direct” and “Interact” to enter the interfaces respectively and perform relative operations. You can make the device enter sleep mode and awake it. Picture 4-1 General info 4.2 Current Status Display utilization rates of online device CPU, storage and hard disk. -
Page 16: Resources
HD Lecture Recorder User Manual 5 Resources Picture 5-1 Resources Search Videos You can enter video start time and end time, course name and lecturer manually to search course videos. Each page can display max 20 records and others will skip to the next page. View Videos On the list of search result, select the needed video and click “View”... -
Page 17: Settings
HD Lecture Recorder User Manual 6 Settings Manage Camera Search Device and Add IPC 6.1.1 Select “Protocol” and click “Search”. On the “Search Device List”, select a device and double- click to open it. Enter the right “Authentication Username” and “Authentication Password”, and click “OK”... -
Page 18: Registration
HD Lecture Recorder User Manual Picture 6-3 Manual configuration and add IPC Registration Register to VMS 6.2.1 Go to Settings > Registration > VMS. Enter IPv4 address of VMS and register SVR to the VMS to get device UUID. Enter device password and click “Save” to finish registration. Picture 6-4 Register to VMS Note: Please refer to the User Manual of VMS for obtaining device UUID. -
Page 19: Register To Tracker
HD Lecture Recorder User Manual Picture 6-5 Register to MSS Register to Tracker 6.2.3 When it’s necessary to register to a tracker, select “Enable” and enter tracker IP and access port, and click “Save” to finish registration. Otherwise, select “Disable”. Picture 6-6 Register to tracker Note: The tracker access port should be the same as that of the camera. -
Page 20: Video Matrix
HD Lecture Recorder User Manual Picture 6-7 Scenario setting Video Matrix 6.3.1 There are 2 channels of video output. User can select external video matrix device according to the connection interface, options including DVI IN1, DVI IN2, Combined Video, Remote Main Stream and Remote Dual-Stream. -
Page 21: Direction Command
HD Lecture Recorder User Manual Picture 6-9 Audio matrix setting Advanced audio setting: Audio Algorithm, Current Mixing Device, enable/ disable Volume Auto Adjustment, enable/ disable Noise Reduction, enable/ disable Howling Suppression, enable/ disable AEC Echo Cancellation and Balance Mode. Picture 6-10 Advanced audio setting Direction Command 6.3.3 There are 2 areas for auto direct, Active Area and Optional Area. - Page 22 HD Lecture Recorder User Manual Picture 6-11 Direction command setting Sensitivity: Configure adjustment trigger threshold. Stay for: Auto direct duration after being triggered. Priority: When several auto direct commands are triggered at the same time, the larger the value is, the more prior the command will be. Trigger After: It is the interval for the SVR to carry out the command after it detects the trigger condition is met.
-
Page 23: Central Device
HD Lecture Recorder User Manual Central Device 6.3.4 Central Monitor: Connect central control panel to the RS485 or RS232 port of the device so as to realize the control linkage of 34 commands such as SVR recording, view window switch and etc. Configurable parameters: Serial Monitor, Alias, Serial Setting, Check Bit, Stop Bit and Data Bit. -
Page 24: Dhcp
HD Lecture Recorder User Manual Picture 6-15 NIC setting – LAN port 1 Picture 6-16 NIC setting – LAN port 2 Note: User can enable max 3 IP addresses. DHCP 6.4.2 DHCP service of LAN port 2 is enabled by default. -
Page 25: Static Route
HD Lecture Recorder User Manual Picture 6-17 DHCP setting Static Route 6.4.3 Click “Add” and enter “Destination IP”, “Subnet Mask” and “Gateway”. Click “OK” to finish adding a static route. Picture 6-18 Static routes Note: User can add multiple static routes. -
Page 26: Recording
HD Lecture Recorder User Manual Recording Video Record Setting: Configure hard disk storage strategy. When the available storage reaches a threshold, the earliest video record will be covered. Video Partition Strategy: Default value is 2,000MB. When the video size is over 2,000MB, it will partition automatically and generate a new record. -
Page 27: Time Setting
HD Lecture Recorder User Manual Time Setting 6.6.3 Select device time zone, change date and time, synchronize time with PC, enable/ disable auto correction, select correction method (by access protocol or NTP clock synchronization, which takes effect when “Auto Correction” is checked). Picture 6-21 Time setting Network Test 6.6.4...
