- Page 1 P series X series C series U series L series Abyss Professional Dive Light Polarion Abyss The power of the SUN... Underwater !

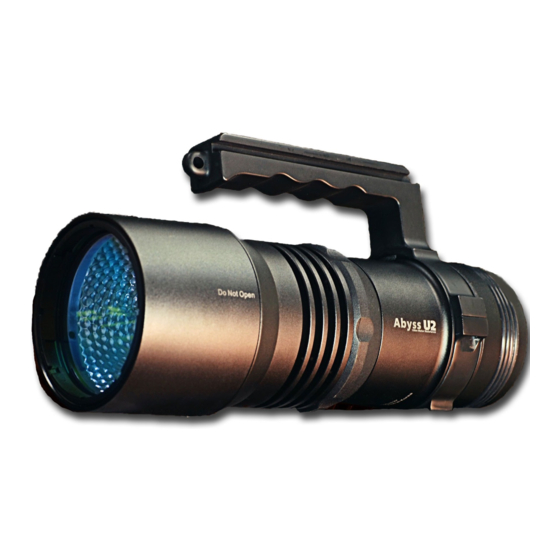

- Page 2 Portable Searchlight POLARION Abyss Professional Dive Light Polarion The Polarion Abyss™ is an underwater HID searchlight capable of operating at depths of up to 100 m (330 ft). It is the perfect solution for both recreational and professional diving applications.
- Page 3 P series X series C series U series L series Rotary Switch Front Bezel Tailcap Optional Filter Battery Pack AC Charger Power Plug...
-
Page 4: Optional Equipment
POLARION Portable Searchlight Basic ▶ ▶ ▶ Main body Battery Pack AC Charger ▶ ▶ ▶ ▶ Power Plug User Manual Shoulder Strap Soft case Optional ▶ Extra Battery Pack ▶ Extra Lamp Equipment ▶ Optional Mounting ▶ Filters ▶... -
Page 5: Specifications
P series X series C series U series L series Specifications Item Description Model Abyss D / Abyss S Lamp Type Metal Halide HID Lamp Power Max. Luminous Flux 3400lm Lamp Life Up to 2500 hrs Main Body Color Temperature 4300K or 5500K (Specify when ordering) Illumination Distance Up to 1.2km (Abyss S) - Page 6 POLARION Portable Searchlight Caution Your Polarion searchlight is a precision made instrument for specialized applications, so please be aware of these cautionary statements. The light becomes very hot during operation, so please be careful when handling the light. Be sure not to touch the hot surfaces.
-
Page 7: Operation
P series X series C series U series L series Operation ■ Turning the light On/Off Be sure to fully charge the battery before initial use. Turn the rotary switch in either direction to operate the light. The battery charge level is displayed through the tail cap for 5 seconds after the light is turned on. -
Page 8: Water Resistance
POLARION Portable Searchlight Water Resistance The Polarion Abyss™ uses Gaskets and O-rings in critical areas for optimal performance underwater. All units are tested before they leave the factory, but please follow these guide lines for proper maintenance. ❶ Do not disassemble the light. This can affect water resistance significantly. -
Page 9: Changing The Battery Pack
X series C series U series L series Changing the Battery Pack Your Polarion searchlight comes with a high ❶ performance Li-ion rechargeable battery pack. Under ideal conditions, it will have a life cycle of approximately 500 charges. When the battery performance is significantly reduced, you should get a new battery. -
Page 10: Optional Filters
POLARION Portable Searchlight Optional Filters There are various filters available for your specific needs. Please contact your supplier for more information. ■ Optional Filters Amber Filter (Fog) - The yellow spectrum helps you see through thick fog and smoke. Diffusion Filter - Useful when you need a very even, broad light source. -
Page 11: Troubleshooting
■ While using the light on land, it turns off after 20~30 mins. Because the Polarion Abyss™ is designed for underwater use, prolonged use on land can cause overheating. When this occurs, it simply triggers the thermal protection circuit and will shut down. - Page 12 POLARION Professional Dive Light Polarion Abyss...
