- Page 1 ACCESS CONTROL INSTALLATION MANUAL FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.ba info@ip-integra.com Tel. +387 33 922 890...
-
Page 2: Table Of Contents
Connecting the Reader and the door lock to the Access Control module ............ 11 Additional notes about DC powered Electric Locks ....................15 IMPORTANT NOTE: INSTALLATION OF FREUND INTEGRA ACCESS CONTROL SOLUTION MUST BE DONE BY AN AUTHORISED ELECTRICAL INSTALLER! -
Page 3: Getting Started
FREUND MANUAL 1. Getting Started In this installation guide, we will explain how to install and configure Freund IP-INTEGRA Access Control Units and Freund Access Control Readers. This Installation Guide explains how to install and configure FREUND IP-INTEGRA Access Control Units and FREUND ACC-Readers. -
Page 4: Additional Resources
FREUND MANUAL 2. Additional resources For more information, refer to our web site www.ip-integra.com where you can find product Datasheets and User Manuals. 3. Prior to installation Prior to installing IP-INTEGRA ACC hardware, it is assumed that you have performed a customer site survey and have determined the following: •... -
Page 5: Components
FREUND MANUAL 4. Components Basic units FE-MF-WR FE-MF-TWR 13.56 MHz RFID card reader 13.56 MHz RFID card reader with keypad FE-ACC-INT2D FE-ACC-INT4D IP/TCP (POE+) based 2-door IP-Integra access IP/TCP (POE+) based 4-door IP-Integra access control module control module License Cluster license USB... -

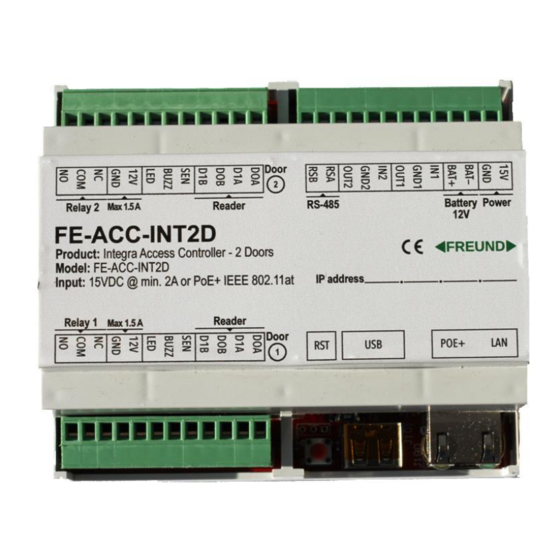

Page 6: Pin Assignment For The Fe-Acc-Int2D And Fe-Acc-Int4D
FREUND MANUAL 5. Pin assignment for the FE-ACC-INT2D and FE-ACC-INT4D There are two types of control units FE-ACC-INT2D and FE-ACC-INT4D. INT2D can have two doors connected to it while INT4D can have four doors connected. - Page 7 FREUND MANUAL There are three types of pins which are described below. POE+ Name Function Reset button for the whole system Insert USB for cluster license POE – used for power supply and connecting to network, through PoE switch POE+ LAN –...
- Page 8 FREUND MANUAL Relay 1 1.5A Reader Door Name Function Data pin 0 for first reader Data pin 1 for first reader Data pin 0 for second reader/pin for push button Data pin 1 for second reader Sensor pin BUZZ Buzzer pin for reader...
-
Page 9: Connecting The Access Control Module To The Power Supply And Network
FREUND MANUAL 6. Connecting the Access Control module to the power supply and network There are 2 types of connections shown in the pictures bellow. Battery power supplies the module in case there is a power shortage. Battery is charged through PoE or external power supply. -
Page 10: Battery Details
FREUND MANUAL Connecting the PoE and external power supply will not make any problems for module. For external power supply, we recommend following characteristics described in table below. External power supply attributes Voltage input 85 ~ 264 VAC, 120 ~370 VDC... -
Page 11: Connecting The Reader And The Door Lock To The Access Control Module
FREUND MANUAL 8. Connecting the Reader and the door lock to the Access Control module Reader wires are described in table below. Color Name Function DC 9-24V Power supply (+) Black Power supply (-) Green Data White Data Blue LED indicators on reader... - Page 12 FREUND MANUAL 2. Connecting two readers from both sides and one door lock. 3. Connecting reader from one side and push button from oposite side which is connected to D0B and GND. For every type of connection, the diode needs to be connected between NO and GND pin, and...
- Page 13 FREUND MANUAL Using the OSDP protocol To use the OSDP protocol, we need to connect the reader to ACC module as shown in the pictures below. In case we are using multiple readers, the way to connect them is as following:...
- Page 14 FREUND MANUAL On the back side of the reader, the DIP switches need to be set up correctly to use the OSDP.
-
Page 15: Additional Notes About Dc Powered Electric Locks
FREUND MANUAL 9. Additional notes about DC powered Electric Locks Some electric locks do not come with Factory installed protection for “kickback voltage” that can occur when a lock is powered down. If the lock you are using has no internal protection, we have included an IN4004 Diode for DC powered locks.
