Installation Guide

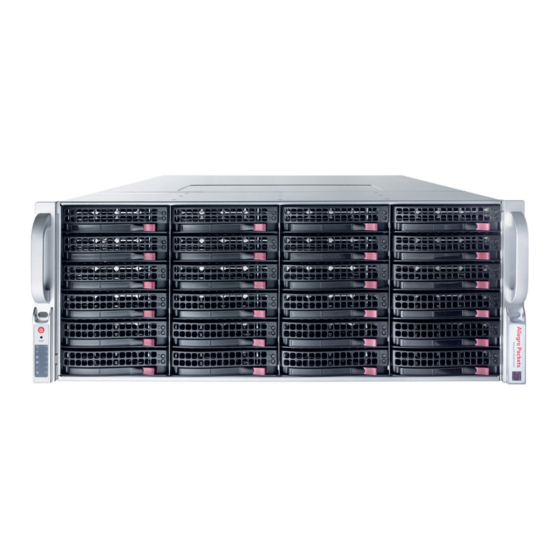

Allegro Network Multimeter 1500, 3500 and 5500
Default Settings
LAN:
DHCP client
Wi-Fi SSID:
allegro-mm-(see top label)
Wi-Fi URL:
https://allegro/ or
https://192.168.4.1
Overview
The guide contains the following sections:
1. Package Contents
1. Package Contents
The Allegro Network Multimeter package contains the following items:
1 x Allegro Network Multimeter 1500, 3500 or
5500 incl. redundant power supply unit
2 x Power cable
1 x Rack rail set
1 x Wi-Fi USB adapter (already pre-installed)
Wi-Fi WPA2 key:
Web interface user name:
Web interface password:
1 x Screw set for HDDs
1 x Screw set for rack rail set
36 x 3.5" HDD mounting frame
1 x Installation guide
Allegro-MM
admin
allegro
Advertisement
Table of Contents
Related Manuals for Allegro Packets Network Multimeter 1500
Summary of Contents for Allegro Packets Network Multimeter 1500
- Page 1 5. Configuration Reset 1. Package Contents The Allegro Network Multimeter package contains the following items: 1 x Allegro Network Multimeter 1500, 3500 or 1 x Screw set for HDDs 5500 incl. redundant power supply unit 1 x Screw set for rack rail set 2 x Power cable 36 x 3.5“...
- Page 2 2. Hardware Deployment 2.1. Management Access (Control Plane) Step 1: Connect power supply Step 2: Connect management LAN Alternative: Insert Wi-Fi adapter to any of the USB ports Power supply MGMT WLAN MGMT LAN By default, for LAN, the device will query an IP address via DHCP dynamically from your network. By default, for Wi-Fi, the device will open an Access Point so smartphones, tablets, or laptops can connect to the Access Point and access the web interface.
- Page 3 Default configuration is bridge mode, thus running as an inline device. The link mode can be configured via a web interface (menu ‘Settings‘ -> ‘Global settings’): 2.3 Installing your own HDDs The Allegro x500 can be used with up to 36 x 3.5“ SATA/SAS HDDs. These must be installed in the mounting frame.
- Page 4 ‘Manual’ link in the menu. Getting Help: If you have any questions regarding the Allegro Network Multimeter, please feel free to contact us: allegro-packet.com/support. Allegro Packets GmbH | Internet allegro-packets.com | Installation Guide – Allegro Network Multimeter x500 © Rev 2020-09 All rights reserved...
