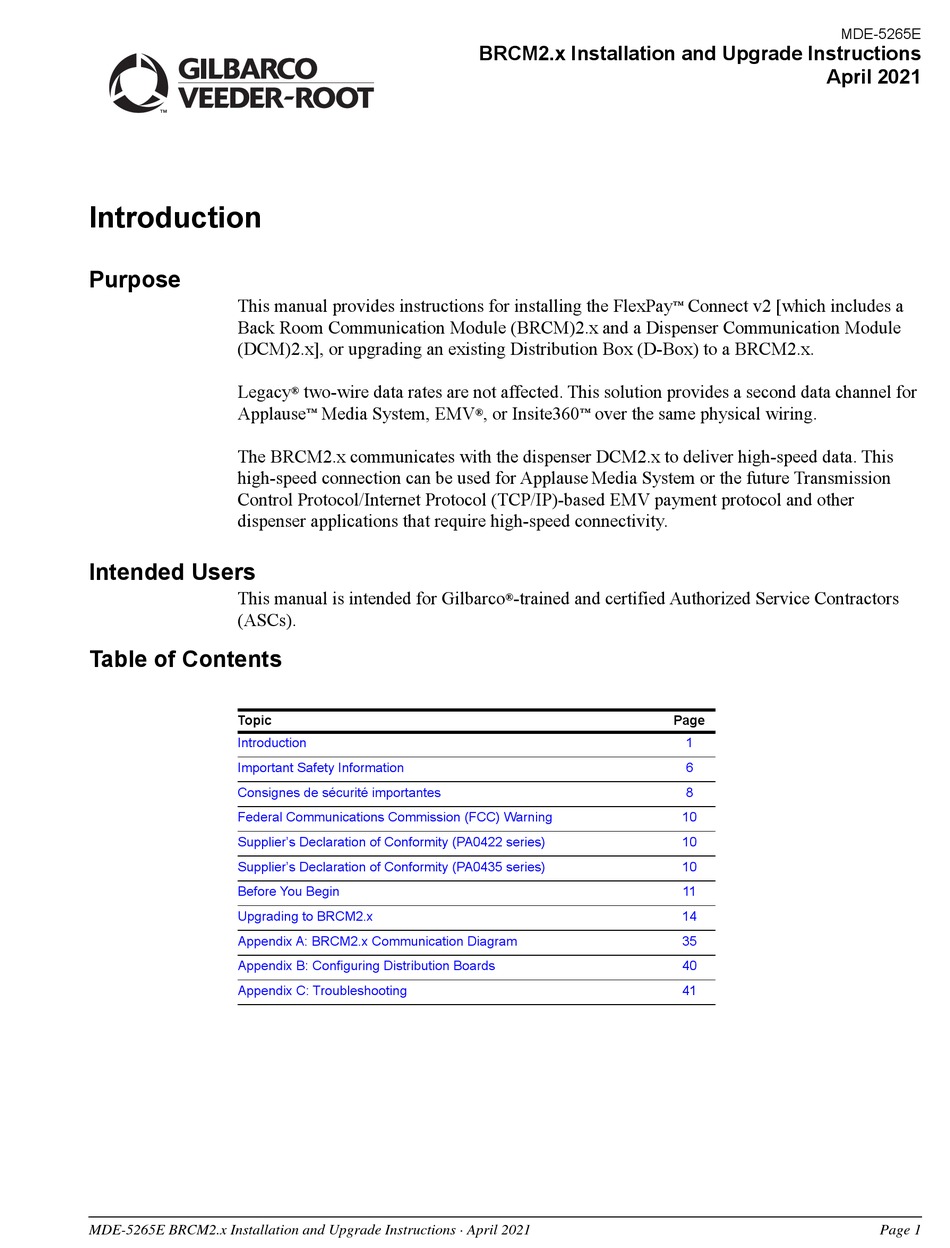

Introduction
Purpose
This manual provides instructions for installing the FlexPay
Back Room Communication Module (BRCM)2.x and a Dispenser Communication Module
(DCM)2.x], or upgrading an existing Distribution Box (D-Box) to a BRCM2.x.
Legacy
Applause
The BRCM2.x communicates with the dispenser DCM2.x to deliver high-speed data. This 
high-speed connection can be used for Applause Media System or the future Transmission
Control Protocol/Internet Protocol (TCP/IP)-based EMV payment protocol and other
dispenser applications that require high-speed connectivity.
Intended Users
This manual is intended for Gilbarco
(ASCs).
Table of Contents
Topic
Introduction
Important Safety Information
Consignes de sécurité importantes
Federal Communications Commission (FCC) Warning
Supplier's Declaration of Conformity (PA0422 series)
Supplier's Declaration of Conformity (PA0435 series)
Before You Begin
Upgrading to BRCM2.x
Appendix A: BRCM2.x Communication Diagram
Appendix B: Configuring Distribution Boards
Appendix C: Troubleshooting
MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021
two-wire data rates are not affected. This solution provides a second data channel for
®
Media System, EMV
BRCM2.x Installation and Upgrade Instructions
, or Insite360
over the same physical wiring.
®
-trained and certified Authorized Service Contractors
®
MDE-5265E
April 2021
Connect v2 [which includes a
Page
1
6
8
10
10
10
11
14
35
40
41
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRCM2.X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GILBARCO VEEDER-ROOT BRCM2.X

  • Page 1 ™ ® ™ The BRCM2.x communicates with the dispenser DCM2.x to deliver high-speed data. This  high-speed connection can be used for Applause Media System or the future Transmission Control Protocol/Internet Protocol (TCP/IP)-based EMV payment protocol and other dispenser applications that require high-speed connectivity.
  • Page 2: Required Tools

    NEC section 514.11 as it has a clearly identified switch inside the BRCM2.x to disconnect all two-wire circuits. The BRCM2.x has a provision for a locking hasp, to provide a lockout/tagout function.
  • Page 3: Theory Of Operation

    Figure 4 page If the upgraded D-Box or factory-shipped BRCM2.x ends in “12” or “22”, they include  two-wire distribution boards, allowing the communication to the dispenser/pump(s) to occur over the current loop(s). The lid portion of the BRCM2.x assembly contains the high-speed signal source that is merged with the dispenser/pump or CRIND current loop.
  • Page 4: Related Documents

    CRINDs. In this case, there is an external current source [such as a Forecourt Communications Interface (FCI) box] for each pump and CRIND. The pump wiring passes through a BRCM2.x model ending with 02 to add the high-speed signal.
  • Page 5: Abbreviations And Acronyms

    Printed Circuit Assembly Point of Sale Secure Card Reader SSoM Secure Systems on Module Submersible Turbine Pump Technical Assistance Center TCP/IP Transmission Control Protocol/Internet Protocol TRIND Transmitter/Receiver In Dispenser MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 5...
  • Page 6: Important Safety Information

    • Use of safety tape, cones or barricades at the affected unit(s) warnings do not apply to DEF fluid lines. • A total electrical shut-off of the affected unit(s) Page 6 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 7  regulations for these requirements. Subpart S of 29 CFR Part 1910 - Electrical Hazards, 29 CFR Part 1910.333 contains specific Lockout/Tagout provision for electrical hazards. MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 7...
  • Page 8: Consignes De Sécurité Importantes

    • la coupure totale de l’énergie électrique des unités affectées déversements de carburant provoquent des vapeurs. Même le remplissage du réservoir des clients provoquera des vapeurs potentiellement dangereuses à proximité du distributeur ou de l’îlot. Page 8 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 9 Veuillez-vous référer à votre municipalité, aux risques électriques. normes provinciales ou fédérales pour connaitre leurs diverses réglementations en vigueur sur le sujet MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 9...
  • Page 10 Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: BRCM2.64 PA0435 Responsible Party - U.S. Contact Information Gilbarco Inc. 7300 West Friendly Avenue Greensboro, North Carolina, USA 27410-6200 1-336-547-5000. Page 10 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 11: Before You Begin

    Inform the manager that the power to the D-Box will be disconnected and communication to the forecourt will be disrupted while installing BRCM2.x. Customers will not be able to purchase fuel, but they can still purchase merchandise in the store.
  • Page 12: Mounting Requirement

    After mounting, each fastener must be able to withstand a minimum of a 30-pound shear force and a 30-pound pull force. Figure 5: Fasteners for Mounting   Page 12 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 13: Model Number Breakdown

    PA0435200002 International A/C Supply, HCM with FWB only Mount PA0435 on the wall. Remove the cover and proceed to “New Installation with D-Box Boards (For PA0435 Models)” page MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 13...
  • Page 14 Remove the tray assembly. Mount the BRCM2.x on the wall and route the conduit and wiring to the knock-outs located on the bottom of the D-Box chassis.  Note: This is based on the site-configuration-specific BRCM2.x connections (For more information, refer to “Appendix A: BRCM2.x Communication Diagram”...
  • Page 15 Upgrading to BRCM2.x Based on the BRCM2.x connections, connect the field wiring to the 8-pin connectors supplied. These mount to the bottom row of connectors on the field wiring board. These form a  one-to-one correspondence to the 9-pin connections made to the D-Box boards.
  • Page 16 Lift the lid assembly off the tab panel and close the completed assembly. Connect the RJ-45 connector from the Applause Media System Server or other  high-speed data source. Page 16 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 17 To perform new installation with D-Box boards, proceed as follows: Remove the single screw securing the lid of the BRCM2.x. Mount the BRCM2.x on the wall and route the conduit and wiring to the knockouts located on the bottom of the D-Box chassis.
  • Page 18 Connect the RJ-45 connector from the Applause Media System Server or other high-speed data source. Connect the AC power cable again. The unit is now ready for use. Page 18 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 19 Remove the hasp panel from the PA04222000202/202B/002B and transfer it to the existing  D-Box. Mount it with the flat surface facing towards you. Discard the empty chassis. Remove the D-Box tray. MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 19...
  • Page 20 Use the included 9-pin to 9-pin Cable (M15247A001) to connect the field wiring board to the D-Box boards. Figure 13: Connecting Field Wiring Boards to D-Box Boards Connection to Field Wiring Boards Page 20 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 21 Note: The CRIND connection must mate directly to D-Box board. Move the field wiring tray into the existing D-Box on the wall, tilting it outward to connect the 8-pin field wiring connectors. MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 21...
  • Page 22 Connect the RJ-45 connector from the Applause Media System Server or other high-speed data source. Check with the customer to confirm specific connectivity requirements; otherwise, any available port may be used. Page 22 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 23: Connecting Field Wiring

    M14881A002 PCA Field Wiring Board  (see Figure 18 page 24). Figure 17: Lid Assembly Open Note: This figure is an example only. MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 23...
  • Page 24 To First D-Box Board,  Talking CRIND Talking Pump To CRINDs in To Pumps in Dispensers 1-8 Dispensers 1-8 Note: The CRIND connection must mate directly to the D-Box board. Page 24 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 25 Note: If the unit does not power up, ensure that the power switch on the inside lid is in the ON position. Figure 21: Connecting AC Power Output Cord into Lid AC Power Output Cord Power Switch MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 25...
  • Page 26 Verify that Communication (COMM) LEDs are blinking on the D-Box boards. This indicates that the units on the forecourt are online with a current loop. Figure 23: COMM LEDs Blinking on D-Box Board Page 26 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 27 CRIND Data Data Wiring Trough to Forecourt Wiring Trough to Forecourt (ii) New Installation Previous Installation Note: It is not possible to configure PA0435 models of BRCM2 in Pass-through mode. MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 27...
  • Page 28 25) has been introduced in the BRCM 2.x to enhance security. The Security Cover covers unused ports on the BRCM2.x. The design of the Security Cover is not backward compatible or field replaceable but can be adjusted in the field based on the number of Ethernet ports being used.
  • Page 29 Upgrading to BRCM2.x Figure 27: Front View of the BRCM2.x with Security Cover Figure 28 Figure 29 page 30 show different configurations of a Security Cover. Figure 28: Security Cover with Two Open Ports Two Open Ports for use, remaining ports covered MDE-5265E BRCM2.x Installation and Upgrade Instructions ·...
  • Page 30 Upgrading to BRCM2.x Figure 29: Security Cover with Three Open Ports Three Open Ports for use, remaining ports covered Page 30 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 31: Completing Installation

    Not Used Figure 31: LAN Cable Connected to BRCM2.x Note: The lid of the BRCM2.x, when installed, protrudes from the wall about three inches more than the existing D-Box; you may use a right-angle RJ-45 connector on the CAT5 cable to reduce the protrusion of the cable. Ensure that you allow additional clearance from the wall in the back room or below the counter.
  • Page 32 DCM3, these jumpers can be removed to prevent the high speed from going to these dispensers. Table 1: Jumper Selection for Connection to POS For RS-422 to POS For Two-wire to POS JP_POS_A A-RS422 position B-Two-wire position JP_POS_B A-RS422 position B-Two-wire position Page 32 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 34 Figure 34: Connecting LAN Cable into RJ-45 Jack RJ-45 Jack Installing BRCM2.x or upgrading an existing D-Box to a BRCM2.x is now complete. Note: For additional RJ-45 ports, an Ethernet switch might be required. NETGEAR 5-PORT GIGABIT ETHERNET SMART MANAGED PLUS SWITCH (GS305E) or equivalent is recommended for use.
  • Page 40 JP1C -A (35 mA) JP POSB- -A JP24B-B 45 mA JP1C Open (45 mA) JP24A and JP24B are used to select if high speed goes to both halves of the board. Page 40 MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
  • Page 41: Appendix C: Troubleshooting

    . The High-Speed Active LED indicates connection to at least one Figure 40 dispenser. Verify the high-speed connection for each dispenser. Figure 40:Verifying LEDs (PA0422 Series) High-Speed Active LEDs Figure 41: :Verifying LEDs (PA0435 Series) High-Speed Active Power MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021 Page 41...
  • Page 42 © 2021 Gilbarco Inc. 7300 West Friendly Avenue · Post Office Box 22087 Greensboro, North Carolina 27420 Phone (336) 547-5000 · http://www.gilbarco.com · Printed in the U.S.A. MDE-5265E BRCM2.x Installation and Upgrade Instructions · April 2021...
