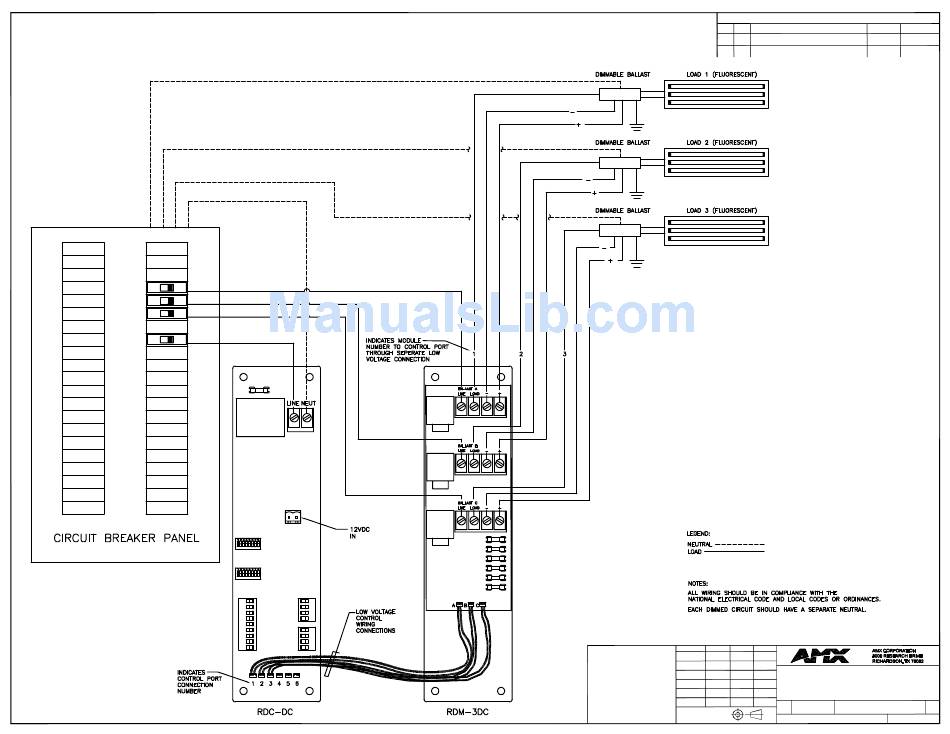

LIGHTING MODULE WIRING
RDM-3DC
TRIPLE DC MODULE
1920 W (x3)
SIZE
SCALE:
DWG. NO.
REV.
NONE
LM-3DC-1
D
A
LM-3DC-1
SHEET
1 OF 1
