Spider-81 Random Test Quick Start Guide
Start Up

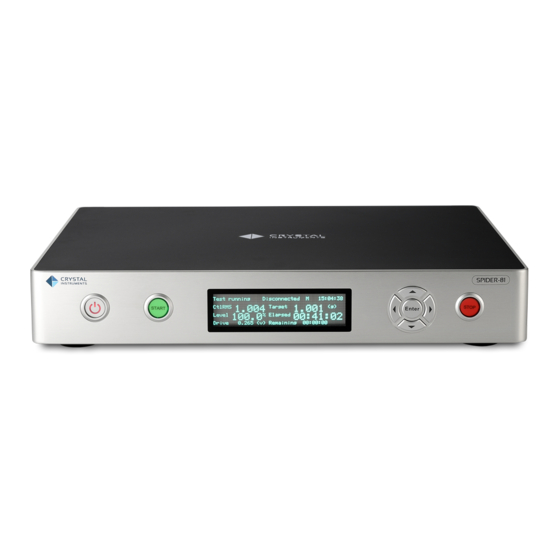

Power button is on the left side of the front panel of the Spider-81.
-
Press the power button.
-
Use an Ethernet cable to connect the Spider-81 to a PC running the EDM software.
Start EDM Software
-
Click on Random to create a new random test.
Spider Configuration
-
Click Tools->Spider Configuration
-
On the next screen, click Create a new Spider System.
-
Select one or more detected Spider module(s) to create a new system.
Create A New Test
-
Press New Test button in the upper left to start creating a new test.
-
Click on VCS tab to create a VCS test.
-
Click on Random to create a random test.
-
Select Spider System to be involved in this new test and press Finish to proceed to a new test window.
2370 Owen Street
Santa Clara, CA 95054
www.go-ci.com
Page 1 of 2
