Barth lococube PeopleCounter PC-10 Manual

®
lococube®
BAR H
PeopleCounter PC-10
Elektronik GmbH
lococube®
PeopleCounter PC-10
MANUAL (EN)
TABLE OF CONTENT
SAFETY INSTRUCTIONS �������������������������������������������������1
DESTINATED USE �������������������������������������������������������������1
DISCLAIMER ���������������������������������������������������������������������1
1 Product Features ���������������������������������������������������2
2 Get Started �������������������������������������������������������������2
3 Get Running �����������������������������������������������������������2
4 Get Support ������������������������������������������������������������3
5 Appendix �����������������������������������������������������������������3
5.1 Specifications ..........................................................3
5.1.1 General ....................................................................3
5.1.2 Power supply ...........................................................3
5.1.3 Interfaces .................................................................3
5.1.4 Security Features ......................................................3
5.1.5 Program And Data Memory .....................................4
5.1.6 Electrical Connection ...............................................4
5.1.7 Electromagnetic Compatibility (Emc) ......................4
5.1.8 Environmental Conditions ........................................4
5.1.9 Weight And Dimensions ...........................................4
5.1.10 Certifications & Approvals .......................................4
5.1.11 Ordering information ...............................................4
5.2 Disposal ...................................................................4
5.3 Conformity Declaration ............................................4
© 2020 BARTH Elektronik GmbH | Im Depot 1-3 | D-49838 Lengerich | www.barth-elektronik.de | info@barth-elektronik.de
® BARTH and lococube are registered trademarks of BARTH Elektronik GmbH. All rights reserved to make changes without prior notice.
MANUAL
(EN)

SAFETY INSTRUCTIONS

This manual contains notices which you should observe
to ensure your own personal safety, as well as to protect
the product and the connected equipment. These notices
are highlighted in the manual by a warning symbol and are
marked as follows according to the level of danger:
Only qualified personnel should be
allowed to install and work on this
equipment� Qualified persons are
defined as persons who are authorized
to commission, to ground and to tag
circuits, equipment and systems in
accordance with established safety
practices and standards�
Take care to avoid capsizing!
This can cause harmful injury to children
and adults!
Turn off the power supply before
performing any wiring operations!
Short circuits can be harmful, critical and
can cause explosions and serious burns!
Please read this manual carefully and
observe all safety instructions!

DESTINATED USE

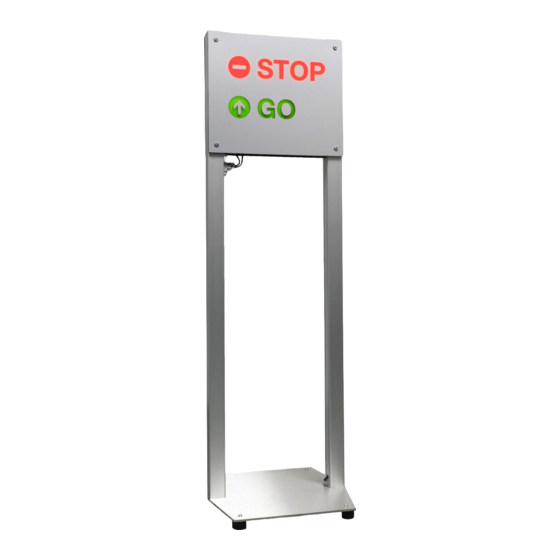

The People Counter PC-10 is designed for ‚Social
Distancing' applications, counting and limiting the
number of people in a room using a simple traffic light
system combined with a buzzer�

DISCLAIMER

BARTH assumes no liability for usage and functiona-
®
lity of the PeopleCounter PC-10 in case of disregarding
this manual� The strict accordance of this manual is
important since the installation methods, peripheral
connections, usage and maintenance can not be cont-
rolled by BARTH � Therefore BARTH
®
lity for any claim�
Page: 1/4
Document: 9021-0035-A
Date: 08.06.2020
Revision: A
assumes no liabi-
®
